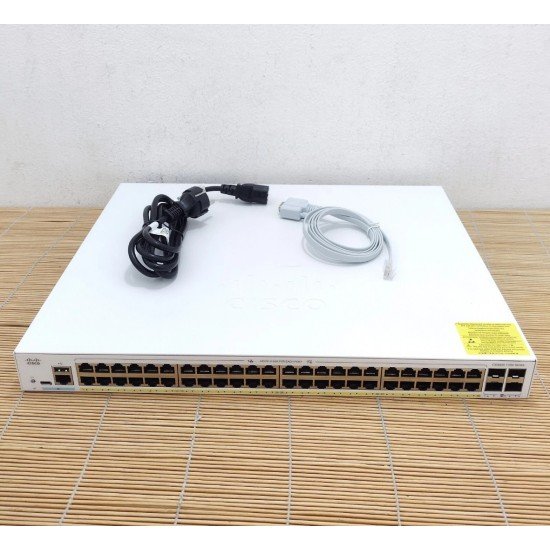

Cisco C1300-48P-4X Catalyst 1300 48-Port Gigabit PoE+ Managed Switch
The Cisco C1300-48P-4X is a Catalyst 1300 Series managed switch designed for small and medium-sized business networks, enterprise access deployments, campus environments and branch-office infrastructure. It combines 48 × 10/100/1000 Gigabit Ethernet PoE+ ports with 4 × 10G SFP+ uplinks, providing high-density wired connectivity and high-speed uplink capacity in a rack-mountable platform.
All 48 copper Ethernet ports support IEEE 802.3at PoE+, with up to 30W per port subject to the overall available power budget. The model is specified with a 370W PoE power budget, making it suitable for deployments that need to power multiple wireless access points, IP cameras, VoIP phones, access-control devices and other compatible PoE-powered endpoints. Cisco's detailed hardware documentation lists 375W as dedicated PoE power; the model overview advertises the C1300-48P-4X with a 370W power budget.
Key Features
- 48 × 10/100/1000BASE-T ports for Gigabit Ethernet connectivity.
- PoE+ on all 48 ports for compatible powered network devices.
- Up to 30W PoE+ per port, subject to the available system power budget.
- 370W advertised PoE power budget for the C1300-48P-4X model.
- 4 × 10G SFP+ uplinks for high-speed network connectivity.
- Rack-mountable chassis for structured network cabinets and server rooms.
- Supports enterprise networking features including VLAN, QoS, security, IPv6, management and monitoring functions.
Technical Specifications
| Brand |
Cisco |
| Series |
Catalyst 1300 |
| Model |
C1300-48P-4X |
| Product Type |
Managed Gigabit Ethernet PoE+ Switch |
| Downlink Ports |
48 × 10/100/1000 Ethernet |
| PoE Standard |
IEEE 802.3at PoE+ and IEEE 802.3af PoE |
| PoE Ports |
48 |
| Maximum PoE per Port |
Up to 30W |
| PoE Power Budget |
370W advertised model budget |
| Uplink Ports |
4 × 10 Gigabit SFP+ |
| Uplink Speed |
10Gbps |
| Switching Type |
Managed Ethernet switching |
| MAC Address Table |
Up to 16,000 addresses for Catalyst 1300 1 Gigabit Ethernet SKUs |
| Jumbo Frames |
Up to 9000 bytes |
| Form Factor |
Rack-mountable |
| Fanless |
Yes |
| Dimensions |
17.48 × 13.78 × 1.73 inches (W × D × H) |
| Weight |
Approximately 5.43 kg |
Network Applications
The Cisco C1300-48P-4X is designed for access-layer networking where a large number of Gigabit Ethernet devices require both network connectivity and PoE power. Common deployments include IP surveillance systems, wireless access points, VoIP phones, access-control systems, IoT devices and business workstations.
The four 10G SFP+ uplinks provide substantially higher bandwidth than standard Gigabit uplinks and can connect the switch to aggregation switches, core switches, servers or other compatible 10G network equipment. Appropriate Cisco-supported SFP+ optics or cables should be selected according to distance and media requirements.
PoE+ Capability
The C1300-48P-4X supports IEEE 802.3at PoE+ as well as IEEE 802.3af PoE. Its 48 PoE-capable Gigabit ports can supply power to compatible network endpoints without requiring separate power adapters at each device. Actual simultaneous PoE deployment depends on the total available switch power budget and the power requirements of connected devices.
10G SFP+ Uplink Connectivity
Four integrated 10G SFP+ uplinks allow the C1300-48P-4X to connect to higher-speed network infrastructure. These ports can be used for aggregation and backbone links, inter-switch connectivity and other applications requiring 10 Gigabit Ethernet. Transceiver and cable compatibility depends on the selected Cisco-supported module and network configuration.
Management and Networking Features
The Catalyst 1300 platform provides managed networking functionality for business environments, including VLAN configuration, Quality of Service, security features, IPv6 support, discovery protocols and network monitoring capabilities. Cisco documentation also lists features such as LLDP/LLDP-MED, Cisco Discovery Protocol, jumbo frames and time-based PoE operation for the Catalyst 1300 family.
Compatibility
Compatibility with SFP+ transceivers, DAC cables and connected network equipment depends on the specific Cisco-supported optic, cable, distance, speed and configuration. Verify Cisco compatibility documentation before purchasing or installing uplink accessories.
Why Choose Cisco C1300-48P-4X?
The C1300-48P-4X combines 48 Gigabit PoE+ access ports with four 10G SFP+ uplinks, making it suitable for organizations that need high-density endpoint connectivity together with faster upstream bandwidth. Its PoE+ capability simplifies deployment of powered network devices, while the 10G uplinks provide additional capacity for modern business networks.
