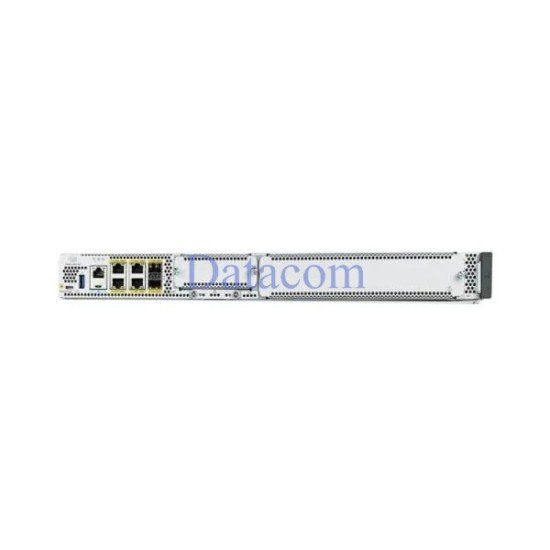

Cisco C8300-1N1S-6T C8300 1RU Enterprise Router – High Performance Networking Solution for Bangladesh
The Cisco C8300-1N1S-6T C8300 1RU Enterprise Router is a next-generation enterprise-grade networking device designed to deliver high-speed, secure, and scalable connectivity for modern business environments. Built by Cisco Systems, this router is part of the Cisco Catalyst 8300 Series Edge Platforms, specially engineered for branch offices, enterprise networks, and service provider edge deployments.
In Bangladesh, where businesses are rapidly shifting toward digital transformation, cloud applications, and hybrid networking, this router provides a reliable backbone for uninterrupted performance, secure data transfer, and advanced network control.
High Performance Enterprise Networking
The Cisco C8300-1N1S-6T is designed with a powerful multi-core architecture that ensures high throughput and low latency. It supports high-speed WAN connectivity, making it ideal for businesses that require stable internet performance for cloud computing, video conferencing, ERP systems, and large-scale data transfer.
With integrated 1RU compact design, it saves rack space while delivering enterprise-class performance. This makes it suitable for data centers, ISP networks, and corporate branch offices in Bangladesh.
Advanced Security Features
Security is a top priority in modern networking, and this router comes with built-in advanced security capabilities. It supports:
- Encrypted VPN connections
- Firewall protection
- Secure boot and hardware-based trust anchor
- Threat detection and mitigation
These features help protect business data from cyber threats, unauthorized access, and network vulnerabilities—an essential requirement for financial institutions, telecom operators, and corporate IT infrastructure in Bangladesh.
Cloud-Ready & SD-WAN Support
The Cisco C8300 series is fully optimized for SD-WAN (Software Defined WAN), enabling smarter network traffic management and cost-efficient connectivity. It allows businesses to prioritize applications, optimize bandwidth usage, and improve overall network efficiency.
Cloud integration is seamless, making it perfect for organizations using AWS, Microsoft Azure, or hybrid cloud environments.
Cisco C8300-1N1S-6T Enterprise Router Specifications
| Specification | Details |
|---|
| Product Model | Cisco C8300-1N1S-6T |
| Product Series | Cisco Catalyst 8300 Series Edge Platform |
| Form Factor | 1RU Rack Mountable |
| Platform Type | Enterprise Edge Router / SD-WAN Router |
| CPU | Multi-core Intel x86 Processor |
| Memory (DRAM) | 8 GB (expandable depending on configuration) |
| Flash Storage | 8 GB onboard flash |
| Storage Support | M.2 SSD support (expandable) |
| Built-in Ethernet Ports | 6 × Gigabit Ethernet (RJ-45) |
| WAN Interfaces | 1 × SFP + 1 × SFP+ (module dependent) |
| Module Slots | 1 × SM slot + 1 × NIM slot + 1 × PIM slot |
| USB Ports | 2 × USB 3.0 |
| Console Ports | RJ-45 + USB Console |
| Routing Protocols | BGP, OSPF, EIGRP, IS-IS, RIP, MPLS |
| SD-WAN Support | Yes (Cisco SD-WAN / IOS XE) |
| VPN Support | IPsec, DMVPN, SSL VPN |
| IPsec Throughput | Up to ~1.9 Gbps (hardware dependent) |
| Firewall Features | Integrated stateful firewall, ACL, NAT |
| Security | AES-256 encryption, Secure Boot, Trust Anchor |
| QoS | Advanced QoS for enterprise traffic |
| Maximum NAT Sessions | Up to ~1.2M sessions (config dependent) |
| VRF Support | Yes (multi-VRF capable) |
| SD-WAN Tunnels | Up to ~6000 tunnels |
| Power Supply | AC / DC support, optional redundancy |
| Power Consumption | ~150W max (typical enterprise load) |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Mounting | 1U Rack Mount |
| Use Case | Enterprise WAN, SD-WAN edge, branch office, ISP aggregation |
Why Choose Cisco C8300-1N1S-6T in Bangladesh?
In Bangladesh’s growing IT and telecom sector, reliable networking equipment is essential. This router is widely suitable for:
- Corporate offices
- ISP infrastructure
- Banks and financial organizations
- Government IT networks
- Large enterprise branches
Its scalability ensures long-term investment value, reducing the need for frequent upgrades.
FAQ – Cisco C8300-1N1S-6T C8300 1RU Enterprise Router
Q1: What is Cisco C8300-1N1S-6T?
A: The Cisco C8300-1N1S-6T is a next-generation enterprise edge router from the Cisco Catalyst 8300 Series. It is designed for branch offices, enterprise WAN, SD-WAN, and secure internet edge connectivity, replacing older ISR 4400 series routers.
Q2: What is the performance of Cisco C8300-1N1S-6T?
A: It is built for enterprise traffic handling with:
- Up to 10 Gbps routing performance
- Around 1.7–2.5 Gbps IPsec/SD-WAN throughput (encrypted traffic)
- High scalability for VPNs, routing, and branch workloads
Q3: What does “1N1S-6T” mean?
A:
- 1N1S = 1 Network Interface Module slot + 1 Service Module slot
- 6T = 6 built-in Gigabit Ethernet ports
This defines the modular and port structure of the router.
Q4: What operating system does it use?
A: It runs on Cisco IOS XE, which supports:
- SD-WAN and SD-Access
- Advanced routing protocols (BGP, OSPF, EIGRP)
- Firewall and security features
- Automation and cloud integration
Q5: What is Cisco C8300 used for?
A: It is mainly used in:
- Enterprise branch offices
- ISP edge routing
- SD-WAN deployments
- Secure internet gateways
- Corporate WAN connectivity
- Data center edge routing
Q6: Does it support SD-WAN and security features?
A: Yes, it supports Cisco SD-WAN with integrated security, including:
- Next-Generation Firewall (NGFW)
- IPS (Intrusion Prevention System)
- VPN (IPsec) encryption
- URL filtering and threat protection
Q7: Is Cisco C8300-1N1S-6T suitable for medium or large business?
A: Yes, it is ideal for medium to large enterprise branches, especially where high-speed internet, VPN connectivity, and secure WAN routing are required.
Q8: Can it handle multiple ISP connections?
A: Yes, it supports multi-WAN routing, making it suitable for:
- Dual or triple ISP setups
- Load balancing
- Failover redundancy
- High availability enterprise networks
Q9: Why choose Cisco Catalyst 8300 series router?
A: Key advantages include:
- Enterprise-grade Cisco reliability
- High throughput performance
- Advanced SD-WAN integration
- Strong security features
- Modular upgrade flexibility
- Long-term support for enterprise networks
Q10: Where can I buy Cisco C8300-1N1S-6T in Bangladesh?
A: You can purchase it from trusted enterprise IT suppliers like Datacom Technologies BD, ensuring:
- 100% genuine Cisco product
- Warranty & support
- Enterprise deployment assistance
- Best price in Bangladesh
Buy Cisco C8300-1N1S-6T C8300 1RU Enterprise Router From Datacom Technologies BD.
In Bangladesh, you can get original Cisco C8300-1N1S-6T C8300 1RU Enterprise Router From Datacom. We have a large collection of latest Cisco Router to purchase. Order Online Or Visit Our Office to get yours at lowest price.
