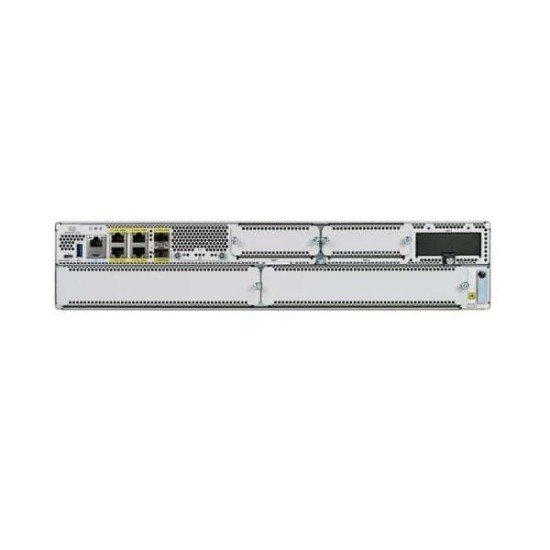

Cisco C8300-2N2S-4T2X C8300 Router
The Cisco C8300‑2N2S‑4T2X Router is a robust enterprise‑class edge router built for secure SD‑WAN and high‑performance branch networking. It offers flexible modular connectivity with dual network and service module slots plus 4T2X ports for scalable deployments. Designed for reliability and advanced security, it ensures seamless cloud access and optimized traffic handling for growing businesses.
Specification table for the Cisco C8300‑2N2S‑4T2X Router
| Specification | Details |
|---|
| Model Name | Cisco C8300‑2N2S‑4T2X |
| Product Family | Cisco Catalyst 8300 Series Edge Platforms |
| Device Type | Enterprise Edge Router / SD‑WAN Router |
| Form Factor | 2RU Rack‑mount |
| Processor | Intel x86 Multi‑core CPU |
| Default DRAM | 8 GB (upgradable up to 32 GB) |
| Flash Memory | 8 GB onboard |
| Internal Storage | 16 GB M.2 SSD (expandable) |
| Built‑in WAN Ports | 2 × 10 G SFP+, 4 × 1 G RJ‑45 |
| Service Module (SM) Slots | 2 |
| Network Interface Module (NIM) Slots | 2 |
| Pluggable Interface Module (PIM) Slot | 1 |
| IPv4 Forwarding Throughput | Up to ~19.7 Gbps |
| IPsec Throughput (Non‑SD‑WAN) | Up to ~18.8 Gbps |
| SD‑WAN IPsec Throughput (1400 B) | Up to ~18.8 Gbps |
| SD‑WAN IPsec Throughput (IMIX) | ~7.6 Gbps |
| SD‑WAN Overlay Tunnels | Up to 6,000 |
| IPsec SVTI Tunnels | ~4,000 |
| ACLs Supported | ~4,000 |
| IPv4 ACEs | ~72,000 |
| IPv4 Routes (Scale) | ~1.6M (default) / up to 4M (with more memory) |
| IPv6 Routes (Scale) | ~1.5M (default) / up to 4M (with more memory) |
| NAT Sessions | ~1.2M (default) / up to 2M (with more memory) |
| Firewall Sessions | ~512K |
| Supported Protocols | OSPF, BGP, EIGRP, RIP, MPLS, VRRP, HSRP, etc. |
| Management Interfaces | Gigabit RJ‑45, Console (RJ‑45 & Micro‑USB) |
| USB Ports | USB 3.0 Type‑A for storage |
| Power Supply | Dual hot‑swappable AC/DC options |
| Dimensions (H×W×D) | ~3.5″ × 17.25″ × 18.5″ (88.9 × 43.8 × 47.0 cm) |
| Weight | ~18‑20 kg (varies with configuration) |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Certifications | Standard enterprise safety & EMC certifications |
Cisco C8300‑2N2S‑4T2X Edge Router – Full Description
The Cisco Cisco C8300‑2N2S‑4T2X Edge Router is a high‑performance, modular enterprise‑grade edge router from the Cisco Catalyst 8300 Series, designed for modern WAN edge, SD‑WAN, and secure branching deployments. It combines powerful routing performance, flexible modular expansion, integrated security features, and high throughput connectivity in a rack‑mount chassis. With built‑in 2 × 10 GbE SFP+ ports and 4 × 1 GbE RJ45 ports, several expansion slots, and advanced Cisco feature support, this router is ideal for large branch offices, regional hubs, and distributed networks requiring high‑speed internet/Routing and secure cloud connectivity.
More Key Features
- Modular Enterprise WAN Router from the Cisco Catalyst 8300 Series
- 2 × 10 Gigabit SFP+ ports & 4 × 1 Gigabit RJ‑45 ports for WAN/LAN connectivity
- 2 SM (Service Module) slots + 2 NIM (Network Interface Module) slots + 1 PIM slot for flexible expansion
- Default 8 GB DRAM and 16 GB M.2 SSD storage (upgradeable)
- High performance with up to 19.7 Gbps IPv4 forwarding throughput
- Strong IPsec VPN and SD‑WAN performance – up to ~18.8 Gbps throughput and support for up to 6000 SD‑WAN overlay tunnels
- Supports IPv4 & IPv6 routing protocols including BGP, OSPF, EIGRP, IS‑IS, VRRP, MPLS, NAT, DHCP, and more
- Built‑in security, including VPN, Zone‑Based Firewall, URL Filtering, Malware Protection, and advanced encryption
- Rack‑mountable 2U chassis with redundant power options for high availability
How to Install Cisco C8300‑2N2S‑4T2X Router
Rack Mount Installation
- Mount the router in a standard 19″ rack using rack ears and screws included.
- Ensure proper airflow around the router for cooling.
Add Power Supply
- Connect AC or DC power (depending on your model and power supply option).
- Use redundant power inputs if available.
Connect Network Interfaces
- Install SFP+ modules or fiber cables in the 10G ports as needed.
- Connect the RJ45 ports to LAN or other network segments.
Expansion Modules (Optional)
- If required: install NIM, SM, or PIM modules for additional interfaces like cellular, voice, or high‑density switching.
Console/Management Setup
- Use the console port (RJ45 or USB) to access the CLI for initial configuration.
Initial Configuration
- Assign hostname, management IP, default gateway, routing protocols (BGP/OSPF/EIGRP), security policies, VPN and SD‑WAN features.
- Save and reboot the router to apply settings.
Frequently Asked Questions (FAQ)
1. What is the Cisco C8300‑2N2S‑4T2X used for?
It is used as an enterprise WAN edge and SD‑WAN router, providing secure, high‑speed internet/LAN connectivity, support for advanced routing, VPN, and modular expansion features.
2. How many and what kind of network ports does it have?
It includes 2 × 10 GbE SFP+ ports and 4 × 1 GbE RJ45 ports for flexible connectivity.
3. Can it handle SD‑WAN and VPN traffic?
Yes — it supports Cisco SD‑WAN and high‑performance IPsec VPN throughput (~18.8 Gbps) with support for thousands of overlay tunnels.
4. Is it rack‑mountable?
Yes, it is designed as a 2RU rack‑mount router for enterprise installations.
5. Does it support advanced routing protocols?
Yes — it supports BGP, OSPF, EIGRP, IS‑IS, RIP, MPLS and many other protocols used in enterprise networks.
Where to Buy Cisco C8300-2N2S-4T2X C8300 Router in Bangladesh
Get the Cisco C8300-2N2S-4T2X Router from authorized distributor in Bangladesh from Datacom Technologies BD. 100% genuine with full warranty and dedicated support.
Buy Cisco C8300 Router from Datacom
In Bangladesh, you can get original Cisco enterprise routers from Datacom Technologies BD. We have a large collection of latest networking devices available for purchase. Order online or visit our Datacom shop at Elephant Road, Dhaka to get the best price.
