| Specification | Details |
|---|
| Model | Cisco C9200-48T-E |
| Product Type | Managed Layer 2/Layer 3 Access Switch |
| Series | Catalyst 9200 |
| Software Edition | Cisco IOS XE Network Essentials |
| Downlink Ports | 48 × 10/100/1000 Mbps RJ‑45 |
| Uplink Module Slot | 1 × modular uplink slot (supports optional uplink modules) |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 130.95 Mpps (64-byte packets) |
| Stacking | StackWise-160, up to 8 switches, 160 Gbps stack bandwidth |
| MAC Address Table | 32,000 entries |
| VLAN IDs Supported | Up to 4096 VLANs |
| SVIs Supported | Up to 512 |
| Jumbo Frames | Up to 9,198 bytes |
| Memory | 4 GB DRAM, 4 GB Flash |
| Power Supply | 1 × 250W AC (field-replaceable) |
| Fans | Redundant, field-replaceable |
| Dimensions (H×W×D) | 1.73″ × 17.5″ × 13.8″ |
| Weight | ~6.0 kg |
| Routing Support | Layer 3 routed access (RIP, OSPF, EIGRP Stub, etc.) |
| Security Features | 802.1X, MACsec-128, ACLs, Control Plane Protection |
| Monitoring & Telemetry | NetFlow, SPAN, EEM, RESTCONF/NETCONF |
Product Description:

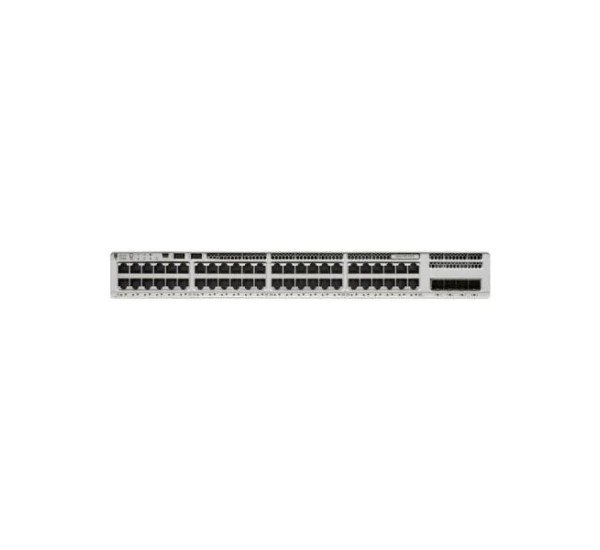

The Cisco C9200-48T-E Catalyst 9200 Series Switch is a high-performance enterprise-grade access switch designed for campus and branch networks. It provides 48 Gigabit Ethernet RJ‑45 ports for high-density connectivity and a modular uplink slot to support optional uplink modules, offering flexibility and scalability for growing networks. The switch operates on Cisco IOS XE Network Essentials, delivering robust Layer 2 switching and essential Layer 3 routing functions for simplified network management and optimized performance.
With StackWise-160 stacking, multiple C9200-48T-E switches can operate as a single logical switch, simplifying configuration and management while providing 160 Gbps stack bandwidth for high-speed inter-switch communication. The switch supports a MAC address table of 32,000 entries, up to 4096 VLANs, and 512 SVIs, making it suitable for large enterprise deployments requiring segmentation, routing, and high throughput.
Designed for reliability and uptime, the C9200-48T-E features field-replaceable power supplies and fans. Security features include 802.1X authentication, MACsec encryption, ACLs, and control plane protection, ensuring secure access and traffic protection. Advanced monitoring and automation capabilities such as NetFlow, SPAN, EEM, and RESTCONF/NETCONF make this switch ideal for modern enterprise networks requiring scalability, resiliency, and simplified operations.
