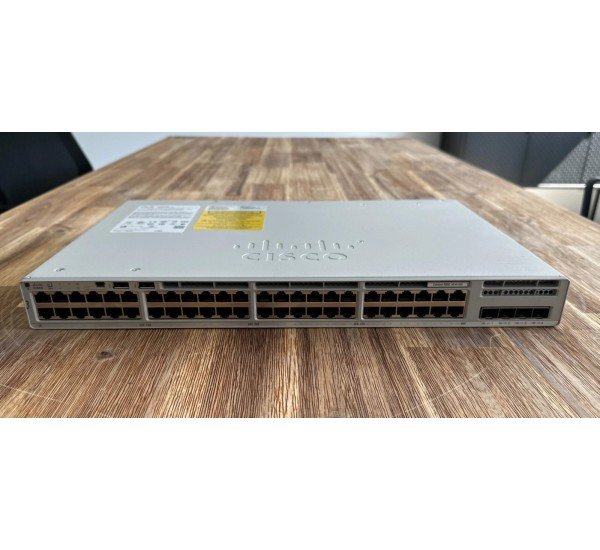

Cisco C9200L-48T-4X-E Catalyst 9200L Series Switch
Cisco C9200L-48T-4X-E is a high-performance Catalyst 9200L Series switch featuring 48 Gigabit Ethernet ports and 4×10G SFP+ uplinks for fast enterprise connectivity. It delivers secure, scalable, and reliable network performance with advanced Layer 2/3 capabilities. Buy the Cisco C9200L-48T-4X-E Catalyst 9200L Switch at the best price in Bangladesh from Datacom Technologies BD.
Cisco C9200L-48T-4X-E Catalyst 9200L Series Switch Specification Table:
| Specification | Details |
|---|
| Product Name | Cisco Catalyst C9200L-48T-4X-E Switch |
| Manufacturer | Cisco Systems |
| Model Number | C9200L-48T-4X-E |
| Switch Type | Managed Layer 3 Enterprise Access Switch |
| Downlink Ports | 48 × 10/100/1000 Gigabit Ethernet data ports |
| Uplink Ports | 4 × 10G SFP+ fixed uplinks |
| Stacking Technology | StackWise-80 |
| Stacking Bandwidth | 80 Gbps |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | Up to 261.9 Mpps |
| DRAM | 2 GB |
| Flash Memory | 4 GB |
| MAC Address Table | 16,000 entries |
| IPv4 Routing Entries | 3,000 |
| IPv6 Routing Entries | 1,500 |
| VLAN IDs Supported | 1024 |
| Packet Buffer | 6 MB |
| Power Supply | PWR-C5-125WAC |
| Fans | Fixed redundant |
| Dimensions (H × W × D) | 4.4 × 44.5 × 28.8 cm |
| Software License | Cisco IOS XE – Network Essentials |
| Jumbo Frame Support | Up to 9198 bytes |
| Deployment | Enterprise campus, branch office, and access networks |
Cisco C9200L-48T-4X-E Catalyst 9200L Series Switch - Description
The Cisco C9200L-48T-4X-E Catalyst 9200L Series Switch is an enterprise-grade access layer switch designed for secure, scalable, and high-performance networking. It features 48 Gigabit Ethernet data ports and 4 × 10G SFP+ uplink interfaces, providing fast connectivity for modern business networks. The switch runs on Cisco IOS XE with Network Essentials license, delivering advanced automation, security, and simplified network management. With 176 Gbps switching capacity and 261.9 Mpps forwarding rate, it ensures reliable performance for enterprise campus networks, branch offices, and SMB infrastructures.
Key Features
- 48 × 10/100/1000 Gigabit Ethernet data ports.
- 4 × 10G SFP+ uplink ports for high-speed backbone connectivity.
- Cisco IOS XE operating system with Network Essentials license.
- 176 Gbps switching capacity and up to 261.9 Mpps forwarding rate.
- Supports StackWise-80 stacking technology with up to 80 Gbps bandwidth.
- Advanced Layer 2 and Layer 3 networking features.
- Enhanced security with MACsec encryption and policy-based segmentation.
- 2 GB DRAM and 4 GB flash memory for stable system performance.
- Designed for enterprise campus, branch office, and access-layer deployments.
How to Install Cisco C9200L-48T-4X-E
Step 1: Unbox the Switch
Open the package and check all components including the switch, power cable, rack mount kit, and documentation.
Step 2: Mount the Switch
Install the switch into a standard 19-inch rack using the rack-mount brackets.
Step 3: Connect Power
Attach the power cable to the switch and connect it to a stable power source.
Step 4: Connect Network Devices
Plug Ethernet cables into the 48 Gigabit ports to connect PCs, printers, servers, or other network devices.
Step 5: Connect Uplink Ports
Insert 10G SFP+ modules into the uplink ports and connect them to the core switch or router.
Step 6: Access Console
Use a console cable or web interface to access the switch configuration panel.
Step 7: Configure Network
Configure VLANs, IP addresses, routing, and security policies using Cisco IOS XE CLI or GUI.
Step 8: Verify Operation
Check LED indicators and run connectivity tests to ensure proper operation.
Compatibility
The Cisco C9200L-48T-4X-E is compatible with:
- Cisco Catalyst 9200L Series switches for stacking.
- Cisco C9200L-STACK-KIT stacking module.
- Cisco SFP and SFP+ transceivers.
- Cisco DNA Center for network automation.
- Cisco routers, firewalls, IP phones, and wireless access points.
Frequently Asked Questions (FAQ)
1. How many ports are available on the C9200L-48T-4X-E?
It includes 48 Gigabit Ethernet ports and 4 × 10G SFP+ uplink ports.
2. Does this switch support PoE?
No, the 48T model is a data-only switch, meaning it does not provide PoE power.
3. What operating system does the switch run?
It runs Cisco IOS XE with Network Essentials license.
4. Can this switch be stacked?
Yes, it supports StackWise-80 technology, allowing multiple switches to be stacked for better scalability.
5. What is the switching capacity of this device?
The switch offers 176 Gbps switching capacity, ensuring high-speed enterprise networking performance.
- Call/WhatsApp: 01748173213
- ✉ Email: sales@datacomtechbd.com | datacomtechnologiesbd@gmail.com
What is the price of Cisco C9200L-48T-4X-E Catalyst 9200L Series Switch in Bangladesh?
The lowest price of Cisco C9200L-48T-4X-E Catalyst 9200L Series Switch in Bangladesh is 335,000৳. You can buy the Cisco C9200L-48T-4X-E at best price from our website or visit our Office.
For the most accurate pricing, stock availability, and warranty details, we recommend contacting us before placing your order.
