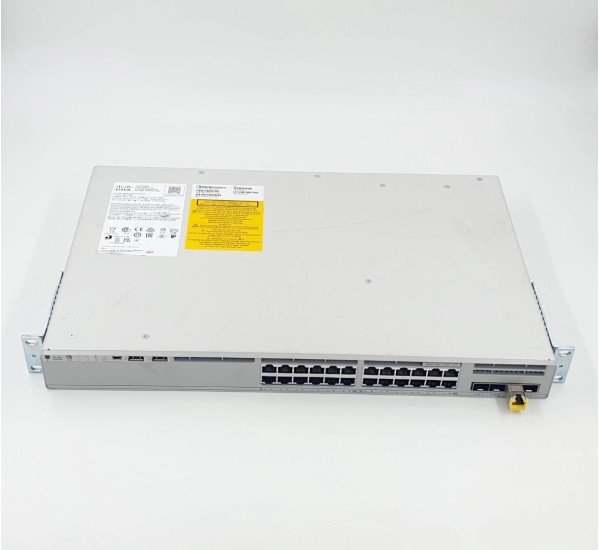

Cisco Catalyst C9200L-24P-4G-E 24 Port Switch

Cisco Catalyst C9200L-24P-4G-E 24-Port Gigabit PoE+ Managed Switch

The Cisco Catalyst C9200L-24P-4G-E is a 24-port enterprise-class managed switch from the Cisco Catalyst 9200L Series, designed for secure campus, branch-office and access-layer networking. It provides 24 Gigabit Ethernet PoE+ ports for connecting and powering compatible network devices and 4 fixed 1G SFP uplink ports for fiber-based connectivity.

The C9200L-24P-4G-E combines Cisco IOS XE software, Layer 2 switching, Layer 3 capabilities, security features and StackWise-80 stacking. The “E” designation identifies the model as using the Network Essentials feature set. Unlike the modular C9200 models, the C9200L uses fixed uplinks and fixed fans.

Cisco Catalyst C9200L-24P-4G-E Features

• 24 × 10/100/1000BASE-T Gigabit Ethernet PoE+ ports
• IEEE 802.3af and IEEE 802.3at PoE/PoE+ support
• Up to 30W PoE power per Ethernet port
• 4 × fixed 1G SFP uplink ports
• 56Gbps switching capacity
• 41.67 Mpps forwarding rate
• 136Gbps switching capacity with stacking
• 101 Mpps forwarding rate with stacking
• StackWise-80 technology
• Stacking support for compatible Catalyst 9200L switches
• Cisco IOS XE operating system
• Network Essentials software feature set
• Layer 2 switching and Layer 3 routing capabilities
• IPv4 and IPv6 support
• 802.1X authentication and network access control features
• MACsec encryption support
• Access Control Lists and DHCP snooping
• Dynamic ARP Inspection and IP Source Guard
• QoS and traffic-management capabilities
• SNMP, CLI and web-based management options
• Fixed redundant fans
• Two power-supply slots

Detailed Technical Specifications

PoE+ and Uplink Connectivity

The C9200L-24P-4G-E provides 24 full PoE+ Gigabit Ethernet ports. The ports support IEEE 802.3af and IEEE 802.3at standards and can deliver up to 30W per port to compatible powered devices. The standard 600W AC power supply provides a total PoE budget of up to 370W.

The switch has four fixed 1G SFP uplink ports for connecting to fiber-based aggregation or distribution switches. Because these uplinks are fixed 1G SFP interfaces, this particular C9200L-24P-4G-E model should not be represented as having native fixed 10G SFP+ uplinks.

StackWise-80

Cisco StackWise-80 enables supported Catalyst 9200L switches to operate as a unified logical switching system. The C9200L-24P-4G-E provides up to 80Gbps stacking bandwidth, with stacked operation increasing the platform's effective switching capacity and forwarding performance.

Stacking compatibility depends on the participating Catalyst 9200/9200L models, software version, hardware configuration and applicable Cisco requirements. Verify the intended stack members before deployment.

Network and Security Features

The switch runs Cisco IOS XE and provides enterprise network-management and security capabilities. Supported functions include VLANs, QoS, Access Control Lists, DHCP snooping, Dynamic ARP Inspection, IP Source Guard, 802.1X authentication and MACsec capabilities.

The Network Essentials license provides a defined set of Layer 2 and Layer 3 capabilities. Advanced functions that require a higher Cisco software license should not be assumed to be available on the “-E” configuration.

Compatibility

The C9200L-24P-4G-E is designed for compatible 10/100/1000 Ethernet endpoints and standards-compliant PoE devices. Connected access points, IP phones, cameras and other powered devices should be checked against their PoE class and power requirements.

The four uplinks are 1G SFP ports. The selected optical transceiver must be compatible with Cisco Catalyst 9200L requirements and match the required fiber type, wavelength, connector and transmission distance.

For stacking deployments, verify Catalyst 9200/9200L compatibility, Cisco IOS XE release requirements and StackWise configuration requirements before installation.

Applications and Use Cases

• Enterprise campus access-layer networking
• Branch-office network infrastructure
• IP phone and unified communications deployments
• Wireless access point connectivity
• IP surveillance camera networks
• PoE-powered IoT deployments
• Fiber uplink to distribution switches
• VLAN-based network segmentation
• Secure enterprise access switching
• Stacked Cisco Catalyst access-layer deployments

Why Choose Cisco Catalyst C9200L-24P-4G-E?

The Cisco Catalyst C9200L-24P-4G-E combines 24 Gigabit PoE+ access ports with four fixed Gigabit SFP uplinks and enterprise switching capabilities. Its StackWise-80 support, Cisco IOS XE software, security features and 370W PoE budget make it suitable for structured campus and branch network deployments where 1G fiber uplinks are sufficient.
