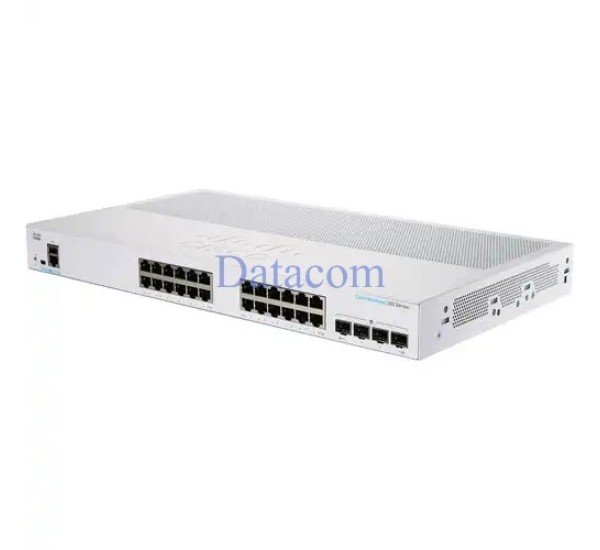

Cisco CBS350-24P-4X-EU 24 Port Gigabit PoE+ Managed Switch
Cisco CBS350-24P-4X-EU Managed Switch is a powerful, enterprise-grade networking solution designed to deliver high-performance connectivity, advanced security, and reliable Power over Ethernet (PoE+) capabilities for modern business environments. Built by Cisco, this smart managed switch is ideal for small to medium-sized businesses, corporate offices, IP surveillance systems, and VoIP deployments in Bangladesh.
With 24 Gigabit Ethernet PoE+ ports and 4 x 10G SFP+ uplinks, the Cisco CBS350-24P-4X-EU ensures seamless data transfer, flexible scalability, and simplified network management—making it a perfect backbone for your growing IT infrastructure.
Full Specifications of Cisco CBS350-24P-4X-EU
| Category | Specification |
|---|
| Brand | Cisco |
| Model | CBS350-24P-4X-EU |
| Switch Type | Managed Switch (Layer 2 & Layer 3) |
| Total Ports | 24 x 10/100/1000 Gigabit Ethernet PoE+ |
| Uplink Ports | 4 x 10G SFP+ |
| PoE Standard | IEEE 802.3af / 802.3at |
| PoE Power Budget | 195W |
| Max PoE per Port | 30W |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 95.23 Mpps |
| MAC Address Table | 16K entries |
| Jumbo Frame Support | Yes (up to 9000 bytes) |
| VLAN Support | Up to 4094 VLAN IDs |
| Layer Features | Layer 2 & Layer 3 switching |
| Routing Features | Static routing (up to ~990 routes) |
| Management | Web GUI, CLI, SNMP v1/v2c/v3, Cisco Business Dashboard |
| Security Features | ACL, RADIUS, DoS protection, Port Security |
| Stacking | Up to 4 switches |
| Processor | 800 MHz ARM |
| RAM | 512 MB |
| Flash Memory | 256 MB |
| Console Port | 1 x RJ45 |
| USB Port | 1 x USB-A / Micro-USB |
| Power Supply | 100–240V AC, 50/60 Hz |
| Max Power Consumption | ~240W |
| Operating Temperature | -5°C to 50°C |
| Dimensions | 445 x 299 x 44 mm |
| Weight | ~3.68 kg |
| Mounting | Rack-mountable |
Best Application for Cisco CBS350-24P-4X-EU in Bangladesh
The Cisco CBS350-24P-4X-EU switch is widely used across different industries in Bangladesh due to its reliability and scalability:
- Corporate offices and enterprise networks
- ISP and network infrastructure setups
- IP CCTV surveillance systems (PoE cameras)
- VoIP phone systems and communication networks
- Educational institutions and universities
- Hotels, hospitals, and shopping malls
- Data centers and cloud environments
Its PoE+ capability allows you to power devices like IP cameras, wireless access points, and IP phones directly through Ethernet cables—reducing extra wiring costs.
How to Install Cisco CBS350-24P-4X-EU
Installing the Cisco CBS350-24P-4X-EU is simple and efficient:
- Unbox the switch and check all included accessories
- Mount the device in a rack or place it on a flat surface
- Connect power cable to the switch
- Plug Ethernet cables into the Gigabit ports
- Connect SFP+ uplinks if needed
- Access the web interface via default IP address
- Configure VLANs, IP settings, and security features
- Save configuration and test connectivity
Tip: Always update firmware for optimal performance and security.
Compatibility Devices
The Cisco CBS350-24P-4X-EU is compatible with a wide range of networking and PoE devices:
- Cisco routers and firewalls
- Access points and wireless controllers
- IP phones and VoIP systems
- Network video recorders (NVR)
- IP security cameras
- Servers, NAS, and workstations
- Fiber modules (SFP/SFP+)
Where to Buy Cisco CBS350-24P-4X-EU 24 Port Gigabit PoE+ Managed Switch in Bangladesh
Get the original Cisco CBS350-24P-4X-EU 24 Port Gigabit PoE+ Managed Switch from Datacom Technologies (BD)—your trusted source for genuine networking products. The Cisco CBS350-24P-4X-EU is available with a 1-year warranty and full technical support.
