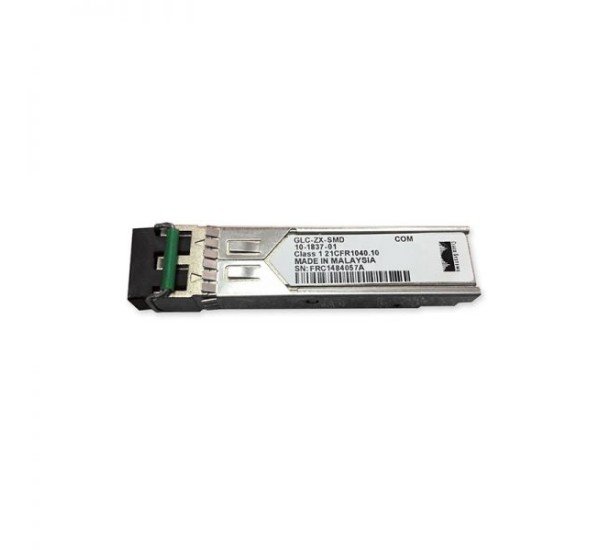

Cisco GLC-ZX-SMD Transceiver Module – 1000BASE-ZX Gigabit Ethernet SFP
The Cisco GLC-ZX-SMD is a 1000BASE-ZX Gigabit Ethernet Small Form-Factor Pluggable (SFP) transceiver designed for long-distance optical network connectivity. It operates at a nominal 1550nm wavelength over single-mode fiber (SMF).
The GLC-ZX-SMD is suitable for long-distance enterprise, campus, service-provider, metro Ethernet, and network backbone applications. Cisco documentation specifies a cable distance of approximately 70 to 100 kilometers, depending on the optical link design and deployment conditions.
Cisco GLC-ZX-SMD Technical Specifications
| Specification |
Details |
| Manufacturer |
Cisco |
| Part Number |
GLC-ZX-SMD |
| Form Factor |
SFP |
| Ethernet Standard |
1000BASE-ZX |
| Data Rate |
1Gbps |
| Wavelength |
1550nm |
| Fiber Type |
Single-Mode Fiber (SMF) |
| Fiber Specification |
G.652 |
| Connector |
Dual LC/PC |
| Transmission Distance |
Approximately 70–100km |
| Digital Optical Monitoring |
Supported |
| Operating Temperature |
Extended-temperature range |
Optical Performance
The Cisco GLC-ZX-SMD uses 1550nm optical transmission over single-mode fiber for extended-distance Gigabit Ethernet links. Its long-reach design makes it suitable for network connections that exceed the typical 10km or 40km reach of shorter-range Gigabit Ethernet optics.
70–100km Long-Distance Connectivity
Cisco documentation specifies approximately 70 to 100km of cable distance for the GLC-ZX-SMD. The actual achievable distance depends on fiber characteristics, connector losses, optical attenuation, dispersion, and overall link engineering.
For engineered links, appropriate optical attenuation and link-budget considerations may be required, particularly when the actual fiber span is substantially shorter than the optic's maximum design distance.
Applications
- Long-distance Gigabit Ethernet links
- Enterprise network backbone connections
- Campus network interconnections
- Metro Ethernet infrastructure
- Service-provider network connectivity
- Data center and remote-site interconnects
- Building-to-building fiber links
- Long-haul network aggregation and distribution
Compatibility
The Cisco GLC-ZX-SMD is designed for Cisco networking platforms supporting the 1000BASE-ZX SFP. Cisco documentation identifies the module for compatible switching, routing, and network convergence platforms.
The module uses a dual LC/PC interface and requires single-mode fiber. Verify the exact Cisco platform, software/firmware support, optical budget, and supported transceiver list before installation.
The remote end should use a compatible Gigabit Ethernet optical interface with matching wavelength and optical characteristics.
Cisco GLC-ZX-SMD Price in Bangladesh
Looking for Cisco GLC-ZX-SMD price in Bangladesh? Datacom Technologies (BD) can provide Cisco optical transceiver solutions according to your required quantity, product condition, warranty requirements, equipment compatibility, and project specifications.
Price and availability may vary depending on stock condition, quantity, sourcing requirements, and warranty options. Contact Datacom Technologies (BD) for the latest quotation and suitable Cisco 1000BASE-ZX transceiver options.
Why Choose Cisco GLC-ZX-SMD?
- 1000BASE-ZX standard for long-distance Gigabit Ethernet
- 1550nm single-mode fiber transmission
- Approximately 70–100km optical reach depending on link engineering
- Digital Optical Monitoring support
- Dual LC/PC optical interface
- Extended-temperature operation
- Suitable for enterprise, metro, and service-provider networks
- Designed for compatible Cisco networking platforms
