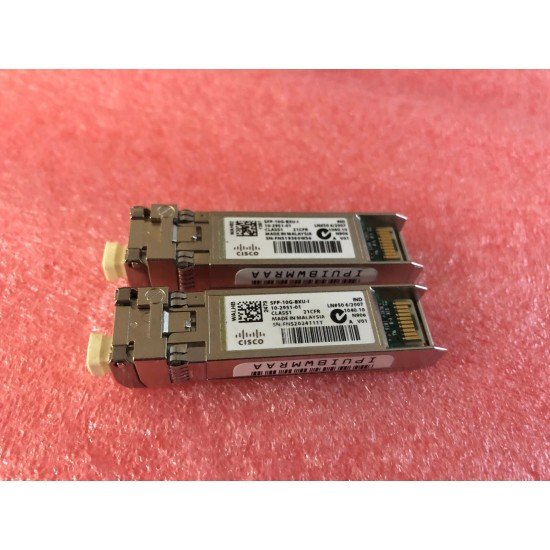

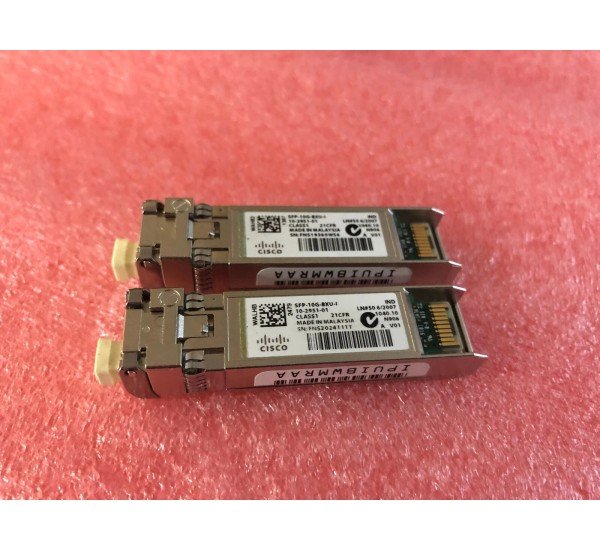

Cisco SFP-10G-BXU-I SFP+ Module

About Cisco SFP-10G-BXU-I SFP+ Module in Bangladesh

The Cisco SFP-10G-BXU-I is a 10Gbps bidirectional SFP+ optical transceiver designed for high-speed Ethernet connectivity over a single strand of single-mode fiber. Based on 10GBASE-BXU technology, this BiDi optical module provides up to 10km transmission distance while using different optical wavelengths for transmit and receive operations.

The Cisco SFP-10G-BXU-I uses a 1270nm wavelength for transmission and 1330nm for reception. Its bidirectional architecture allows both directions of the 10Gbps optical link to operate over a single fiber strand, making it particularly useful in fiber infrastructures where a conventional duplex fiber pair is not available.

The module features a compact SFP+ form factor and simplex LC connector for single-fiber optical connectivity. The industrial-temperature design makes it suitable for supported networking environments that may experience wider operating temperature conditions than standard commercial installations.

The Cisco SFP-10G-BXU-I is intended for compatible Cisco switches, routers, and other supported networking platforms. For a complete BiDi connection, it must be paired with the appropriate complementary wavelength module, such as the corresponding Cisco SFP-10G-BX-D-I configuration, at the opposite end of the fiber link.

Cisco SFP-10G-BXU-I SFP+ Module Specifications & Features

Overview

The Cisco SFP-10G-BXU-I SFP+ Module is designed to provide high-speed 10Gbps Ethernet connectivity using a single strand of single-mode fiber. Its BiDi architecture combines transmit and receive signals on the same fiber while separating them through different optical wavelengths.

Operating at 1270nm transmit and 1330nm receive wavelengths, the module is designed for use with a complementary BiDi transceiver at the opposite end of the optical link. This wavelength pairing allows a single fiber to carry full-duplex 10Gbps Ethernet traffic.

With a reach of up to 10km over suitable single-mode fiber, the SFP-10G-BXU-I can be deployed for extended enterprise network links, telecom infrastructure, campus connectivity, building-to-building connections, and other 10Gbps optical applications.

Buy Cisco SFP-10G-BXU-I SFP+ Module in Bangladesh

Purchase the Cisco SFP-10G-BXU-I 10G BiDi SFP+ Module from Datacom Technologies (BD). We supply Cisco SFP/SFP+ modules, optical transceivers, switches, routers, fiber-optic networking equipment, enterprise networking products, and telecom connectivity solutions with competitive pricing, technical consultation, deployment assistance, and nationwide delivery throughout Bangladesh.

Key Features

• 10Gbps high-speed Ethernet connectivity
• 10GBASE-BXU bidirectional optical technology
• Up to 10km transmission distance
• 1270nm transmit wavelength
• 1330nm receive wavelength
• Single-mode fiber support
• Simplex LC optical connector
• Single-fiber bidirectional transmission
• Compact SFP+ form factor
• Industrial-temperature design
• Hot-pluggable module
• Suitable for compatible Cisco networking equipment

Applications

• 10G Ethernet Fiber Links
• Enterprise Network Backbones
• Telecom Access Networks
• Metro Ethernet Networks
• Campus Network Connectivity
• Building-to-Building Links
• Data Center Network Connectivity
• Remote Site Connectivity
• Industrial Network Infrastructure
• Long-Distance 10G Fiber Links

BiDi Single-Fiber Technology

The Cisco SFP-10G-BXU-I uses BiDi technology to transmit and receive optical signals over a single strand of single-mode fiber. Instead of using separate fibers for transmit and receive, the module uses different wavelengths to separate the two directions of communication.

This architecture can significantly reduce fiber requirements and is particularly useful for network installations where only one fiber strand is available. The opposite end of the link must use the correct complementary BiDi wavelength configuration.

1270nm / 1330nm Wavelength Pair

The SFP-10G-BXU-I uses 1270nm for transmission and 1330nm for reception. For proper bidirectional operation, it must be connected to a compatible complementary BiDi module with the corresponding reverse wavelength configuration.

Correct wavelength matching, fiber type, connector, optical budget, and transmission distance are essential when deploying a BiDi optical link.

Industrial-Temperature Design

The Cisco SFP-10G-BXU-I is an industrial-temperature SFP+ module intended for supported environments where optical networking equipment may be exposed to wider temperature conditions than typical commercial installations.

This makes the module suitable for selected industrial, telecom, outdoor-networking, and other infrastructure deployments where the host equipment and optical module specifications support the required environmental conditions.

SFP+ Form Factor

The SFP+ form factor provides a compact, modular interface for 10Gbps networking equipment. Compatible Cisco switches and routers can use SFP+ ports to provide flexible optical connectivity without requiring fixed optical interfaces.

The hot-pluggable design also makes installation, replacement, maintenance, and network expansion convenient on supported platforms.

Compatibility

• Compatible Cisco 10G switches
• Compatible Cisco routers
• Compatible Cisco SFP+ interfaces
• Supported Cisco 10G Ethernet platforms
• Compatible single-mode fiber infrastructure
• Compatible complementary 10G BiDi optical module

Always verify the exact Cisco equipment model, supported transceiver list, IOS/software or firmware requirements, optical wavelength, transmission distance, fiber type, connector, temperature requirements, and optical budget before installation.

Benefits

• 10Gbps high-bandwidth optical connectivity
• Up to 10km transmission reach
• Single-fiber bidirectional operation
• 1270nm / 1330nm wavelength configuration
• Simplex LC connector
• Compact SFP+ form factor
• Industrial-temperature capability
• Hot-pluggable optical module
• Reduced fiber requirements
• Suitable for enterprise, telecom and industrial networking

Why Buy from Datacom Technologies (BD)?

Datacom Technologies (BD) supplies networking and data center infrastructure products in Bangladesh, including Cisco SFP/SFP+ modules, optical transceivers, switches, routers, fiber-optic equipment, enterprise networking products, telecom equipment, and industrial networking solutions. Customers can receive competitive pricing, technical consultation, deployment assistance, and after-sales support.

• Call/WhatsApp: +8801748173213
• Email: sales@datacom.com.bd
• Alternative Email: datacomtechnologiesbd@gmail.com
• Office: Tropical Center, 218, Dr. Kudroti Khuda Road, New Elephant Road, Dhaka-1205, Bangladesh

Frequently Asked Questions (FAQ)

Q1: What is the Cisco SFP-10G-BXU-I?
The Cisco SFP-10G-BXU-I is a 10Gbps BiDi SFP+ optical transceiver designed to transmit and receive data over a single strand of single-mode fiber.

Q2: What is the transmission speed?
The module provides 10Gbps Ethernet optical connectivity.

Q3: What is the maximum transmission distance?
The Cisco SFP-10G-BXU-I supports optical links up to 10km over suitable single-mode fiber.

Q4: What wavelengths does the SFP-10G-BXU-I use?
It uses 1270nm for transmission and 1330nm for reception.

Q5: What type of fiber does the module require?
The module is designed for single-mode fiber (SMF).

Q6: What connector does the SFP-10G-BXU-I use?
It uses a simplex LC optical connector because both transmit and receive signals travel over the same fiber strand.

Q7: Does the SFP-10G-BXU-I need a complementary BiDi module?
Yes. A BiDi link requires complementary wavelength configurations. The SFP-10G-BXU-I should be paired with the appropriate corresponding BiDi module at the opposite end.

Q8: Can the SFP-10G-BXU-I be used in Cisco switches?
It is designed for compatible Cisco networking equipment with supported SFP+ interfaces. Exact compatibility should be verified against the specific host platform and supported optics list.

Q9: What is the advantage of BiDi technology?
BiDi technology allows full-duplex optical communication over a single fiber strand, reducing the number of fiber strands required for a 10G link.

Q10: Is the Cisco SFP-10G-BXU-I suitable for industrial environments?
The "-I" industrial-temperature designation makes it suitable for supported applications requiring an industrial-temperature optical module. Host equipment environmental specifications should also be checked.

Q11: Is the SFP-10G-BXU-I hot-pluggable?
Yes. The SFP+ form factor is designed for hot-pluggable installation in compatible networking equipment.

Q12: Where can I buy the Cisco SFP-10G-BXU-I SFP+ Module in Bangladesh?
You can contact Datacom Technologies (BD) for Cisco SFP+ modules, BiDi optical transceivers, fiber-optic networking products, switches, routers, and enterprise networking solutions with competitive pricing and nationwide delivery.
