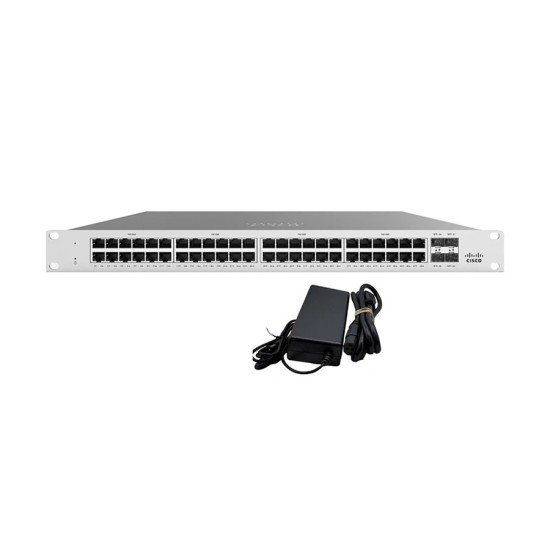

Cisco Meraki MS120-48LP-HW 48 Port Network Switch in Bangladesh
Cisco Meraki MS120-48LP-HW 48 Port Network Switch is a high-performance, cloud-managed Layer 2 access switch designed for small to medium-sized businesses, enterprise branch offices, and growing network infrastructures. This powerful 48-port Gigabit switch comes with PoE+ support, advanced security, and seamless cloud management through the Cisco Meraki dashboard. If you are looking for a reliable managed network switch in Bangladesh, the MS120-48LP-HW offers excellent performance, simplified deployment, and centralized control—making it an ideal solution for modern IT environments.
With features like remote troubleshooting, VLAN support, QoS, Layer 2 switching, and energy-efficient operation, this Cisco Meraki switch ensures stable connectivity for IP phones, wireless access points, surveillance cameras, and more.
Full Specifications of Cisco Meraki MS120-48LP-HW
| Feature | Specification |
|---|
| Model | Cisco Meraki MS120-48LP-HW |
| Series | Meraki MS120 Series |
| Switch Type | Cloud-Managed Access Switch |
| Layer | Layer 2 |
| Ports | 48 × 10/100/1000 Mbps Gigabit Ethernet RJ-45 (PoE+) |
| Uplink Ports | 4 × 1GbE SFP |
| Management Port | 1 × RJ-45 dedicated management |
| PoE Standard | IEEE 802.3af / 802.3at (PoE+) |
| PoE Power Budget | 370W total |
| Per Port Power | Up to 30W |
| Switching Capacity | 104 Gbps |
| Forwarding Rate | ~77.4 Mpps |
| MAC Address Table | 16K – 32K entries |
| VLAN Support | Up to 4094 VLANs |
| Layer 3 Features | DHCP Relay (basic L3) |
| QoS Features | 802.1p, DSCP, traffic shaping |
| Security Features | 802.1X, ACLs, DHCP snooping |
| Management | Meraki Cloud Dashboard (Web-based), SNMP, Syslog |
| Cloud Features | Zero-touch provisioning, remote monitoring, auto firmware updates |
| Stacking | Virtual stacking (cloud-based, not physical) |
| Power Supply | Internal AC (100–240V) |
| Power Consumption | ~37W idle / up to ~477W with PoE load |
| Form Factor | 1U Rack Mount |
| Dimensions | 44 × 34 × 4.4 cm |
| Weight | ~5.7 kg |
| Operating Temperature | 0°C to 45°C |
| Use Case | Enterprise, branch office, campus networks |
Best Application for Cisco Meraki MS120-48LP-HW in Bangladesh
The Cisco Meraki MS120-48LP-HW switch is widely used in Bangladesh across different industries. Some of the best applications include:
- Corporate offices and enterprise networks
- ISP and networking companies
- Educational institutions and campuses
- CCTV and IP surveillance systems
- Hotels, hospitals, and retail environments
- VoIP and IP telephony networks
Its PoE+ capability makes it perfect for powering IP cameras, access points, and VoIP phones without additional power supplies.
How to Install Cisco Meraki MS120-48LP-HW
Installing the Cisco Meraki MS120-48LP-HW is simple and user-friendly:
- Mount the switch in a rack or place it on a stable surface
- Connect power cable and turn on the device
- Connect uplink cable to your internet/router
- Plug Ethernet cables into required ports
- Claim the device in the Cisco Meraki Dashboard
- Configure VLAN, IP settings, and security policies
- Monitor and manage the network remotely
Compatibility Devices
The Cisco Meraki MS120-48LP-HW is compatible with a wide range of networking devices, including:
- Wireless Access Points (Cisco, Ubiquiti, Aruba)
- IP Phones (VoIP devices)
- IP Cameras (CCTV systems)
- Routers and Firewalls
- Network Servers and Storage SystemsDesktop PCs and Laptops
Why Choose Cisco Meraki Switch?
- Trusted Cisco Meraki brand
- Cloud-based smart networking
- Scalable and future-proof infrastructure
- Enterprise-grade performance
- Easy management with zero-touch provisioning
Where to Buy Cisco Meraki MS120-48LP-HW in Bangladesh
Get the Cisco Meraki MS120-48LP-HW 48 Port Network Switch from authorized Datacom Technologies (BD)—100% genuine product with full warranty and after-sales support.
Why Buy from Datacom Technologies (BD)?
In Bangladesh, you can purchase the original Cisco Meraki MS120-48LP-HW switch from Datacom Technologies (BD). We offer a wide range of Cisco network switches, enterprise networking devices, and IT infrastructure solutions. Order online or visit our showroom at Elephant Road, Dhaka to get the best price with a 1-year warranty and professional support.
