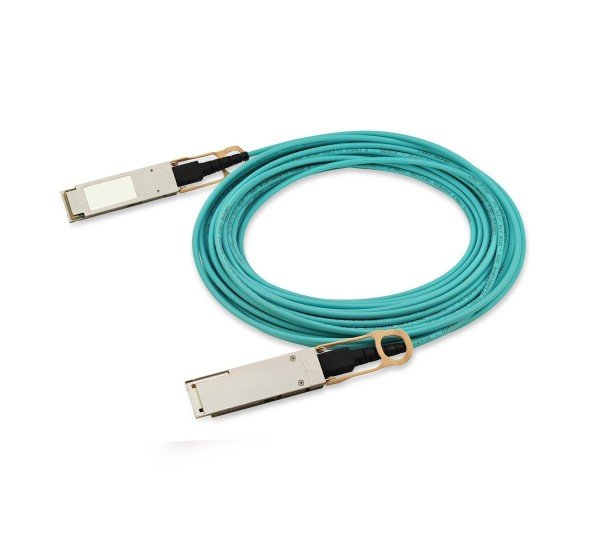

Cisco QSFP-100G-AOC2M Active Optical Cable 2m – High-Speed 100G Connectivity Solution
Cisco QSFP-100G-AOC2M Active Optical Cable (AOC) is a high-performance 100Gbps QSFP28 direct-attach fiber solution designed for ultra-fast and reliable data transmission over short distances. With a 2-meter length, this active optical cable is ideal for interconnecting switches, routers, and servers in modern data centers, cloud infrastructures, and enterprise networks.
This Cisco AOC cable delivers low latency, high bandwidth, and superior signal integrity compared to traditional copper DAC cables, making it a perfect choice for next-generation networking environments.
Full Specification of Cisco QSFP-100G-AOC2M
| Parameter | Specification |
|---|
| Product Name | Cisco QSFP-100G-AOC2M |
| Type | 100G QSFP28 Active Optical Cable (AOC) |
| Form Factor | QSFP28 to QSFP28 |
| Data Rate | 100 Gbps (4 × 25G lanes) |
| Cable Length | 2 meters |
| Cable Type | Active Optical Fiber (MMF-based assembly) |
| Supported Standard | 100GBASE-SR4 (IEEE 802.3bm) |
| Connector Type | QSFP28 on both ends |
| Wavelength | 850 nm (VCSEL-based transmission) |
| Transmission Medium | Multimode Fiber (internal AOC assembly) |
| Optical Components | 4× VCSEL transmitters + 4× PIN receivers |
| Power Consumption | ~3.5W per end |
| Digital Diagnostics | Supported (DOM/DDM via I2C) |
| Modulation Format | NRZ |
| Operating Temperature | 0°C to 70°C (Commercial grade) |
| Storage Temperature | -40°C to 85°C |
| Latency | Very low (near-zero additional latency) |
| FEC Requirement | Required on host device |
| Hot-Pluggable | Yes |
| Compliance | QSFP28 MSA, IEEE 802.3bm, RoHS |
Best Applications in Bangladesh
Cisco QSFP-100G-AOC2M is widely used in Bangladesh for modern IT and networking infrastructures, including:
- Data centers and cloud service providers
- Enterprise core and aggregation networks
- ISP backbone connectivity
- High-performance computing (HPC) systems
- Telecom and server-to-switch connections
- Server racks in large IT infrastructures
This cable ensures stable 100G connectivity for businesses in Dhaka, Chattogram, and across Bangladesh where high-speed data transfer is essential.
How to Install Cisco QSFP-100G-AOC2M
Installation is simple and does not require advanced technical setup:
- Power off the connected networking devices
- Insert QSFP28 connectors into compatible ports
- Ensure both ends are securely locked
- Power on devices and check link status
- Verify connection through network management system
No additional drivers or software are required due to its plug-and-play design.
Compatibility Devices
Cisco QSFP-100G-AOC2M is compatible with a wide range of Cisco networking equipment, including:
- Cisco Nexus Series Switches
- Cisco Catalyst 9000 Series
- Cisco ASR Routers
- Any QSFP28 100G supported devices
- Data center switches and enterprise routers
Always ensure device QSFP28 port support before purchase.
