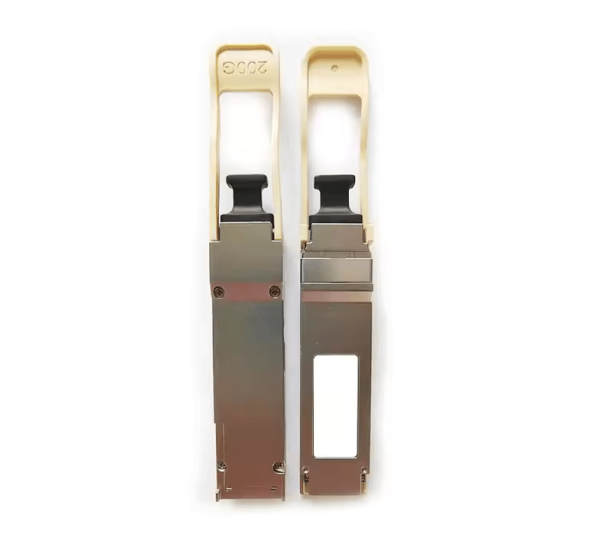

Cisco QSFP-DD-200G-SR4 Module

About Cisco QSFP-DD-200G-SR4 200G QSFP-DD SR4 Transceiver Module in Bangladesh

The Cisco QSFP-DD-200G-SR4 is described as a 200Gbps short-reach optical transceiver designed for high-speed data center and enterprise networking applications. It is intended for high-bandwidth interconnects using parallel multimode fiber and an MPO optical connector.

For Cisco's officially documented 200G SR4 product family, Cisco identifies the QSFP-200G-SR4-S as a 200G QSFP56 transceiver supporting 200GBASE-SR4 over OM4 multimode fiber. The official Cisco data sheet specifies an MPO-12 UPC connector, nominal 850nm wavelength and reach up to 100 meters over OM4 MMF. It can also support breakout to two 100GBASE-SR2 links or four 50GBASE-SR links. :contentReference[oaicite:2]{index=2}

Cisco 200G SR4 Transceiver Specifications & Features

Overview

Cisco's 200G SR4 optical transceiver family is designed to provide high-bandwidth 200GbE connectivity over short-distance multimode fiber links. The Cisco QSFP-200G-SR4-S uses four parallel fiber pairs and a nominal 850nm optical wavelength.

The official Cisco specification identifies a maximum reach of 70 meters over OM3 and 100 meters over OM4 and OM5 multimode fiber. :contentReference[oaicite:3]{index=3}

Buy Cisco 200G SR4 Transceiver in Bangladesh

Purchase Cisco high-speed optical transceivers from Datacom Technologies (BD) for enterprise networking, data center infrastructure and high-bandwidth switching environments in Bangladesh. Contact our sales team for Cisco optical modules, fiber networking products and compatible data center hardware.

Key Features

• 200Gbps high-speed Ethernet connectivity
• 200GBASE-SR4 optical standard
• 850nm nominal optical wavelength
• MPO-12 UPC optical connector
• Multimode fiber connectivity
• Up to 100m reach over OM4 MMF
• Up to 70m reach over OM3 MMF
• Up to 100m reach over OM5 MMF
• Supports 2 x 100G breakout
• Supports 4 x 50G breakout
• Designed for high-density data center networking
• Suitable for short-reach high-bandwidth interconnects

Applications

• Data Center Interconnects
• 200GbE Network Switching
• High-Performance Computing
• Enterprise Data Centers
• Server-to-Switch Connectivity
• Switch-to-Switch Interconnects
• High-Bandwidth Storage Networks
• Cloud Infrastructure
• Network Backbone Connectivity
• 2 x 100G Breakout Applications
• 4 x 50G Breakout Applications

200Gbps High-Speed Connectivity

The Cisco 200G SR4 optical module provides 200GbE connectivity for modern high-bandwidth network environments. It is designed for applications that require substantially greater bandwidth than conventional 100GbE links.

The 200G Ethernet signal is transmitted over four parallel fiber pairs, with each optical lane operating at 50Gbps. Cisco specifies the electrical interface as 200GAUI-4 / CEI-56G-VSR-PAM4. :contentReference[oaicite:4]{index=4}

850nm Multimode Optical Transmission

The Cisco 200G SR4 module operates at a nominal wavelength of 850nm and is designed for multimode fiber connectivity.

The SR4 architecture uses parallel multimode optical lanes, making it suitable for short-reach data center applications where multimode fiber provides a practical and economical cabling solution.

MPO-12 Connector

The Cisco QSFP-200G-SR4-S uses an MPO-12 UPC optical connector. The MPO interface accommodates the parallel optical lanes required for 200GBASE-SR4 transmission. :contentReference[oaicite:5]{index=5}

Use compatible MPO-12 multimode fiber cabling and ensure correct polarity and fiber-pair configuration when installing the module.

OM3, OM4 and OM5 Fiber Reach

Cisco's official documentation specifies 70 meters over OM3 and 100 meters over OM4 and OM5 multimode fiber for the QSFP-200G-SR4-S. :contentReference[oaicite:6]{index=6}

2 x 100G Breakout

The Cisco 200G SR4 module can be used for breakout applications. Cisco specifies support for 2 x 100GBASE-SR2 breakout links. This allows a single 200G port to connect to two compatible 100G interfaces where the host platform and network configuration support the breakout operation. :contentReference[oaicite:7]{index=7}

4 x 50G Breakout

The module can also support 4 x 50GBASE-SR breakout applications. This can be useful when connecting a high-density 200G interface to multiple 50G network ports. :contentReference[oaicite:8]{index=8}

Data Center Networking

200G optical connectivity is well suited to modern data center environments where server, switch and storage traffic increasingly requires higher aggregate bandwidth.

The SR4 architecture is particularly appropriate for short intra-data-center connections between switches, servers and other network devices using multimode fiber.

High-Bandwidth Storage Networks

High-speed optical modules can be used as part of storage networking infrastructure where large volumes of data must move between compute and storage systems.

The 200G bandwidth can provide substantial aggregate throughput for supported storage networking architectures, although actual application performance depends on the network equipment, protocols, cabling and endpoint capabilities.

High-Performance Computing

High-performance computing environments can benefit from high-bandwidth, low-distance optical interconnects between compute nodes, switches and aggregation infrastructure.

The 200G SR4 module is suited to short-reach multimode fiber environments where high aggregate bandwidth is required.

Cisco Platform Compatibility

Cisco states that its QSFP modules are supported on Cisco switches, routers and NICs as well as selected third-party host platforms and NICs. Compatibility should be checked against Cisco's Transceiver Modules Compatibility Matrix before deployment. :contentReference[oaicite:9]{index=9}

Because the exact designation QSFP-DD-200G-SR4 was not found in the current Cisco 200G portfolio documentation, customers should verify the exact Cisco PID printed on the module before ordering or installation.

Optical Link Planning

For reliable 200G SR4 operation, the transceiver must be paired with compatible multimode fiber, connector type, polarity and optical components.

• Use compatible OM3, OM4 or OM5 MMF
• Use MPO-12 compatible optical cabling
• Verify connector polish and polarity
• Stay within the specified link distance
• Verify transceiver compatibility on both endpoints
• Confirm supported breakout configuration where applicable

200G SR4 vs 200G FR4

Cisco's current 200G portfolio lists QSFP-200G-SR4-S for 100m OM4 MMF and QSFP-200G-FR4-S for 2km duplex SMF, illustrating the different reach and fiber requirements of SR4 and FR4 implementations. :contentReference[oaicite:10]{index=10}

Benefits

• 200Gbps network connectivity
• Short-reach multimode fiber architecture
• 850nm optical transmission
• MPO-12 optical connectivity
• Up to 100m OM4 reach
• Supports 2 x 100G breakout
• Supports 4 x 50G breakout
• Suitable for high-density data center networks
• Suitable for high-bandwidth server and storage interconnects
• Designed for modern 200GbE infrastructure

Why Buy from Datacom Technologies (BD)?

Datacom Technologies (BD) supplies enterprise networking hardware, Cisco optical transceivers, switches, routers, server components and data center infrastructure in Bangladesh. Customers can receive competitive pricing, technical consultation, deployment assistance and nationwide delivery.

• Call/WhatsApp: +8801748173213
• Email: sales@datacom.com.bd
• Alternative Email: datacomtechnologiesbd@gmail.com
• Office: Tropical Center, 218, Dr. Kudroti Khuda Road, New Elephant Road, Dhaka-1205, Bangladesh

Frequently Asked Questions (FAQ)

Q1: What is the Cisco QSFP-DD-200G-SR4?
The requested product name refers to a 200G SR4 optical transceiver. Cisco's currently documented 200G SR4 module is the QSFP-200G-SR4-S QSFP56 transceiver.

Q2: What is the data rate?
The Cisco 200G SR4 module provides a nominal 200Gbps / 200GE connection. :contentReference[oaicite:11]{index=11}

Q3: What wavelength does the 200G SR4 module use?
It uses a nominal 850nm optical wavelength. :contentReference[oaicite:12]{index=12}

Q4: What fiber type is required?
The module is designed for multimode fiber, including OM3, OM4 and OM5 installations within the specified reach limits.

Q5: What connector does it use?
The Cisco QSFP-200G-SR4-S uses an MPO-12 UPC connector. :contentReference[oaicite:13]{index=13}

Q6: What is the maximum reach?
Cisco specifies up to 70m over OM3 and 100m over OM4 and OM5 MMF. :contentReference[oaicite:14]{index=14}

Q7: Can the 200G SR4 module be used for 100G breakout?
Yes. Cisco specifies support for breakout to two 100GBASE-SR2 interfaces. :contentReference[oaicite:15]{index=15}

Q8: Can it support 50G breakout?
Yes. Cisco specifies support for four 50GBASE-SR links. :contentReference[oaicite:16]{index=16}

Q9: Is this a single-mode fiber module?
No. SR4 is intended for multimode fiber. For longer single-mode fiber connections, a compatible 200G FR4 solution may be more appropriate.

Q10: Is QSFP-DD-200G-SR4 an official Cisco PID?
The exact designation QSFP-DD-200G-SR4 could not be verified in Cisco's current 200G product documentation. Cisco officially documents QSFP-200G-SR4-S as its 200GBASE-SR4 QSFP56 module. Verify the exact PID on the physical product before purchase.

Q11: Where can I buy Cisco 200G SR4 transceivers in Bangladesh?
You can contact Datacom Technologies (BD) for Cisco optical transceivers, networking equipment and data center hardware with competitive pricing and nationwide delivery.
