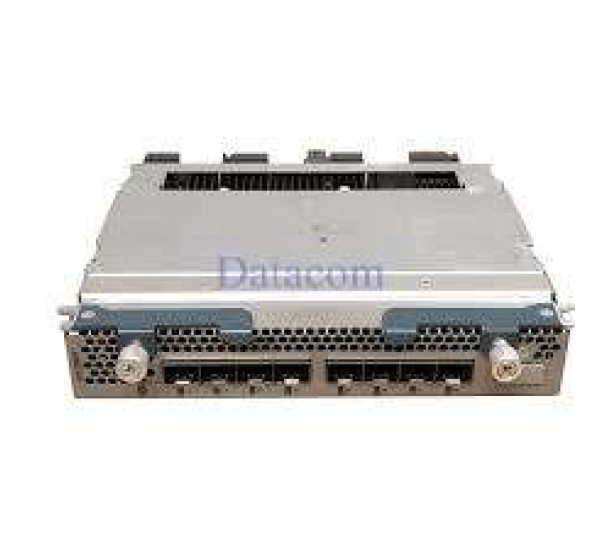

Cisco UCS-IOM-2304V4 – UCS 2304XP I/O Module (4 External + 8 Internal 40Gb Ports)
The Cisco UCS-IOM-2304V4 (UCS 2304XP I/O Module) is a high-performance Fabric Extender (FEX) designed for Cisco UCS blade server environments. It delivers ultra-fast 40Gbps unified connectivity, enabling seamless communication between blade servers and Cisco UCS Fabric Interconnects.
Built for enterprise data centers, this I/O module simplifies infrastructure by acting as an extension of the fabric interconnect—eliminating the need for traditional switching inside the chassis while improving scalability, performance, and management efficiency.
Full Specifications of Cisco UCS-IOM-2304V4
- Product Type: Fabric Extender (I/O Module)
- Model: UCS-IOM-2304 / 2304XP (V4 variant)
- Total Ports: 12 Ports
- External Uplinks: 4 × 40Gb QSFP+
- Internal Downlinks: 8 × 40Gb (to blade servers)
- Data Rate: 40Gb Ethernet / FCoE
- Switching Type: Fabric Extender (no local switching)
- Throughput: Up to ~960 Gbps forwarding capacity
- Form Factor: Rear module for UCS 5108 chassis
- Fabric Support: Cisco UCS Unified Fabric (LAN + SAN)
- Management: Cisco UCS Manager controlled
- Standards: IEEE 802.3, 802.1Q, QoS, DCBX
Key Features & Benefits
- High-Speed 40Gb Connectivity: Delivers ultra-fast data transfer for modern workloads
- Unified Fabric Architecture: Combines LAN, SAN, and management traffic
- No Local Switching Required: Works as a fabric extender, reducing complexity
- Scalable Infrastructure: Supports multiple chassis under a single management domain
- Centralized Management: Fully controlled via Cisco UCS Manager
- Redundancy Support: Dual IOMs per chassis for high availability
Best Applications in Bangladesh
The Cisco UCS-IOM-2304V4 is ideal for large-scale enterprise environments:
- Enterprise Data Centers: High-density blade server networking
- Cloud & Virtualization Platforms: VMware, Hyper-V, Kubernetes
- Banking & Financial Systems: High availability and low latency
- Telecom & ISP Infrastructure: High-throughput networking backbone
- Big Data & AI Workloads: Massive data movement and processing
- Government & Corporate IT: Centralized and scalable infrastructure
How to Install Cisco UCS-IOM-2304V4
- Power Off UCS Chassis: Ensure the system is powered down
- Locate Rear I/O Slot: On Cisco UCS 5108 blade chassis
- Insert I/O Module:
- Slide the module into the rear slot until fully seated
- Connect QSFP+ Uplinks:
- Connect to Cisco Fabric Interconnect (6200/6300/6400 series)
- Power On System
- Configure via UCS Manager:
- Auto-detect and configure fabric connections
⚠️ Recommended: Installation by certified engineers for optimal performance.
Compatibility Devices
- Cisco UCS 5108 Blade Server Chassis
- Cisco UCS B200 / B420 / B480 Blade Servers
- Cisco UCS Fabric Interconnects (6200 / 6300 / 6400 Series)
- Cisco UCS Manager (for centralized control)
???? Note: Each chassis supports up to 2 I/O modules for redundancy and increased bandwidth.
Where to Buy Cisco UCS-IOM-2304V4 in Bangladesh
Get the Cisco UCS-IOM-2304V4 – UCS 2304XP I/O Module (4 External + 8 Internal 40Gb) from authorized Datacom Technologies (BD)—100% genuine with full warranty and support.
Buy Cisco UCS-IOM-2304V4 at Best Price in Bangladesh from Datacom
You can get the original Cisco UCS-IOM-2304V4 from Datacom Technologies BD. We have a large collection of latest Cisco UCS blade server modules, fabric extenders, and enterprise networking components available. Order online or visit our Datacom shop at Elephant Road, Dhaka to get the best price.
The Cisco UCS-IOM-2304V4 is available with a 1-year warranty.
