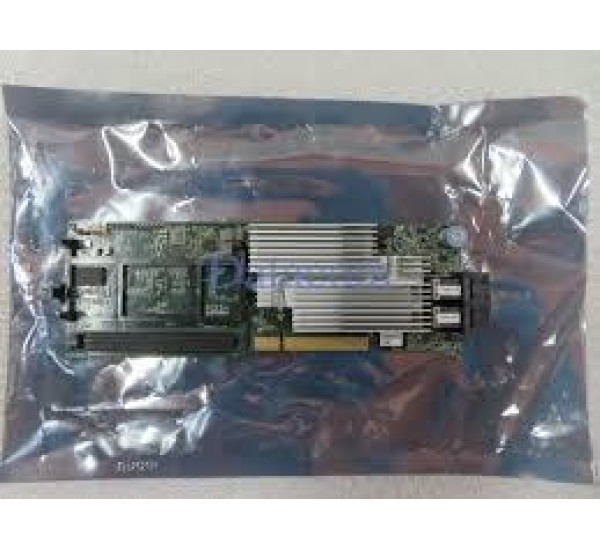

Cisco UCSC-MRAID12G V01 – 12G SAS Modular RAID Controller (PCIe x8, 8-Port)
The Cisco UCSC-MRAID12G V01 12G SAS Modular RAID Controller is a high-performance enterprise storage controller designed for Cisco UCS C-Series rack servers. Built on 12Gb/s SAS technology, this controller delivers fast data throughput, advanced RAID protection, and scalable storage performance—making it ideal for data centers and enterprise IT environments in Bangladesh.
Powered by LSI MegaRAID architecture, this RAID controller supports multiple RAID configurations, ensuring data redundancy, reliability, and optimized storage efficiency for mission-critical workloads.
Full Specifications of Cisco UCSC-MRAID12G V01
- Product Type: Modular SAS RAID Controller
- Model: UCSC-MRAID12G V01
- Interface: PCI Express 3.0 x8
- Ports: 8-Port Internal SAS (Mini SAS HD SFF-8643)
- Controller Chipset: LSI MegaRAID SAS 9361-8i
- Data Transfer Rate: Up to 12Gb/s SAS
- Cache Memory:
- 1GB / 2GB / 4GB DDR3 (model dependent)
- Supported Drives:
- RAID Levels Supported:
- RAID 0, 1, 5, 6, 10, 50, 60, JBOD
- Form Factor: Low-profile PCIe card
- Connectivity: Internal SAS connectors (2× SFF-8643)
Key Features & Benefits
- 12Gb/s SAS Speed: High-speed data transfer for enterprise workloads
- 8-Port Connectivity: Supports multiple drives for scalable storage
- Flexible RAID Support: Advanced data protection and redundancy
- High Cache Performance: Improves read/write efficiency and system responsiveness
- Enterprise Reliability: Built for continuous operation in data centers
- Seamless UCS Integration: Optimized for Cisco UCS server platforms
Best Applications in Bangladesh
The UCSC-MRAID12G V01 is ideal for:
- Enterprise Data Centers: Reliable RAID-based storage management
- Cloud Computing & Virtualization: VMware, Hyper-V environments
- Database Servers: High-speed and fault-tolerant storage
- Banking & Financial Systems: Secure data protection and uptime
- Corporate IT Infrastructure: ERP, CRM, and enterprise applications
- Backup & Disaster Recovery: RAID redundancy for data safety
How to Install Cisco UCSC-MRAID12G V01
- Power Off Server: Disconnect all power sources
- Open Server Chassis
- Insert RAID Controller:
- Install into PCIe x8 slot securely
- Connect SAS Cables:
- Attach Mini SAS HD cables to backplane
- Install Cache Module (Optional):
- Add FBWC module for enhanced performance
- Close Chassis & Power On
- Configure RAID:
- Access RAID BIOS or Cisco UCS Manager
- Create RAID arrays as needed
⚠️ Professional installation is recommended for enterprise environments.
Compatibility Devices
- Cisco UCS C220 M4 Rack Server
- Cisco UCS C240 M4 Rack Server
- Cisco UCS C460 M4 Servers
- Cisco UCS Storage Backplanes
- SAS & SATA HDD / SSD Drives
- VMware ESXi, Windows Server, Linux
???? Note: This controller is primarily designed for Cisco UCS M4 generation servers.
Where to Buy Cisco UCSC-MRAID12G V01 in Bangladesh
Get the Cisco UCSC-MRAID12G V01 – 12G SAS Modular RAID Controller (PCIe x8, 8-port) from authorized Datacom Technologies (BD)—100% genuine with full warranty and support.
Buy Cisco UCSC-MRAID12G V01 at Best Price in Bangladesh from Datacom
You can get the original Cisco UCSC-MRAID12G V01 from Datacom Technologies BD. We have a large collection of latest Cisco RAID controllers and enterprise server components available. Order online or visit our Datacom shop at Elephant Road, Dhaka to get the best price.
The Cisco UCSC-MRAID12G V01 is available with a 1-year warranty.
