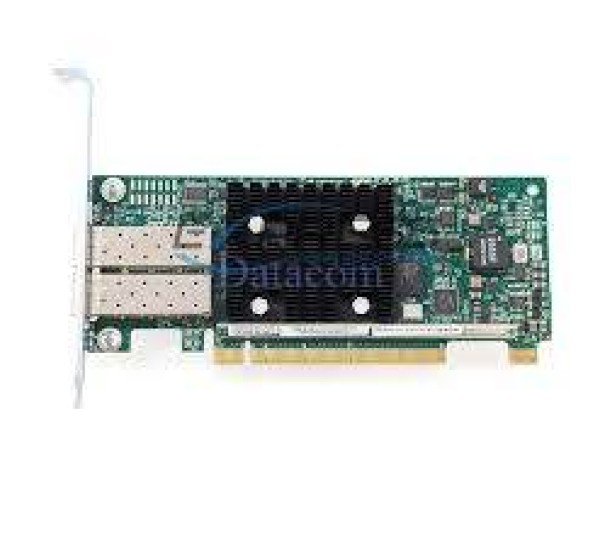

Cisco UCSC-PCIE-CSC-WBR02 – VIC 1225 PCIe Adapter (Dual Port 10Gb SFP+ CNA)
The Cisco UCSC-PCIE-CSC-WBR02 (VIC 1225) is a powerful PCIe-based Virtual Interface Card (VIC) designed for Cisco UCS C-Series rack servers. It delivers dual 10Gbps SFP+ connectivity with support for both Ethernet and Fibre Channel over Ethernet (FCoE), enabling unified networking and storage through a single adapter.
This enterprise-grade Converged Network Adapter (CNA) is built to simplify data center architecture, reduce hardware costs, and provide high-performance connectivity—making it an ideal solution for enterprise IT environments in Bangladesh.
Full Specifications of Cisco UCSC-PCIE-CSC-WBR02 (VIC 1225)
- Product Type: Virtual Interface Card (VIC) / CNA
- Model: UCSC-PCIE-CSC-WBR02 (VIC 1225)
- Ports: 2 × SFP+ (10Gbps each)
- Speed: 10Gbps per port (Total 20Gbps throughput)
- Interface: PCI Express 2.0 x16
- Connector Type: SFP+ (Fiber / DAC cables supported)
- Protocol Support:
- Ethernet
- Fibre Channel over Ethernet (FCoE)
- Virtual Interface Support:
- Up to 256 virtual interfaces (vNICs/vHBAs)
- Chipset: Cisco custom ASIC
- Standards Supported: IEEE 802.3ae, VLAN, QoS, DCB
- Form Factor: PCIe plug-in adapter
Key Features & Benefits
- Dual 10Gb SFP+ Ports: High-speed networking for enterprise workloads
- Converged Networking: Combines LAN & SAN traffic (FCoE support)
- Dynamic Virtual Interfaces: Configure NICs and HBAs as needed
- Reduced Infrastructure Cost: Less cabling, fewer adapters and switches
- High Virtualization Performance: Supports VM-FEX, SR-IOV, and cloud workloads
- Centralized Management: Fully integrated with Cisco UCS Manager
Best Applications in Bangladesh
The Cisco VIC 1225 PCIe adapter is widely used in:
- Enterprise Data Centers: Unified networking infrastructure
- Virtualization Platforms: VMware, Hyper-V, Citrix
- Cloud Computing Environments: Scalable and flexible networking
- Banking & Financial Systems: Secure, low-latency performance
- Telecom & ISP Networks: Reliable high-throughput connectivity
- Storage Networking: FCoE-based SAN integration
How to Install Cisco UCSC-PCIE-CSC-WBR02
- Power Off Server: Disconnect power completely
- Open Server Chassis
- Insert VIC Card:
- Install into PCIe x16 slot securely
- Install SFP+ Transceivers:
- Insert compatible fiber or DAC modules
- Connect Network Cables
- Power On Server
- Configure via UCS Manager:
- Create vNICs/vHBAs
- Apply QoS and network policies
⚠️ Professional installation is recommended for enterprise deployment.
Compatibility Devices
- Cisco UCS C220 M3 / M4 Rack Servers
- Cisco UCS C240 M3 / M4 Rack Servers
- Cisco UCS C460 M4 Servers
- Cisco UCS Fabric Interconnects
- SFP+ Optical Transceivers (SR/LR/DAC)
- Operating Systems: VMware ESXi, Windows Server, Linux
Where to Buy Cisco UCSC-PCIE-CSC-WBR02 in Bangladesh
Get the Cisco UCSC-PCIE-CSC-WBR02 VIC 1225 PCIe Adapter from authorized Datacom Technologies (BD)—100% genuine with full warranty and support.
Buy Cisco UCSC-PCIE-CSC-WBR02 at Best Price in Bangladesh from Datacom
You can get the original Cisco UCSC-PCIE-CSC-WBR02 from Datacom Technologies BD. We have a large collection of latest Cisco UCS VIC adapters and enterprise server networking components available. Order online or visit our Datacom shop at Elephant Road, Dhaka to get the best price.
The Cisco UCSC-PCIE-CSC-WBR02 VIC 1225 is available with a 1-year warranty.
