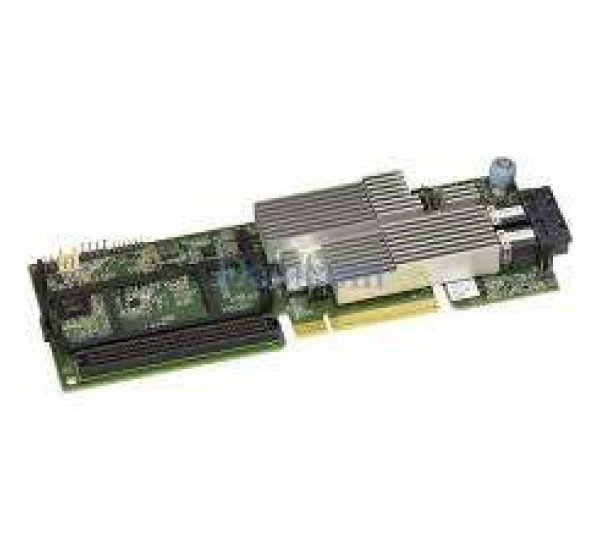

Cisco UCSC-RAID-M6SD SAS RAID Controller for UCS M6 – High-Density Enterprise Storage Controller
The Cisco UCSC-RAID-M6SD SAS RAID Controller is a powerful, high-density RAID solution designed specifically for Cisco UCS M6 rack servers. Built with 12Gb/s SAS technology and advanced RAID architecture, this controller delivers superior performance, scalability, and data protection for enterprise environments.
Engineered for large-scale storage deployments, the UCSC-RAID-M6SD supports a high number of drives and includes 4GB Flash-Backed Write Cache (FBWC) to ensure data integrity and improved performance even during unexpected power failures. It is ideal for organizations in Bangladesh that require high-capacity storage systems with maximum reliability.
Full Specifications of Cisco UCSC-RAID-M6SD
- Product Type: SAS RAID Controller (Plug-in Module)
- Model: UCSC-RAID-M6SD
- Interface: 12Gb/s SAS / SATA
- Cache Memory: 4GB Flash-Backed Write Cache (FBWC)
- RAID Levels Supported:
- RAID 0, 1, 5, 6, 10, 50, 60, JBOD
- Maximum Drive Support:
- Up to 24–28 SAS/SATA drives depending on configuration
- Ports: Up to 28 internal SAS ports
- Controller Type: Hardware RAID Controller
- Form Factor: Modular RAID controller for Cisco UCS M6
- Supported Devices: SAS & SATA HDD/SSD arrays
- Features:
- Flash-backed cache with SuperCap
- High IOPS and throughput performance
- Enterprise-grade redundancy
- Advanced RAID configuration and monitoring
Best Applications for Cisco UCSC-RAID-M6SD in Bangladesh
The UCSC-RAID-M6SD is ideal for high-capacity enterprise environments:
- Large Data Centers: Supports high-density storage arrays
- Cloud & Virtualization Platforms: Efficient multi-drive RAID management
- Banking & Financial Institutions: Secure and fault-tolerant storage
- Telecom & ISP Infrastructure: Handles heavy data traffic and uptime
- Big Data & Analytics: Suitable for large datasets and processing
- Enterprise Backup Systems: Reliable RAID for data protection
How to Install Cisco UCSC-RAID-M6SD RAID Controller
Follow these installation steps:
- Power Off the Server: Disconnect power from the UCS M6 server
- Open Server Cover: Carefully remove chassis lid
- Insert RAID Controller:
- Install into the dedicated RAID slot/module interface
- Connect SAS Cables:
- Connect cables to backplane (Riser connectors as required)
- Attach SuperCap (if separate): Ensure cache protection module is connected
- Close Chassis & Power On
- Configure RAID:
- Use RAID BIOS or Cisco UCS Manager to create RAID arrays
⚠️ Professional installation is recommended for optimal performance.
Compatibility Devices
The Cisco UCSC-RAID-M6SD is compatible with:
- Cisco UCS C240 M6 Rack Server
- Cisco UCS C245 M6 Rack Server
- Cisco UCS M6 SFF (24-drive) configurations
- SAS & SATA HDD/SSD Drives
- Cisco UCS Storage Backplanes
- VMware ESXi, Windows Server, Linux OS
