Cisco WS-C3850-48P-E 48-Port Gigabit PoE+ Switch Specification Table:
| Specification | Details |
|---|
| Product Model | Cisco WS-C3850-48P-E |
| Product Series | Cisco Catalyst 3850 Series |
| Switch Type | Managed Layer 3 Access Switch |
| Ports | 48 × 10/100/1000 Mbps Gigabit Ethernet (PoE+) |
| PoE Support | IEEE 802.3at PoE+ |
| Total PoE Power Budget | 435W |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 130.95 Mpps |
| Stacking Technology | Cisco StackWise-480 |
| Stack Bandwidth | 480 Gbps |
| Maximum Stack Members | Up to 9 switches |
| MAC Address Table | 32K entries |
| VLAN Support | Up to 4,000 VLAN IDs |
| RAM | 4 GB |
| Flash Memory | 2 GB |
| Network Modules | 1 × uplink module slot (1G / 10G options) |
| Uplink Options | 1G / 10G via C3850-NM modules |
| Management | CLI, Web UI, SNMP, Cisco IOS XE |
| Console Ports | RJ-45 + USB console |
| Routing Features | Static routing, RIP, OSPF, EIGRP (license dependent) |
| Security Features | 802.1X, ACLs, DHCP snooping, port security |
| Form Factor | 1U Rack Mount |
| Cooling | Built-in fan system |
| Power Supply | Hot-swappable internal PSU |
| Use Case | Enterprise LAN, campus access layer, IP phones, CCTV, enterprise Wi-Fi |

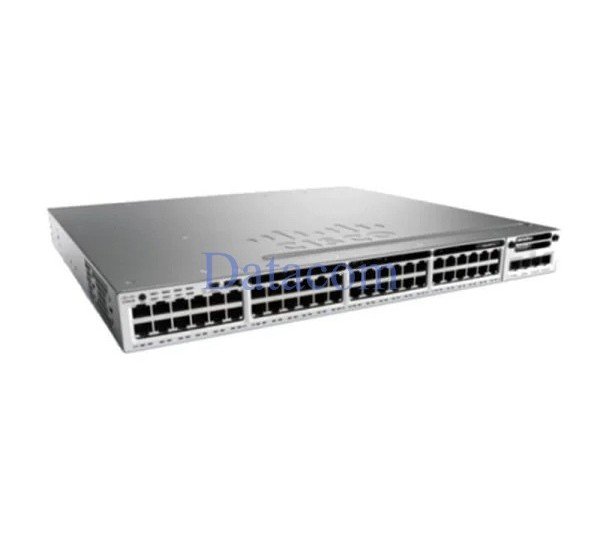

Cisco WS-C3850-48P-E 48-Port Gigabit PoE+ Switch – Enterprise Layer 3 Managed Switch
The Cisco WS-C3850-48P-E Catalyst Switch is a high-performance enterprise-grade 48-port Gigabit Ethernet PoE+ switch designed for large-scale business networks, data centers, and campus environments. It delivers reliable Layer 3 switching, advanced security, and high-speed connectivity, making it a trusted solution for modern IT infrastructures.
Built with 48 x 10/100/1000 Mbps PoE+ ports, this switch can power devices such as IP phones, wireless access points, and IP cameras directly through Ethernet cables. With a 435W PoE power budget, it efficiently supports multiple powered devices without requiring additional power adapters.
The Cisco 3850 series is designed for scalability and performance. It offers a switching capacity of 176 Gbps and a forwarding rate of 130.95 Mpps, ensuring smooth traffic handling even in high-demand environments. It also supports stacking of up to 9 switches with StackWise-480 technology, allowing unified management and increased network capacity.
This model includes advanced Layer 3 features such as VLAN management, routing protocols, QoS, and security controls, making it ideal for enterprise networks requiring stability, segmentation, and high uptime. It is widely used in corporate offices, ISPs, universities, and data centers.
Key Features:
- 48 Gigabit RJ45 ports with PoE+ support
- 435W total PoE power budget
- Layer 3 managed enterprise switch
- 176 Gbps switching capacity
- StackWise-480 support (up to 9 switches)
- Ideal for IP phones, APs, and surveillance systems
- Advanced security, VLAN, and routing features
Why Choose Cisco WS-C3850-48P-E from Datacom Technologies BD
The Cisco WS-C3850-48P-E is a powerful enterprise-grade switch designed for businesses that need high performance, scalability, and reliable network control. Buying it from Datacom Technologies BD ensures you get authentic hardware with proper support and trusted delivery in Bangladesh.
Why Buy from Datacom Technologies BD
Choosing Datacom Technologies BD gives you:
- ✔ Genuine Cisco equipment
- ✔ Competitive pricing in Bangladesh
- ✔ Local technical support
- ✔ Reliable after-sales service
- ✔ Faster delivery & sourcing help
This reduces risk of fake/refurbished products in the local market.
Frequently Asked Questions (FAQ)
1. What is Cisco WS-C3850-48P-E used for?
The Cisco Catalyst WS-C3850-48P-E is an enterprise-grade Layer 3 managed PoE+ switch designed for campus networks, enterprise access layers, and data network infrastructure. It provides both wired connectivity and power (PoE+) to devices like IP phones, access points, and IP cameras.
2. How many ports does Cisco WS-C3850-48P-E have?
It comes with:
- 48 × Gigabit Ethernet (10/100/1000 Mbps) RJ45 ports
- All ports support PoE+ (Power over Ethernet Plus)
3. What is the PoE power capacity of this switch?
The switch provides:
- Up to 435W total PoE budget
- Enough to power multiple devices like:
- IP phones
- Wireless access points
- CCTV cameras
4. What is the switching capacity of WS-C3850-48P-E?
It delivers:
- 176 Gbps switching capacity
- 130.95 Mpps forwarding performance
This makes it suitable for high-traffic enterprise environments.
5. Does Cisco 3850-48P-E support Layer 3 routing?
Yes, it is a Layer 3 managed switch, meaning it supports:
- Inter-VLAN routing
- Static routing
- Dynamic routing protocols (depending on IOS license)
6. Can this switch be stacked?
Yes. It supports Cisco StackWise technology:
- Up to 9 switches stacking
- High stack bandwidth up to 480 Gbps
7. What uplink modules does it support?
It supports modular uplink options such as:
- 1G SFP modules
- 10G SFP+ modules
Common modules:
- C3850-NM-4-1G
- C3850-NM-2-10G
- C3850-NM-4-10G
8. Is Cisco WS-C3850-48P-E good for enterprise use?
Yes, it is widely used in:
- Corporate offices
- ISP access networks
- University campuses
- Data center edge networks
It is known for stability, scalability, and strong security features.
Buy Cisco WS-C3850-48P-E 48-Port Gigabit PoE+ Switch From Datacom Technologies BD
In Bangladesh, you can get original Cisco WS-C3850-48P-E 48-Port Gigabit PoE+ Switch From Datacom. We have a large collection of latest Cisco network Switch to purchase. Order Online Or Visit Our Office to get yours at lowest price. The Cisco WS-C3850-48P-E 48-Port Gigabit PoE+ Switch comes with 1 year warranty.
