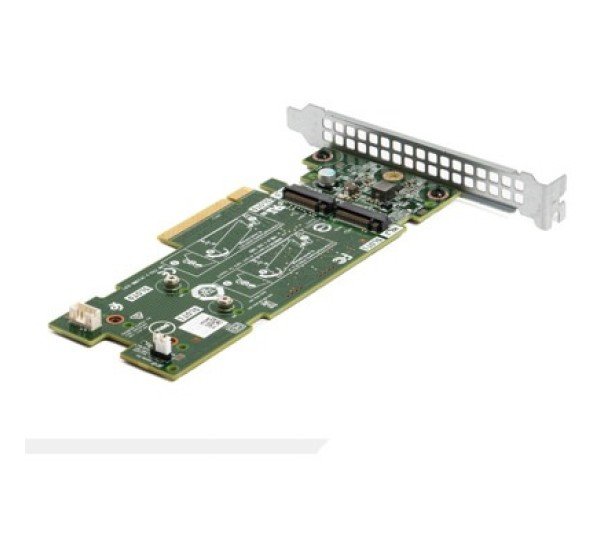

Dell M7W47 Boss-S1 M.2 SATA PCI Adapter CardSpecification | Specification TableDetails |
|---|
| Model / Part Number | M7W47 |
| Product Name | Dell Boss‑S1 M.2 SATA PCI Adapter Card |
| Category | Boot Optimized Storage Solution / Adapter Card |
| Function | PCIe adapter for M.2 SATA SSD boot drives |
| Interface | PCIe Gen 2.0 ×8 physical connector (host) |
| Internal Bus Lanes | PCIe Gen 2.0 ×2 lanes electrically |
| Supported Drive Type | M.2 SATA SSDs (6 Gb/s) |
| Number of M.2 Slots | 2 |
| RAID Support | RAID 1 (hardware mirroring) |
| Non‑RAID Support | Yes — supports up to two standalone drives |
| Maximum Virtual Disks | 1 |
| Stripe Size (RAID) | Default 64 KB |
| Cache Policy | Write‑through only (no non‑volatile cache) |
| Status LEDs | Not available on the card |
| Form Factor | PCIe add‑in card (low‑profile & full‑height compatible) |
| Typical Use Case | OS boot drive with redundancy (mirrored M.2 SATA SSDs) |
| Compatible Storage | 6 Gb/s SATA M.2 SSDs (dual) |
| Typical Use Environment | Dell PowerEdge servers with BOSS‑S1 slot |
Description For Dell M7W47 Boss-S1 M.2 SATA PCI Adapter Card
The Dell M7W47 Boss‑S1 M.2 SATA PCI Adapter Card is a boot‑optimized storage expansion card designed for Dell PowerEdge servers. It enables the installation of two M.2 SATA SSDs as internal boot volumes and provides hardware RAID 1 support for redundancy, which protects the operating system from single‑drive failure. The card connects to the server via a PCIe Gen 2.0 ×8 interface, though each M.2 slot runs over two PCIe lanes, and is compatible with both low‑profile and full‑height server chassis.
With support for 6 Gb/s M.2 SATA SSDs, the Boss‑S1 card is ideal for segregating the operating system’s storage from enterprise application data drives, improving server performance and reliability. It offers a single virtual disk configuration with a fixed 64 KB RAID stripe size when RAID 1 is enabled, and also supports non‑RAID mode where each SSD operates independently. The adapter does not include its own battery backup or non‑volatile cache — it relies on standard drive behavior and write‑through caching.
Commonly deployed as part of Dell’s Boot Optimized Storage Solution in PowerEdge servers, this card helps optimize system uptime and maintenance by allowing hot‑swappable boot SSDs and redundant boot configurations. It’s especially useful in environments needing fast, reliable boot performance with mirrored drives without consuming larger drive bays or complicating storage controller configurations.
Dell M7W47 BOSS-S1 M.2 SATA PCI Adapter Card | Datacom Technologies BD
Reliable Storage Adapter for Dell Servers
The Dell M7W47 BOSS-S1 M.2 SATA PCI Adapter Card is a high-quality server accessory designed to support Dell BOSS-S1 controllers by providing a secure and optimized connection for M.2 SATA SSDs. It enhances storage flexibility in Dell server environments and is a must-have component in modern enterprise infrastructure.
What Is the Dell M7W47 BOSS-S1 M.2 SATA PCI Adapter Card?
The M7W47 PCI adapter card enables installation of M.2 SATA SSDs into compatible Dell PowerEdge servers using the BOSS-S1 architecture. It works in conjunction with Dell BOSS controllers to ensure reliable boot storage, RAID support, and increased system performance.
Key Benefits
Optimized for Dell BOSS-S1 Controllers
The adapter is engineered specifically for use with Dell BOSS-S1 RAID and boot controllers, ensuring seamless compatibility and stability on supported PowerEdge server generations.
Supports M.2 SATA SSDs
This PCI adapter enables easy installation of M.2 SATA SSDs, letting businesses leverage fast, compact, and efficient storage for:
- Operating system boot drives
- RAID configurations
- High-availability environments
Enhanced Server Storage Efficiency
By using M.2 drives:
- Server drive bays remain free for bulk storage
- Cooling and internal airflow are improved
- Storage deployment becomes more flexible and cost-effective
Improved Boot and Data Performance
When paired with the proper Dell BOSS controller, this adapter helps increase boot speeds and data access times — ideal for virtualization, database servers, and mission-critical workloads.
Perfect for Enterprise & Data Center Use
The Dell M7W47 adapter card is ideal for enterprise environments that demand performance, reliability, and scalability:
- Virtualization platforms (VMware, Hyper-V)
- Cloud workloads
- Database and application servers
- High availability clustered infrastructure
When you buy the Dell M7W47 BOSS-S1 M.2 SATA PCI Adapter from Datacom Technologies BD, you benefit from:
- ✅ 100% genuine Dell server components
- ✅ Best price in Bangladesh (BD)
- ✅ Fast nationwide delivery
- ✅ Professional pre-sales & post-sales support
- ✅ Expert compatibility guidance
We are a trusted IT hardware supplier serving businesses across Bangladesh with authentic enterprise solutions.
Buy Dell M7W47 Boss-S1 M.2 SATA PCI Adapter Card at the Best Price from Datacom Technologies BD.
In Bangladesh, you can get Dell M7W47 Boss-S1 M.2 SATA PCI Adapter Card From Datacom Technologies BD. We have a large collection of latest Dell Boss Card to purchase for your Server. Order Online Or Visit our Office to get yours at lowest price. The Dell M7W47 Boss-S1 M.2 SATA PCI Adapter Card comes with 1 Year warranty.
