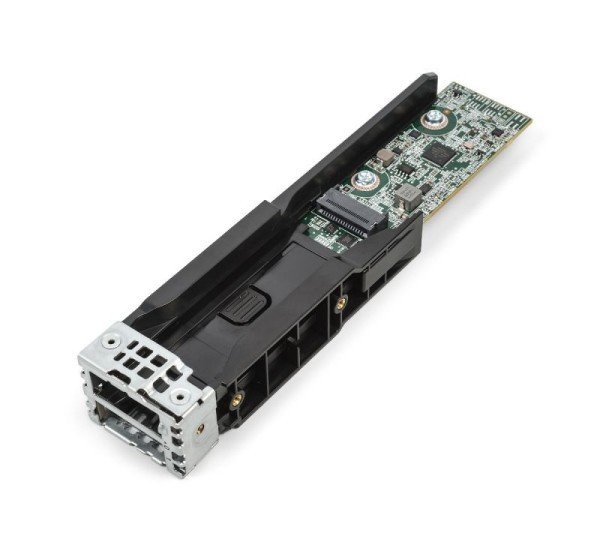

Dell PowerEdge BOSS-S2 V3 M.2 Boot RAID Modular Card - 0PKH3TSpecification |
Details |
|---|
| Model / Part Number | 0PKH3T |
| Product Name | Dell PowerEdge BOSS-S2 V3 M.2 Boot RAID Modular Card |
| Category | Boot Optimized Storage Solution (BOSS-S2) |
| Supported Drive Type | 6 Gb/s M.2 SATA SSDs (typically 80 mm length) |
| Number of SSD Slots | 2 |
| Maximum Supported Drives | 2 M.2 SATA SSDs |
| Supported RAID Levels | RAID 1 (mirrored) and Non-RAID (independent disks) |
| Maximum Virtual Disks | 1 |
| Default RAID Stripe Size | 64 KB |
| Cache Policy | Write-through |
| PCIe Interface | PCIe (Gen2) host interface (varies by server) |
| Hot-Plug Support | Yes (M.2 SSDs) |
| Drive Activity LEDs | Yes |
| Configuration Utility | RAID configuration available in UEFI/BIOS and server management tools |
| Typical Use Case | Redundant boot/storage for OS on Dell PowerEdge servers |
| Compatibility | Select 14th & 15th Gen Dell PowerEdge systems (rear-mounted boot module setup) |
| Carrier / Cable Requirement | Requires appropriate M.2 carriers and signal/power cables supplied with server or as separate parts |
| Typical Supported SSD Capacities | Up to ~480 GB per M.2 SSD (depends on Dell-validated drives) |
| Mounting Location | Rear internal module slot (not PCIe card slot in many systems) |
Description For Dell PowerEdge BOSS-S2 V3 M.2 Boot RAID Modular Card - 0PKH3T
The Dell PowerEdge BOSS-S2 V3 M.2 Boot RAID Modular Card (0PKH3T) is a specialized storage solution designed to provide redundant and reliable boot storage for Dell PowerEdge 14th and 15th generation servers. It supports two M.2 SATA SSDs configured in either hardware RAID 1 for redundancy or in non-RAID mode to present each drive independently to the system. The module enables critical operating system volumes to be stored separately from primary data drives, helping to maximize front-accessible drive capacity for application or data storage.
Engineered as a boot-optimized RAID subsystem, the BOSS-S2 V3 uses a PCIe Gen2 host interface and accepts up to two SATA-based M.2 SSDs (commonly up to ~480 GB each when using Dell-validated drives). The controller provides hot-plug support and drive activity LEDs for serviceability, and uses a fixed 64 KB RAID stripe size with write-through cache policy to maintain data integrity for boot workloads. RAID configuration is typically done through the server’s UEFI/BIOS or management utilities, and the module integrates with standard server management tools for monitoring.
This card is typically mounted in a rear internal module area rather than a standard PCIe slot, and requires the correct M.2 carriers and power/signal cables provided with the server or as separate parts. It’s ideal for enterprise environments where high availability and uptime are essential, as RAID-1 ensures the system can continue to boot if one SSD fails.
Dell PowerEdge BOSS-S2 V3 M.2 Boot RAID Modular Card – 0PKH3T | Datacom Technologies BD
Enhance Boot Performance & Reliability for Dell PowerEdge Servers
The Dell PowerEdge BOSS-S2 V3 M.2 Boot RAID Modular Card (0PKH3T) is a purpose-built boot optimized storage solution engineered to boost system availability and streamline operating system deployments on Dell PowerEdge 14th and 15th Generation servers. This enterprise controller module helps offload boot duties from main storage, enabling better performance, redundancy, and data center efficiency.
Key Features & Benefits
Dedicated Boot RAID Solution
The BOSS-S2 V3 modular card provides a dedicated RAID storage subsystem for the operating system using dual M.2 SATA SSDs. This approach separates OS storage from data storage, improving stability and freeing drive bays for other workloads.
RAID 1 & Non-RAID Support
Configure the module in hardware RAID 1 (mirroring) for enhanced availability or in non-RAID mode depending on your requirements — ideal for mission-critical systems where uptime matters.
Supports Enterprise-Class M.2 SSDs
Compatible with validated 80 mm M.2 SATA SSDs (e.g., Intel or Micron models in 240 GB / 480 GB capacities), offering redundancy and reliability for OS boot volumes.
Engineered for Hot-Plug & Easy Management
The BOSS-S2 supports hot-plug capabilities, drive LED activity indicators, and firmware control via tools like iDRAC, OpenManage, and UEFI RAID utilities for simplified maintenance and monitoring.
Frees Server Drive Bays
Using this module lets you place OS boot drives separately, leaving front-bay storage free for valuable data, NVMe, or capacity drives—maximizing server resource utilization.
Compatibility & Supported Servers
The Dell BOSS-S2 V3 (0PKH3T) is engineered for deployment in select Dell PowerEdge 14G and 15G rack servers, including models like:
- PowerEdge R350
- PowerEdge R550
- PowerEdge R650
- PowerEdge R750
- PowerEdge T550
…and similar systems that support rear-facing BOSS-S2 modules.
This modular RAID solution helps ensure your server boot subsystem is optimized, redundant, and manageable for enterprise workloads.
Ideal Use Cases
- ???? Enterprise server boot drives (OS / firmware)
- ???? Virtualized infrastructure (VMware, Hyper-V, etc.)
- ☁️ Cloud and hyper-converged deployments
- ???? Mission-critical business applications requiring high uptime
When you purchase the Dell PowerEdge BOSS-S2 V3 M.2 Boot RAID Modular Card (0PKH3T) from Datacom Technologies BD, you get:
- ✅ 100% genuine Dell server hardware
- ✅ Competitive best price in Bangladesh (BD)
- ✅ Fast nationwide delivery
- ✅ Professional pre-sales and after-sales support
- ✅ Expert guidance on compatibility and installation
We are a trusted enterprise solution provider in Bangladesh focused on helping businesses build reliable, high-performance infrastructure.
Buy Dell PowerEdge BOSS-S2 V3 M.2 Boot RAID Modular Card - 0PKH3T at the Best Price from Datacom Technologies BD.
In Bangladesh, you can get Dell PowerEdge BOSS-S2 V3 M.2 Boot RAID Modular Card - 0PKH3T From Datacom Technologies BD. We have a large collection of latest Server HDD to purchase for your Server. Order Online Or Visit our Office to get yours at lowest price. The Dell PowerEdge BOSS-S2 V3 M.2 Boot RAID Modular Card - 0PKH3T comes with 1 Year warranty.
