Dell QLE2772 QLogic 32Gb Dual Port Fibre Channel SFP+ HBA Controller Specification Table:
| Specification | Details |
|---|
| Product Model | Dell QLE2772 (QLogic 2772 series) |
| Device Type | Fibre Channel Host Bus Adapter (HBA) |
| Interface | PCI Express 4.0 x8 |
| Ports | 2 × 32Gb Fibre Channel Ports |
| Port Type | SFP+ (FC optical transceivers) |
| Link Speed | 32Gb / 16Gb / 8Gb auto-negotiation |
| Maximum Data Rate | Up to 32 Gbps per port |
| Total Bandwidth | Up to 64 Gbps aggregate |
| Protocol | Fibre Channel (FC), FC-NVMe support |
| Topology | Point-to-point, switched fabric SAN |
| Optical Wavelength | 850 nm (shortwave optics) |
| Distance Support | Up to 100m (OM4 fiber at 32G) |
| Performance | Up to ~2M IOPS (model dependent) |
| Offload Features | Hardware FC protocol processing |
| Virtualization Support | NPIV (N-Port ID Virtualization) |
| Boot Support | SAN Boot (FC boot capability) |
| OS Support | VMware ESXi, Windows Server, Linux |
| Management Tools | QConvergeConsole (QCC) |
| Form Factor | Low Profile / Full Height bracket |
| Cooling | Passive heatsink (server airflow required) |
| Power Consumption | ~12–15W typical |
| Compatible Servers | Dell PowerEdge R640, R740, R750, R760, R840, R940 series |

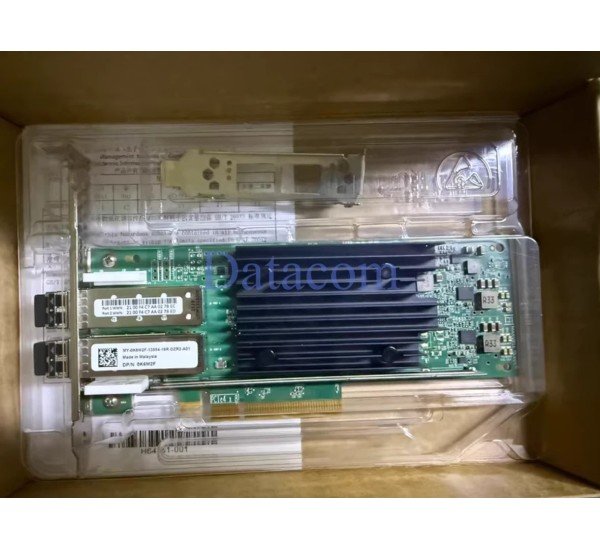

Dell QLogic QLE2772 Dual Port 32Gb Fibre Channel HBA Controller – High-Speed Enterprise Storage Adapter
The Dell QLogic QLE2772 32Gb Dual Port Fibre Channel HBA Controller is a high-performance storage networking adapter designed for enterprise servers and mission-critical data center environments. Built for ultra-fast 32Gb Fibre Channel connectivity, it delivers exceptional performance, low latency, and reliable storage access for modern SAN (Storage Area Network) infrastructures.
This advanced dual-port HBA (Host Bus Adapter) provides redundant and high-bandwidth connectivity to Fibre Channel storage systems, ensuring continuous data availability and improved fault tolerance. It is commonly used in Dell PowerEdge servers, making it a trusted choice for enterprise virtualization, cloud storage, and high-performance database workloads.
Powered by QLogic’s latest generation architecture, the QLE2772 supports advanced features such as NVMe over Fibre Channel (NVMe/FC), NPIV virtualization, and hardware-level offloading, which significantly reduces CPU overhead and improves overall system efficiency. It is optimized for environments that require extremely fast storage communication and maximum uptime.
With support for 32Gb/s per port (dual-port configuration), this HBA provides extremely high throughput, making it ideal for demanding workloads such as enterprise databases, virtualization clusters (VMware, Hyper-V), and large-scale storage systems.
Key Features:
- Dual-port 32Gb Fibre Channel connectivity
- PCIe high-speed interface for enterprise servers
- Designed for Dell PowerEdge server compatibility
- Supports NVMe over Fibre Channel (NVMe/FC)
- Hardware offloading reduces CPU utilization
- High IOPS performance for storage-intensive workloads
- Ideal for SAN, virtualization, and cloud environments
Why Choose Dell QLE2772 from Datacom Technologies BD
The Dell QLE2772 32Gb Dual Port Fibre Channel HBA is a high-performance enterprise-grade host bus adapter designed for modern data centers that demand ultra-fast storage connectivity, reliability, and scalability. When you purchase from Datacom Technologies BD, you are not just getting hardware—you are investing in performance, authenticity, and trusted local support in Bangladesh.
Why Buy from Datacom Technologies BD
- 100% original enterprise networking hardware
- Competitive price in Bangladesh market
- Technical support for installation & configuration
- Fast delivery across Bangladesh
- Trusted supplier for server & networking components
Frequently Asked Questions (FAQ)
1. What is Dell QLE2772 QLogic 32Gb Fibre Channel HBA used for?
The Dell QLE2772 is a high-performance Fibre Channel Host Bus Adapter (HBA) designed for connecting servers to SAN (Storage Area Network) systems. It enables ultra-fast 32Gb Fibre Channel storage connectivity for enterprise data centers, virtualization, and mission-critical workloads.
2. Is Dell QLE2772 a network card or storage controller?
It is not a normal Ethernet NIC.
It is a Fibre Channel HBA, meaning it is used for:
- Storage traffic (SAN communication)
- Not standard LAN networking
3. How many ports does Dell QLE2772 have?
It comes with:
- Dual-port (2 × SFP+) Fibre Channel interfaces
- Each port operates independently for redundancy and performance
4. What is the speed of QLE2772 HBA?
Each port supports:
- Up to 32Gbps Fibre Channel
- Also backward compatible with 16Gb and 8Gb FC speeds
5. What type of connectors does it use?
It uses:
- SFP+ Fibre Channel transceivers
- Optical fiber cables (LC connectors)
- No RJ45 copper support
6. What is the main use of this HBA in data centers?
It is used for:
- Connecting servers to SAN storage arrays
- High-speed storage access
- Virtualization platforms (VMware, Hyper-V)
- Mission-critical database workloads
7. Is Dell QLE2772 compatible with PowerEdge servers?
Yes, it is compatible with many Dell PowerEdge servers such as:
- R640 / R740 / R740xd
- R750 / R760 series
- R940 / R960 high-end systems
Buy Dell QLE2772 QLogic 32Gb Dual Port Fibre Channel SFP+ HBA Controller From Datacom Technologies BD
In Bangladesh, you can get original Dell QLE2772 QLogic 32Gb Dual Port Fibre Channel SFP+ HBA Controller From Datacom. We have a large collection of latest Dell FC HBA Card to purchase. Order Online Or Visit Our Office to get yours at lowest price.
