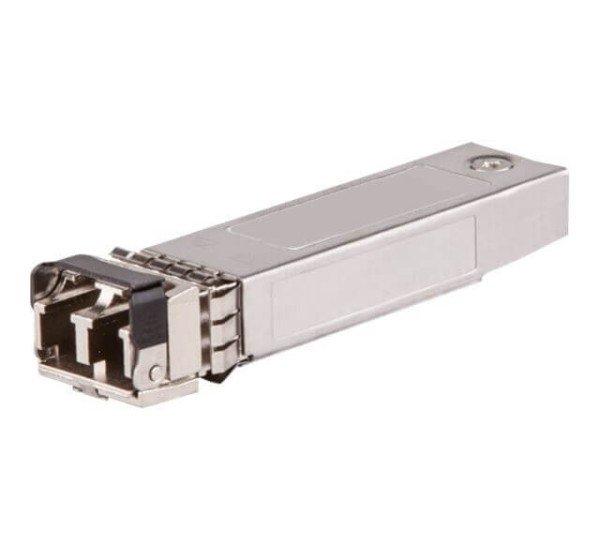

Finisar FTLX1471D3BCL 10Gbps 10KM SFP+ Transceiver Module
The Finisar FTLX1471D3BCL is a 10Gbps SFP+ optical transceiver designed for high-speed Ethernet connectivity over single-mode fiber. It supports 10GBASE-LR/LW applications and provides a maximum link length of up to 10km.
The module uses an uncooled 1310nm DFB laser and a limiting receiver interface for reliable long-distance optical transmission. Its compact SFP+ footprint and duplex LC connector make it suitable for compatible switches, routers, and other 10Gbps networking equipment. :contentReference[oaicite:0]{index=0}
Finisar FTLX1471D3BCL 10Gbps Optical Connectivity
The FTLX1471D3BCL is designed for 10 Gigabit Ethernet links requiring extended optical reach. It supports bit rates from 9.95Gbps to 10.5Gbps and is designed for 10GBASE-LR/LW network applications.
The module is also specified for 1200-SM-LL-L 10G Fibre Channel applications, providing flexibility for compatible storage and data networking environments. :contentReference[oaicite:1]{index=1}
10KM Single-Mode Fiber Transmission
The transceiver is designed for single-mode fiber (SMF) and supports a maximum link length of 10km. This makes it suitable for longer network connections between switches, routers, aggregation equipment, and other compatible optical endpoints.
1310nm DFB Laser
The FTLX1471D3BCL uses an uncooled 1310nm DFB laser for optical transmission. The design is intended for 10km-class single-mode fiber links while maintaining the optical characteristics required for 10GBASE-LR/LW connectivity. :contentReference[oaicite:2]{index=2}
SFP+ and Duplex LC Interface
The compact SFP+ form factor allows the transceiver to be installed in compatible 10Gbps SFP+ ports. A duplex LC connector provides separate optical paths for transmitting and receiving data over the single-mode fiber link.
Digital Diagnostic Functions
The module includes built-in digital diagnostic functions accessible through a 2-wire serial interface as specified by SFF-8472. This allows compatible host equipment to access supported optical operating information. :contentReference[oaicite:3]{index=3}
Technical Specifications
| Specification | Details |
| Brand | Finisar |
| Model | FTLX1471D3BCL |
| Product Type | 10Gbps SFP+ Optical Transceiver |
| Form Factor | SFP+ |
| Data Rate | 9.95Gbps to 10.5Gbps |
| Optical Standard | 10GBASE-LR/LW |
| Maximum Distance | 10km |
| Wavelength | 1310nm |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector | Duplex LC |
| Transmitter | Uncooled 1310nm DFB Laser |
| Receiver | Limiting Receiver |
| Digital Diagnostics | Supported |
| Power Dissipation | < 1W |
| Operating Temperature | -5°C to 70°C |
Applications
- 10GBASE-LR Ethernet networks
- 10GBASE-LW applications
- 10G Fibre Channel networks
- Enterprise backbone connectivity
- Data center network links
- Switch-to-switch optical connections
- 10km single-mode fiber infrastructure
Compatibility
The Finisar FTLX1471D3BCL is designed for compatible networking equipment supporting 10GBASE-LR/LW SFP+ optical transceivers. The module is compliant with SFF-8431, SFF-8432, and IEEE 802.3ae specifications. :contentReference[oaicite:4]{index=4}
Before installation, verify the host device's supported SFP+ transceiver list, optical requirements, firmware, and fiber specifications. The complete optical link should also be checked to ensure the installed single-mode fiber can support the required 10km distance.
Buy Finisar FTLX1471D3BCL in Bangladesh
Datacom Technologies (BD) supplies Finisar optical transceivers, enterprise networking equipment, fiber connectivity products, and data center hardware in Bangladesh. The Finisar FTLX1471D3BCL is suitable for compatible 10Gbps network environments requiring reliable 10km single-mode fiber connectivity.
For corporate, data center, ISP, telecom, and project requirements, customers can contact Datacom Technologies (BD) for product selection assistance, technical consultation, and professional networking equipment supply.
