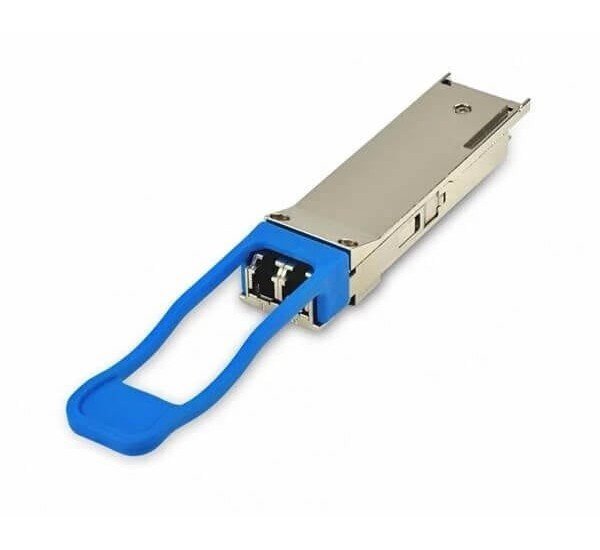

Finisar FTL4C1QE2C 40Gbps 10KM QSFP+ Optical Transceiver Module

The Finisar FTL4C1QE2C is a 40Gbps QSFP+ optical transceiver designed for 40GBASE-LR4 Ethernet connectivity over single-mode fiber. It supports optical links of up to 10km and provides a compact, hot-pluggable interface for compatible 40Gbps networking equipment.

The module uses an uncooled 4 × 10Gbps CWDM transmitter and a duplex LC optical interface. Its design is intended for long-reach 40GbE applications across single-mode fiber, including data center interconnects, enterprise networks, and network aggregation links. :contentReference[oaicite:0]{index=0}

Finisar FTL4C1QE2C 40GBASE-LR4 Connectivity

The FTL4C1QE2C is designed specifically for 40GBASE-LR4 40 Gigabit Ethernet applications. It supports an aggregate data rate of 41.2Gbps and uses four optical channels to carry the high-speed network signal across a single-mode fiber connection.

The four optical channels use CWDM wavelengths within the 1310nm band. This wavelength-division architecture allows the individual channels to be multiplexed onto the fiber pair while maintaining the required bandwidth for the 40GbE connection. :contentReference[oaicite:1]{index=1}

10KM Single-Mode Fiber Transmission

The transceiver is designed for single-mode fiber (SMF) and supports a maximum link length of 10km. This makes it suitable for longer 40GbE connections where short-range multimode QSFP+ modules are not appropriate.

Four-Channel CWDM Architecture

The FTL4C1QE2C uses four optical channels for 40Gbps transmission. The CWDM architecture combines the optical channels into the fiber link, while the receiver separates the channels at the destination. The module uses DFB laser transmitters and PIN receivers. :contentReference[oaicite:2]{index=2}

QSFP+ and Duplex LC Interface

The QSFP+ form factor provides a compact and hot-pluggable interface for compatible 40Gbps network equipment. The module uses duplex LC receptacles for optical connectivity over a pair of single-mode fibers.

Digital Diagnostic Monitoring

The module provides built-in digital diagnostic functions, including transmit and receive optical power monitoring. These functions are available through the module's I2C management interface in accordance with the QSFP+ MSA. :contentReference[oaicite:3]{index=3}

Technical Specifications

Applications

• 40GBASE-LR4 Ethernet networks
• Data center interconnects
• Enterprise backbone networks
• High-speed switch-to-switch links
• Network aggregation
• 10km single-mode fiber connectivity

Compatibility

The Finisar FTL4C1QE2C is designed for compatible networking equipment supporting 40GBASE-LR4 QSFP+ optical transceivers. The module complies with the QSFP+ MSA and IEEE 802.3ba 40GBASE-LR4 specifications. :contentReference[oaicite:4]{index=4}

Before installation, verify the host device's supported QSFP+ transceiver list, optical requirements, firmware, and fiber specifications. The complete optical link should also be checked to ensure the installed single-mode fiber can support the required 10km distance.

Buy Finisar FTL4C1QE2C in Bangladesh

Datacom Technologies (BD) supplies Finisar optical transceivers, enterprise networking equipment, fiber connectivity products, and data center hardware in Bangladesh. The Finisar FTL4C1QE2C is suitable for compatible 40Gbps networking environments requiring 10km single-mode fiber connectivity.

For corporate, data center, ISP, telecom, and project requirements, customers can contact Datacom Technologies (BD) for product selection assistance, technical consultation, and professional networking equipment supply.
