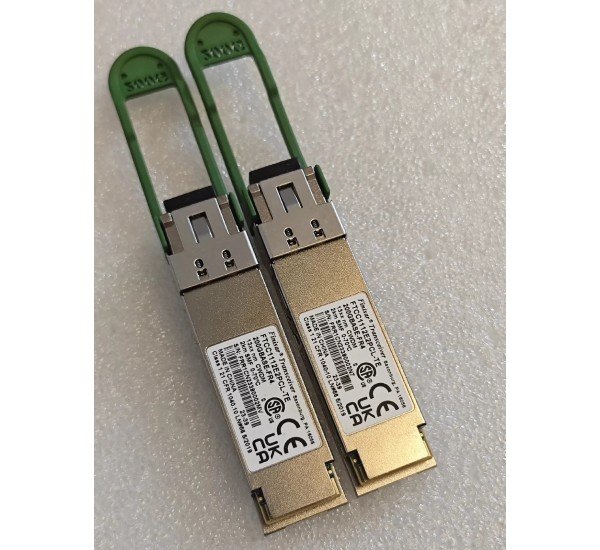

FINISAR FTCC1112E2PCL-TE 200GBASE-FR4 2KM Transceiver Module

About FINISAR FTCC1112E2PCL-TE 200GBASE-FR4 2KM Transceiver Module in Bangladesh

The FINISAR FTCC1112E2PCL-TE is a high-speed 200Gbps QSFP56 optical transceiver designed for 200GBASE-FR4 Ethernet connectivity over duplex single-mode fiber. It uses four 50Gbps PAM4 optical channels with CWDM technology to provide an aggregate 212.5Gbps data rate and supports transmission distances of up to 2 kilometers.

The FTCC1112E2PCL is designed for high-performance data center, enterprise, telecom, and network interconnect applications where 200Gbps bandwidth and extended single-mode fiber reach are required. The module uses duplex LC optical receptacles, making it suitable for standard duplex single-mode fiber infrastructure.

Finisar's specification identifies the module as a hot-pluggable QSFP56 transceiver supporting 200GBASE-FR4 Ethernet and InfiniBand HDR applications. It complies with CMIS 4.0, QSFP MSA, and portions of IEEE P802.3bs. The module operates from a single 3.3V supply and provides digital management through an I2C interface. :contentReference[oaicite:0]{index=0}

The FTCC1112E2PCL uses four CWDM optical wavelengths around the 1310nm band. These wavelengths are multiplexed internally so that the four 50Gbps optical channels can travel over a duplex single-mode fiber pair rather than requiring a parallel MPO/MTP fiber connection. :contentReference[oaicite:1]{index=1}

FINISAR FTCC1112E2PCL-TE 200GBASE-FR4 Specifications & Features

Overview

The FINISAR FTCC1112E2PCL-TE 200GBASE-FR4 QSFP56 Transceiver provides high-bandwidth 200Gbps optical connectivity over single-mode fiber. Its four-channel CWDM architecture uses 50Gbps PAM4 optical lanes to achieve a 212.5Gbps aggregate bit rate. The specified maximum reach is 2km over duplex single-mode fiber. :contentReference[oaicite:2]{index=2}

The module is designed for applications that require significantly more bandwidth than 100G optical modules while maintaining a compact QSFP56 form factor. It is particularly suitable for data center interconnects, spine-and-leaf networks, high-performance computing, enterprise aggregation, and other 200G network environments.

Buy FINISAR FTCC1112E2PCL-TE 200GBASE-FR4 2KM Transceiver in Bangladesh

Purchase the FINISAR FTCC1112E2PCL-TE 200GBASE-FR4 2KM QSFP56 Transceiver Module from Datacom Technologies (BD). We supply FINISAR optical transceivers, QSFP56 modules, QSFP28/QSFP+ optics, SFP/SFP+ modules, fiber-optic networking products, enterprise switches, data center equipment, and high-speed optical connectivity solutions with competitive pricing, technical consultation, deployment assistance, and nationwide delivery throughout Bangladesh.

Key Features

• 200Gbps high-speed Ethernet connectivity
• 200GBASE-FR4 optical technology
• QSFP56 high-density form factor
• 4 × 50Gbps PAM4 optical channels
• Four-channel CWDM architecture
• 1310nm optical wavelength band
• Up to 2km transmission over single-mode fiber
• Duplex LC optical interface
• 212.5Gbps aggregate bit rate
• 200GAUI-4 electrical interface
• Hot-pluggable module design
• Digital diagnostic monitoring through I2C
• CMIS 4.0 management support
• Single 3.3V power supply
• Maximum power dissipation of 6W
• 0°C to 70°C commercial operating temperature

Applications

• 200G Data Center Networking
• Data Center Interconnect
• 200G Spine-and-Leaf Networks
• Switch-to-Switch Connectivity
• Enterprise Core Networking
• High-Performance Computing
• AI and Machine Learning Infrastructure
• Telecom Network Aggregation
• Longer-Reach 200G Ethernet Links
• InfiniBand HDR Networking

200GBASE-FR4 Optical Technology

200GBASE-FR4 is a 200Gbps Ethernet optical technology designed for transmission over single-mode fiber. The FTCC1112E2PCL uses four optical wavelengths in the 1310nm band, with each optical channel carrying approximately 50Gbps using PAM4 modulation.

The four optical channels are multiplexed internally using CWDM technology. This allows the aggregate 200Gbps signal to be transmitted over a duplex single-mode fiber pair through the module's LC interface. :contentReference[oaicite:3]{index=3}

With a specified reach of up to 2km, the FR4 architecture sits between short-reach multimode 200G solutions and longer-distance 200G optical technologies, making it suitable for data center and campus-scale interconnect applications.

1310nm CWDM Optical Architecture

The FTCC1112E2PCL operates in the 1310nm optical band and uses four CWDM channels. The CWDM architecture allows multiple 50Gbps optical signals to share the same duplex single-mode fiber pair.

This is an important difference from 200GBASE-SR4 modules, which use parallel multimode fiber and typically require MPO/MTP connectivity. The FTCC1112E2PCL instead uses duplex LC single-mode fiber, making it easier to deploy where LC-based SMF infrastructure is already available.

2KM Single-Mode Fiber Connectivity

The FTCC1112E2PCL supports a maximum optical reach of 2km over duplex single-mode fiber. This makes it suitable for connecting network equipment across data halls, buildings, aggregation zones, and other locations where a short-reach multimode module would not provide sufficient distance.

Actual link performance depends on fiber attenuation, connector insertion loss, splice loss, optical power budget, patching, and the complete installed optical channel. The fiber infrastructure should be tested and verified before deployment.

Duplex LC Optical Interface

The module uses duplex LC optical receptacles. One fiber carries the transmitted signal while the second fiber carries the received signal. The four optical wavelengths are multiplexed internally within the transceiver.

This duplex LC architecture provides a practical 200G solution for existing single-mode fiber networks and avoids the need for parallel MPO/MTP fiber assemblies associated with many SR4-based modules.

QSFP56 Form Factor

The QSFP56 form factor provides a compact, high-density interface for 200Gbps networking. The FTCC1112E2PCL can be installed in compatible QSFP56 ports on switches, routers, network adapters, and other supported networking platforms.

The module is hot-pluggable, allowing supported host equipment to install or replace the transceiver without replacing the complete networking platform. Actual hot-plug behavior depends on the host device.

200GAUI-4 Electrical Interface

The FTCC1112E2PCL uses a 200GAUI-4 electrical interface with four 50Gbps PAM4 lanes. The electrical interface connects the host equipment to the four-channel optical architecture inside the QSFP56 module. :contentReference[oaicite:4]{index=4}

This 4 × 50G architecture is an important component of the transition from 100G to 200G Ethernet, allowing modern switches and network devices to provide 200Gbps connectivity through a compact pluggable module.

Digital Diagnostic Monitoring

The FTCC1112E2PCL includes an I2C management interface for digital diagnostics. Compatible host systems can access module management and diagnostic information to assist with optical link monitoring and troubleshooting. The module is designed around CMIS 4.0 management requirements. :contentReference[oaicite:5]{index=5}

Power and Operating Conditions

The module operates from a single 3.3V power supply and has a maximum specified power dissipation of 6W. Its commercial operating case temperature range is 0°C to 70°C. :contentReference[oaicite:6]{index=6}

Compatibility

• Compatible 200G QSFP56 switches
• Compatible 200G QSFP56 routers
• Compatible 200G Ethernet network adapters
• Compatible data center networking platforms
• Compatible enterprise aggregation equipment
• Compatible InfiniBand HDR platforms where supported
• Duplex single-mode fiber infrastructure
• Duplex LC fiber cabling

Actual compatibility depends on the host equipment model, firmware, supported optics list, transceiver coding, CMIS implementation, and network protocol requirements. Always verify the exact host platform before purchase.

Benefits

• 200Gbps high-bandwidth optical connectivity
• Up to 2km reach over single-mode fiber
• 1310nm CWDM technology
• Duplex LC connectivity
• Compact QSFP56 form factor
• Four 50Gbps PAM4 optical channels
• 212.5Gbps aggregate bit rate
• Suitable for data center interconnects
• Suitable for enterprise and telecom networks
• Digital diagnostic monitoring
• Hot-pluggable optical module

FINISAR FTCC1112E2PCL vs 200GBASE-SR4

Why Buy from Datacom Technologies (BD)?

Datacom Technologies (BD) supplies FINISAR optical transceivers, QSFP56 modules, QSFP28/QSFP+ optics, SFP/SFP+ modules, fiber-optic equipment, enterprise switches, server networking components, and high-speed data center connectivity products in Bangladesh. Customers can receive competitive pricing, technical consultation, deployment assistance, and after-sales support.

• Call/WhatsApp: +8801748173213
• Email: sales@datacom.com.bd
• Alternative Email: datacomtechnologiesbd@gmail.com
• Office: Tropical Center, 218, Dr. Kudroti Khuda Road, New Elephant Road, Dhaka-1205, Bangladesh

Frequently Asked Questions (FAQ)

Q1: What is the FINISAR FTCC1112E2PCL-TE?
The FTCC1112E2PCL is a 200GBASE-FR4 QSFP56 optical transceiver designed for 200Gbps Ethernet connectivity over duplex single-mode fiber.

Q2: What is the data rate?
The module supports 200Gbps Ethernet and has an aggregate optical/electrical bit rate of 212.5Gbps. :contentReference[oaicite:7]{index=7}

Q3: What is the maximum transmission distance?
The specified maximum reach is 2km over duplex single-mode fiber. :contentReference[oaicite:8]{index=8}

Q4: What wavelength does the FTCC1112E2PCL use?
It operates in the 1310nm optical band using four CWDM channels.

Q5: What type of fiber does it use?
The module is designed for duplex single-mode fiber (SMF).

Q6: What connector does the module use?
It uses duplex LC optical receptacles. :contentReference[oaicite:9]{index=9}

Q7: Does it use PAM4?
Yes. The module uses four 50Gbps PAM4 optical channels and a 4 × 50G PAM4 electrical interface.

Q8: Is the FTCC1112E2PCL suitable for data center interconnects?
Yes. Its 2km single-mode fiber reach makes it suitable for data center interconnects, aggregation networks, enterprise infrastructure, and other extended 200G links.

Q9: Does the module support digital diagnostics?
Yes. It provides digital management through an I2C interface and is designed for CMIS 4.0 management. :contentReference[oaicite:10]{index=10}

Q10: What is the maximum power consumption?
The manufacturer's specification lists maximum module power dissipation at 6W. :contentReference[oaicite:11]{index=11}

Q11: What is the operating temperature?
The commercial operating case temperature range is 0°C to 70°C. :contentReference[oaicite:12]{index=12}

Q12: Is FTCC1112E2PCL-TE the same as FTCC1112E2PCL?
The manufacturer's product documentation identifies the core Finisar part number as FTCC1112E2PCL. The "-TE" suffix may be used in a particular inventory or sales listing, so the physical label, vendor part number, and host compatibility should be checked before ordering.
