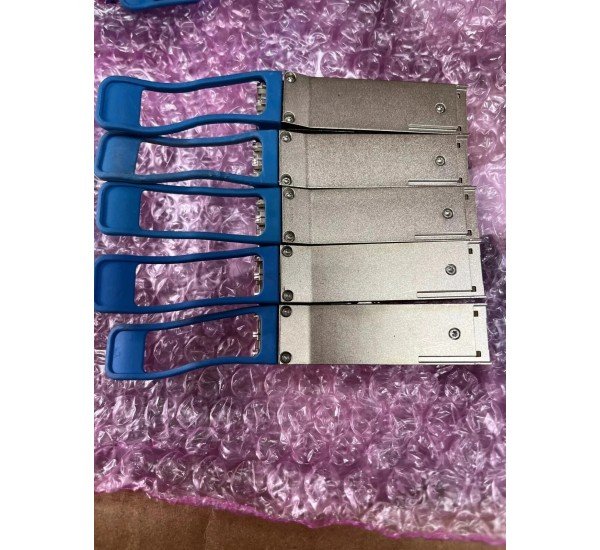

Finisar FTCC8612E2PCM 200G QSFP56 100M Transceiver

About Finisar FTCC8612E2PCM 200G QSFP56 100M Transceiver in Bangladesh

The Finisar FTCC8612E2PCM is a high-speed 200Gbps QSFP56 optical transceiver designed for 200 Gigabit Ethernet connectivity over multimode fiber. It uses 200GBASE-SR4 optical technology with four 50Gbps PAM4 optical channels and provides an aggregate data rate of 212.5Gbps. The module is designed for short-reach, high-bandwidth data center and enterprise networking applications.

The FTCC8612E2PCM supports a maximum link distance of up to 100 meters over OM4 multimode fiber and up to 70 meters over OM3 multimode fiber. It uses an MPO-12 optical connector and a compact QSFP56 form factor, making it suitable for high-density 200G switch-to-switch and data center interconnect applications. :contentReference[oaicite:0]{index=0}

The module uses four 50Gbps PAM4 VCSEL transmitters to provide the 200G optical connection. Its electrical host interface is 200GAUI-4 C2M with four 50Gbps PAM4 lanes. Digital diagnostics are available through the I2C management interface, while the module operates from a single 3.3V power supply. :contentReference[oaicite:1]{index=1}

The FTCC8612E2PCM is particularly suitable for modern data center environments requiring 200Gbps connectivity over short multimode fiber links. It provides substantially higher bandwidth than 100G QSFP28 modules while maintaining a compact QSFP-family pluggable form factor.

Finisar FTCC8612E2PCM 200G QSFP56 Specifications & Features

Overview

The Finisar FTCC8612E2PCM 200G QSFP56 Transceiver is designed for 200 Gigabit Ethernet interfaces over multimode fiber. It uses four optical channels operating at 50Gbps PAM4 to deliver a total 212.5Gbps aggregate bit rate. :contentReference[oaicite:2]{index=2}

The module's 200GBASE-SR4 architecture is optimized for short-distance data center connectivity. With up to 100 meters of reach on OM4 multimode fiber, it can be used for high-bandwidth connections between switches, racks, servers and aggregation equipment within a data center environment.

For OM3 multimode fiber, the specified maximum supported distance is 70 meters. The 100-meter OM4 operating distance requires appropriate host FEC according to the product specification. :contentReference[oaicite:3]{index=3}

Buy Finisar FTCC8612E2PCM 200G QSFP56 100M Transceiver in Bangladesh

Purchase the Finisar FTCC8612E2PCM 200G QSFP56 100M Transceiver from Datacom Technologies (BD). We supply Finisar optical transceivers, QSFP56 modules, QSFP28/QSFP+ optics, SFP/SFP+ modules, fiber-optic networking products, enterprise switches, data center equipment and high-speed optical connectivity solutions with competitive pricing, technical consultation, deployment assistance and nationwide delivery throughout Bangladesh.

Key Features

• 200Gbps high-speed Ethernet optical connectivity
• 200GBASE-SR4 optical architecture
• QSFP56 compact pluggable form factor
• 4 × 50Gbps PAM4 VCSEL optical transmission
• 212.5Gbps aggregate bit rate
• 850nm optical wavelength band
• Multimode fiber support
• Up to 100m over OM4 multimode fiber
• Up to 70m over OM3 multimode fiber
• MPO-12 optical connector
• 200GAUI-4 C2M electrical interface
• Digital diagnostic monitoring through I2C
• Single 3.3V power supply
• Maximum power dissipation below 4.5W
• 0°C to 70°C commercial operating temperature

Applications

• 200G Data Center Networking
• High-Speed Data Center Interconnect
• 200G Switch-to-Switch Connectivity
• Rack-to-Rack Networking
• Data Center Spine-and-Leaf Networks
• High-Performance Computing
• AI and Machine Learning Infrastructure
• Server-to-Switch Connectivity
• Enterprise Network Aggregation
• Short-Reach Multimode Fiber Links

200GBASE-SR4 Optical Technology

200GBASE-SR4 is a short-reach 200Gbps Ethernet optical technology designed for multimode fiber. The Finisar FTCC8612E2PCM uses four 50Gbps PAM4 optical channels to transport the 200Gbps Ethernet signal.

PAM4 modulation allows two bits to be represented per symbol, enabling 50Gbps transmission on each optical lane while maintaining four parallel optical channels. This provides the 200G-class bandwidth required by modern data center networks.

The module's optical design operates in the 850nm wavelength band and is optimized for short-reach multimode fiber infrastructure. :contentReference[oaicite:4]{index=4}

200G Multimode Fiber Connectivity

The FTCC8612E2PCM is designed for multimode fiber and supports up to 70 meters on OM3 and up to 100 meters on OM4. For the 100-meter OM4 configuration, host-side Forward Error Correction (FEC) is required according to the manufacturer's specification. :contentReference[oaicite:5]{index=5}

For reliable deployment, the fiber grade, connector type, MPO polarity, insertion loss, optical budget and host FEC configuration should be verified before installation.

MPO-12 Optical Interface

The FTCC8612E2PCM uses an MPO-12 connector for its parallel optical interface. The MPO-12 cabling system should be selected with the appropriate polarity and fiber arrangement for the intended 200G link.

Correct MPO polarity and lane mapping are essential when connecting 200GBASE-SR4 modules. Network administrators should verify the complete fiber channel and transceiver requirements before deployment.

QSFP56 Form Factor

The QSFP56 form factor provides a compact, high-density interface for 200Gbps networking. It is designed for compatible 200G switches, routers, network adapters and other high-speed networking platforms.

The hot-pluggable architecture allows supported equipment to install or replace the optical module without replacing the complete networking platform. Actual hot-plug functionality depends on the host device.

200GAUI-4 Electrical Interface

The FTCC8612E2PCM uses a 200GAUI-4 C2M electrical interface with four 50Gbps PAM4 lanes. This allows the host networking equipment to interface with the module through four high-speed electrical channels while the optical side provides the corresponding four-channel 200G optical connection. :contentReference[oaicite:6]{index=6}

Digital Diagnostic Monitoring

The Finisar FTCC8612E2PCM supports digital diagnostics through its I2C management interface, as specified by CMIS 4.0. Compatible host equipment can access module monitoring information for optical link management and troubleshooting. :contentReference[oaicite:7]{index=7}

Power and Operating Conditions

The module operates from a single 3.3V power supply and has a maximum power dissipation below 4.5W. The commercial operating case temperature range is 0°C to 70°C. :contentReference[oaicite:8]{index=8}

Compatibility

• Compatible 200G QSFP56 switches
• Compatible 200G QSFP56 routers
• Compatible data center networking equipment
• Compatible high-performance computing platforms
• Compatible network adapters with QSFP56 interfaces
• Compatible OM3 multimode fiber infrastructure
• Compatible OM4 multimode fiber infrastructure
• Compatible MPO-12 fiber cabling

Actual compatibility depends on the host equipment model, firmware, transceiver coding, supported optics list, CMIS implementation and FEC requirements. Always verify the host platform before purchase or installation.

Benefits

• 200Gbps high-bandwidth optical connectivity
• Compact QSFP56 form factor
• 200GBASE-SR4 multimode fiber technology
• Up to 100m reach over OM4
• Up to 70m reach over OM3
• Four 50Gbps PAM4 optical lanes
• MPO-12 parallel optical interface
• Suitable for high-density data center networks
• Digital diagnostic monitoring
• Low-power design below 4.5W

Finisar FTCC8612E2PCM vs 100G QSFP28 SR4

Why Buy from Datacom Technologies (BD)?

Datacom Technologies (BD) supplies networking and data center infrastructure products in Bangladesh, including Finisar 200G QSFP56 transceivers, QSFP28/QSFP+ modules, SFP/SFP+ optics, fiber-optic equipment, enterprise switches, server networking components and high-speed data center connectivity solutions. Customers can receive competitive pricing, technical consultation, deployment assistance and after-sales support.

• Call/WhatsApp: +8801748173213
• Email: sales@datacom.com.bd
• Alternative Email: datacomtechnologiesbd@gmail.com
• Office: Tropical Center, 218, Dr. Kudroti Khuda Road, New Elephant Road, Dhaka-1205, Bangladesh

Frequently Asked Questions (FAQ)

Q1: What is the Finisar FTCC8612E2PCM?
The FTCC8612E2PCM is a 200GBASE-SR4 QSFP56 optical transceiver designed for 200Gbps Ethernet connectivity over multimode fiber.

Q2: What is the data rate?
The module supports 200Gbps Ethernet with an aggregate optical bit rate of 212.5Gbps. :contentReference[oaicite:9]{index=9}

Q3: What optical technology does it use?
It uses four 50Gbps PAM4 VCSEL optical channels.

Q4: What is the maximum transmission distance?
The specified maximum distance is 100 meters over OM4 multimode fiber and 70 meters over OM3 multimode fiber. :contentReference[oaicite:10]{index=10}

Q5: What fiber does the module use?
The FTCC8612E2PCM is designed for multimode fiber (MMF), particularly OM3 and OM4 infrastructure.

Q6: What connector does the module use?
It uses an MPO-12 optical connector.

Q7: Does the 100m OM4 reach require FEC?
Yes. The product specification identifies host FEC as required for the 200G 100m OM4 operating condition. :contentReference[oaicite:11]{index=11}

Q8: What is the electrical interface?
The module uses a 200GAUI-4 C2M electrical interface with four 50Gbps PAM4 lanes.

Q9: Does the FTCC8612E2PCM support digital diagnostics?
Yes. Digital diagnostics are available through the I2C management interface, with CMIS 4.0 support. :contentReference[oaicite:12]{index=12}

Q10: What is the maximum power consumption?
The maximum specified power dissipation is below 4.5W. :contentReference[oaicite:13]{index=13}

Q11: What is the operating temperature?
The commercial operating case temperature range is 0°C to 70°C.
