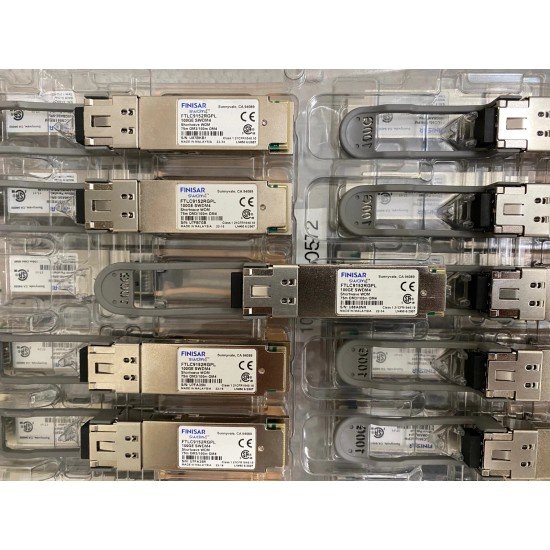

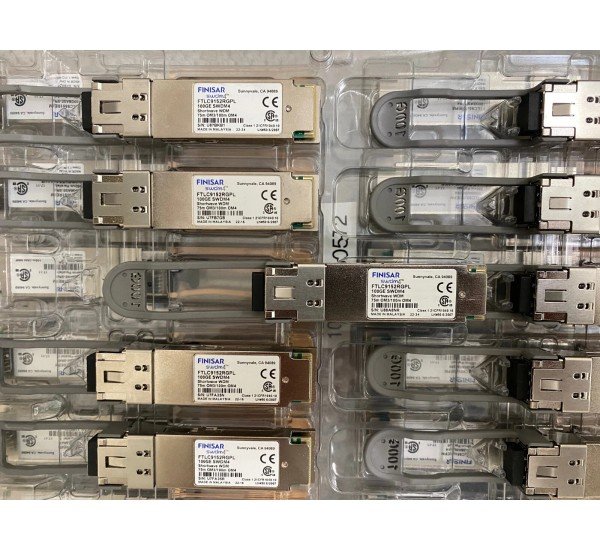

FINISAR FTLC9152RGPL2 100G QSFP28 Optical Transceiver Overview
The FINISAR FTLC9152RGPL2 100G QSFP28 Optical Transceiver Module is a high-performance, hot-pluggable optical transceiver designed for ultra-fast 100Gbps Ethernet connectivity. It delivers reliable data transmission for modern data centers, enterprise backbone networks, cloud infrastructure, and telecom applications.
Built with advanced Finisar optical technology, this module ensures low latency, high stability, and long-distance data transmission with maximum efficiency.
Full Specification of FINISAR FTLC9152RGPL2 100G QSFP28
| Parameter | Specification |
|---|
| Model Number | FTLC9152RGPL2 |
| Form Factor | QSFP28 |
| Data Rate | 100 Gbps (103.1 Gbps aggregate) |
| Standard Compliance | IEEE 802.3bm CAUI-4, QSFP28 MSA |
| Technology Type | SWDM4 (Short Wavelength Division Multiplexing) |
| Transmission Distance | Up to 100m (OM4), up to 150m (OM5) |
| Fiber Type | Multimode Fiber (MMF) |
| Connector Type | Duplex LC |
| Wavelength Range | 850nm / 880nm / 910nm / 940nm |
| Transmitter Type | 4× 25G VCSEL lasers |
| Receiver Type | 4× PIN photodiode |
| Electrical Interface | 4× 25G CAUI-4 |
| Power Supply | 3.3V single power supply |
| Power Consumption | ≤ 3.5W |
| Operating Temperature | 0°C to 70°C (Commercial grade) |
| Digital Diagnostics | Supported (DDM/DOM via I2C) |
| Modulation Format | NRZ |
| Protocol Support | 100G Ethernet |
| RoHS Compliance | Yes (RoHS-6) |
| Case Type | Hot-pluggable QSFP28 |
Best Applications in Bangladesh
The FINISAR 100G QSFP28 transceiver is widely used in:
- Data Center Interconnection (DCI)
- Cloud Computing Infrastructure
- Enterprise Core Networking
- Telecom Backbone Networks
- High-Speed Internet Service Providers (ISP)
- Metro Ethernet Networks
- Network Switch and Router uplinks
In Bangladesh, this module is ideal for large ISP providers, corporate networks, and data center expansion projects requiring stable 100G performance.
How to Install FINISAR FTLC9152RGPL2 100G QSFP28 Module
Installing the transceiver is simple and plug-and-play:
- Power off or safely prepare the network device (recommended for safety).
- Insert the QSFP28 module into the compatible port gently.
- Ensure it clicks and locks properly into place.
- Connect LC fiber patch cord to the module.
- Power on the device and check link status.
- Verify signal and connectivity from network dashboard.
- No complex configuration is required for most compatible devices.
Compatibility Devices
This Finisar 100G QSFP28 module is compatible with a wide range of networking equipment, including:
- Cisco Switches & Routers
- Juniper Networks Devices
- Arista Networks Switches
- Huawei Data Center Switches
- Nokia Optical Networking Systems
- Dell Networking Equipment
- Other QSFP28-supported 100G platforms
Always ensure your device supports QSFP28 100G ports and LR4 standard compatibility.
