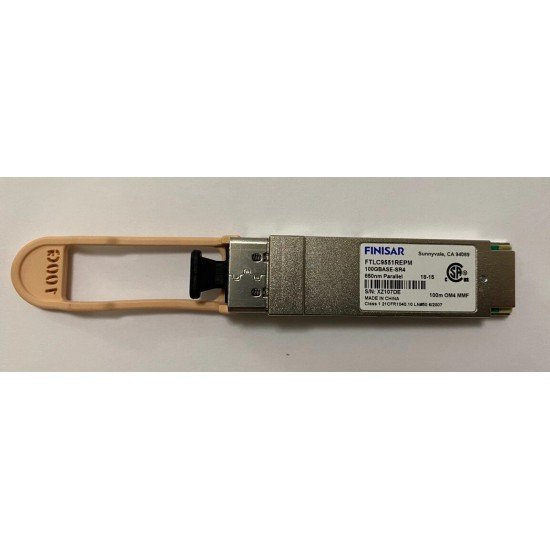

Finisar QSFP-100G-SR4 Transceiver – FTLC9551REPM | High-Speed 100G Optical Module
The Finisar QSFP-100G-SR4 Transceiver (FTLC9551REPM) is a high-performance 100 Gigabit Ethernet optical transceiver module designed for ultra-fast data communication in modern networking environments. It supports 100GBASE-SR4 short-range connectivity and delivers reliable, low-latency performance for enterprise and data center networks.
This QSFP28 100G SR4 optical module is widely used in high-density switching systems where speed, stability, and energy efficiency are essential.
Finisar QSFP-100G-SR4 – FTLC9551REPM Specification
| Parameter | Specification |
|---|
| Manufacturer | Finisar (Coherent / II-VI) |
| Part Number | FTLC9551REPM |
| Product Type | 100GBASE-SR4 QSFP28 Optical Transceiver |
| Form Factor | QSFP28 |
| Data Rate | 100G (103.1 Gb/s aggregate) |
| Transmission Type | 100GBASE-SR4 |
| Fiber Type | Multimode Fiber (OM3 / OM4 MMF) |
| Max Distance | 70m (OM3), 100m (OM4) |
| Wavelength | 850 nm |
| Channel Configuration | 4 × 25Gb/s parallel lanes |
| Transmitter Type | VCSEL (850 nm) |
| Receiver Type | PIN Photodiode |
| Connector Type | MPO / MTP-12 |
| Electrical Interface | CAUI-4 |
| Power Supply | 3.3V |
| Power Consumption | < 3.5W |
| Operating Temperature | 0°C to 70°C |
| Digital Diagnostics (DOM/DDM) | Supported (I2C interface) |
| Modulation | NRZ |
| Standards Compliance | IEEE 802.3bm, QSFP28 MSA |
| FEC Requirement | Required on host system |
| Hot Pluggable | Yes |
| RoHS Compliance | Yes |
| Application | Data Centers, Switch-to-Switch 100G Ethernet links |
Best Application for Finisar 100G SR4 in Bangladesh
The Finisar QSFP-100G-SR4 FTLC9551REPM is widely used in high-performance networking environments such as:
- Data centers in Bangladesh
- Cloud computing infrastructure
- ISP backbone networks
- Enterprise core switching systems
- High-speed server interconnects
- Telecom aggregation networks
- Storage Area Networks (SAN)
This module is ideal for organizations upgrading to next-generation 100G network infrastructure.
How to Install Finisar QSFP-100G-SR4 Transceiver
Installation is simple and quick:
- Turn off or safely access the network device
- Insert the QSFP28 module into the compatible 100G port
- Connect MPO/MTP fiber cable properly
- Ensure secure locking of the connector
- Power on the device
- Verify link status via switch/router dashboard
✔ Always handle fiber connectors carefully to avoid dust or damage.
Compatibility Devices
The Finisar FTLC9551REPM is compatible with:
- Cisco 100G switches and routers
- Juniper Networks devices
- Arista 100G platforms
- Huawei data center switches
- Dell EMC networking hardware
- HPE enterprise networking systems
- Any QSFP28 100G compliant device
Why Choose Finisar QSFP-100G-SR4 Transceiver
- Trusted global Finisar optical technology
- Stable high-speed 100G performance
- Low latency data transmission
- Energy-efficient operation
- Plug-and-play QSFP28 design
- Ideal for scalable data center networks
- Proven reliability in enterprise environments
