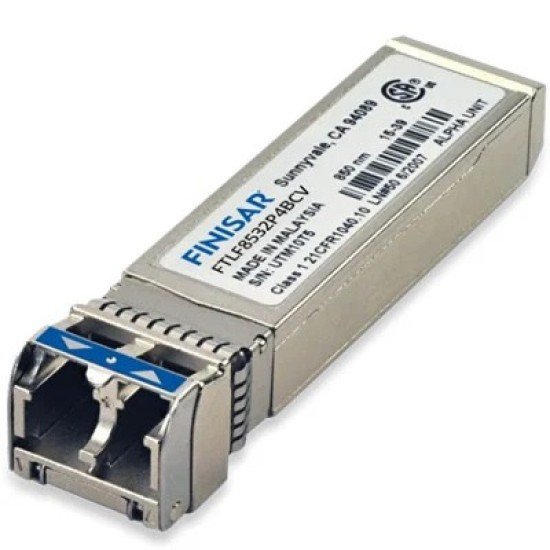

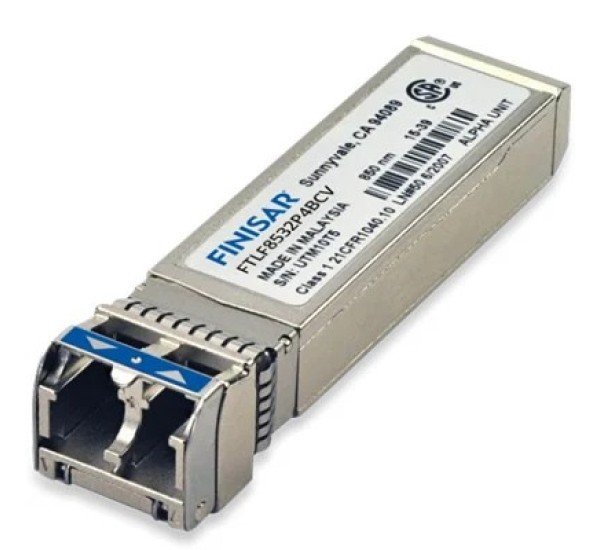

Finisar FTLF8532P4BCV 32G FC SFP+ Transceiver
Finisar FTLF8532P4BCV is a high-performance 32G Fibre Channel SFP+ optical transceiver designed for enterprise SAN (Storage Area Network) and data center Fibre Channel fabrics. It delivers ultra-fast, reliable connectivity up to 28.05 Gbps over multimode fiber (MMF) with a short-wavelength 850 nm VCSEL laser, making it ideal for high-speed storage networking and server-to-switch links.
Key Features
- Supports Tri-Rate Fibre Channel: Operates at 8.5 / 14.025 / 28.05 Gbps for flexible speed options.
- Short-Reach Optical Link: Up to 100 m over OM4 multimode fiber, 70 m on OM3, and 35 m on OM2.
- Hot-Pluggable SFP+ Form Factor: Easy installation without powering down your system.
- Duplex LC Connector: Standard multimode fiber interface.
- Digital Diagnostic Monitoring (DDM/DOM): Real-time monitoring of optical parameters.
- RoHS Compliant: Environmentally friendly, lead-free design.
- Metal Enclosure: Lower electromagnetic interference (EMI) and improved durability.
How to Install Finisar FTLF8532P4BCV 32G FC SFP+ Transceiver
- Prepare the Device: It’s recommended to power down your switch or SAN port before insertion (optional for hot-plug capable hardware).
- Select an Empty SFP+ Slot: Locate a free SFP+ port on your FC switch, storage array, or HBA.
- Remove Dust Caps: Take off protective caps from the transceiver and fiber cable ends.
- Insert Transceiver: Slide the FTLF8532P4BCV into the SFP+ slot until it clicks securely.
- Connect Fiber Cables: Plug in the LC duplex multimode fiber cable with correct polarity.
- Verify Link: Power on the device (if off) and check link status via your switch’s management interface.
Note: This transceiver is hot-pluggable, so you can insert or remove it while the system is running on supported hardware.
Compatibility
This 32G FC SFP+ module is compatible with:
- Fibre Channel switches, directors, and directors supporting 32GFC
- SAN HBAs (Host Bus Adapters) and storage systems
- Multimode fiber infrastructure (OM2/OM3/OM4)
Ensure the device supports Fibre Channel protocols; FC optics won’t operate in standard Ethernet-only ports.
Best Applications
- Enterprise SAN links for high-speed storage traffic
- Server-to-switch uplinks in data centers
- Switch-to-switch Fibre Channel fabrics
- Backup and replication network links
- High-performance storage clusters
FAQ (Frequently Asked Questions)
1. What speeds does the FTLF8532P4BCV support?
- It supports 8.5 Gbps, 14.025 Gbps, and 28.05 Gbps Fibre Channel speeds (tri-rate).
2. What fiber type is required?
- It uses multimode fiber (MMF) with LC connectors for short-reach links up to 100 m.
3. Is this module hot-pluggable?
- Yes — the SFP+ form factor allows hot-swap installation.
4. Will it work in Ethernet switches?
- No — this is a Fibre Channel optic and must be used in hardware that supports FC protocols.
5. How do I check if my switch supports 32G optics?
- Check your switch’s documentation or CLI to confirm 32G Fibre Channel port support and any licensing requirements.
Buy Finisar FTLF8532P4BCV 32G FC SFP+ Transceiver at the Best Price in Bangladesh.
In Bangladesh, you can get Finisar FTLF8532P4BCV 32G FC SFP+ Transceiver From Datacom Technologies BD. We have a large collection of latest Finisar SFP Module to purchase for your Switch. Order Online Or Visit our Office to get yours at lowest price. The Finisar FTLF8532P4BCV 32G FC SFP+ Transceiver comes with 1 Year warranty.
