| Specification | Details |
|---|

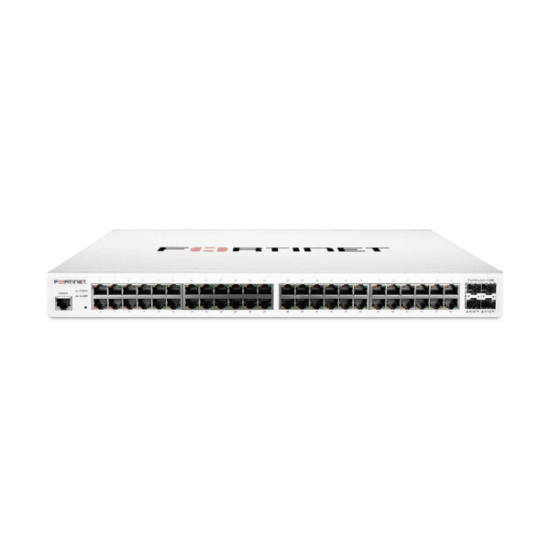

| Model | Fortinet FortiSwitch FS‑248E‑FPOE |
| Series | FortiSwitch 200 Series Secure Access |
| Switch Type | Managed Layer 2 / Basic Layer 3 Ethernet Switch |
| Ports | 48 × 10/100/1000 RJ‑45 with PoE/PoE+ |
| Uplink Ports | 4 × 1 Gb SFP |
| PoE Standard | IEEE 802.3af & IEEE 802.3at (PoE+) |
| Total PoE Budget | 740 W across all 48 ports |
| Switching Capacity | 104 Gbps |
| Forwarding Rate | 155 Mpps |
| MAC Address Table | 16 K entries |
| VLAN Support | Up to 4096 VLANs |
| Link Aggregation | Supports multiple LAGs (up to 8 ports per group) |
| Packet Buffers | 1.5 MB shared memory |
| Memory (DRAM) | 512 MB DDR3 |
| Flash Storage | 128 MB |
| ACL Entries | ~512 (hardware filter) |
| Spanning Tree Instances | 16 |
| Route Entries (IPv4/IPv6) | ~64/32 |
| Host Entries | ~512 |
| Management Ports | 1 × Dedicated management 10/100, 1 × Serial console |
| Form Factor | 1U rack‑mountable |
| Power Supply | Internal AC |
| Power Consumption (Avg/Max) | ~842 W / ~855 W under full load |
| Operating Temp. | 0–50 °C |
| Weight | ~6.1 kg |
Description:
The Fortinet FortiSwitch FS‑248E‑FPOE is a high‑density, enterprise‑grade 48‑port managed Gigabit Ethernet switch with full PoE/PoE+ support on every access port. Designed for modern business networks—including campus access, branch offices, and mid‑sized enterprise environments—it combines robust data switching with abundant power delivery, enabling the deployment of PoE devices like wireless access points, VoIP phones, security cameras, and access control systems without separate power injectors. With a total PoE budget of 740 W across all 48 ports, this switch can simultaneously power large numbers of devices while maintaining network performance.
The FS‑248E‑FPOE offers a 104 Gbps switching capacity and a 155 Mpps forwarding rate, providing efficient wire‑speed data handling for typical enterprise traffic. It supports up to 4096 VLANs, robust MAC address capacity, link aggregation groups for increased throughput and redundancy, and essential Layer 2 networking features such as spanning tree protocols, IGMP snooping, and quality‑of‑service controls to prioritize critical traffic.
Management is flexible, with options for CLI, SNMP, and centralized control via FortiGate FortiLink or FortiManager, enabling simplified configuration and unified policy enforcement across the security fabric. Rack‑mountable with internal AC power and optional redundant power support, the FS‑248E‑FPOE delivers a scalable, secure, and power‑rich networking solution for demanding PoE environments.
