| Specification | Details |
|---|
| Model | Fortinet FortiSwitch FS‑148F |
| Series | FortiSwitch 100 Secure Access Series |
| Switch Type | Managed Layer 2 Ethernet Switch |
| Ports | 48 × 10/100/1000 RJ‑45 |
| Uplink Ports | 4 × 1 Gb SFP |
| Switching Capacity | 104 Gbps |
| Forwarding Rate | ~155 Mpps |
| MAC Address Table | 16 K entries |
| VLAN Support | Up to 4 K VLANs |
| Link Aggregation | Supported (multiple groups, up to 8 ports each) |
| Packet Buffer | ~1.5 MB |
| Memory (DRAM) | ~256 MB |
| Flash Storage | ~64 MB |
| Management Ports | 1 × Serial console |
| Form Factor | 1U rack mount |
| Dimensions (W×D×H) | Approx. 440 × 348 × 44 mm |
| Weight | Approx. 5.2 kg |
| Power Supply | Internal 100–240 VAC |
| Operating Temperature | 0–45 °C |
| Humidity | 10–90% non‑condensing |
| Security & QoS | ACLs, QoS policies, IGMP snooping, Spanning Tree |
Description

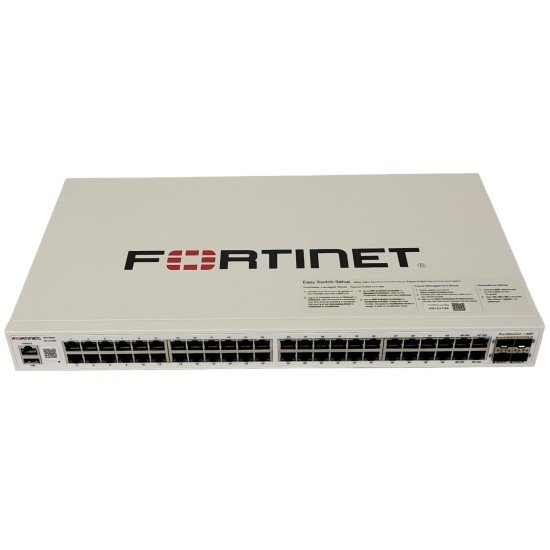

The Fortinet FortiSwitch FS‑148F is a high‑density, managed Layer 2 Gigabit Ethernet switch designed for enterprise access networks and mid‑sized business environments. With 48 Gigabit RJ‑45 ports, it delivers reliable, high‑performance connectivity for a wide range of client devices including computers, printers, VoIP phones, and access points. This switch is ideal for deployments at the network edge where cost‑effective, secure switching with centralized management is needed.
To support flexible uplink connectivity, the FS‑148F includes four 1 Gb SFP ports, which allow network administrators to use fiber uplinks for backbone or aggregation connections. The switch offers a 104 Gbps switching capacity and a strong forwarding rate of approximately 155 Mpps, enabling smooth performance for mixed traffic environments. With support for up to 4,096 VLANs, the switch helps segment network traffic and enhance network performance and security.
Advanced Layer 2 capabilities such as link aggregation, spanning tree protocols, quality‑of‑service (QoS) controls, and access control lists (ACLs) provide improved traffic management, redundancy, and security. The FS‑148F’s management options include command‑line interface (CLI), SNMP, and centralized management via FortiGate or FortiManager, which simplifies policy administration and monitoring across the network.
Its 1U rack‑mount form factor and internal power supply make the FortiSwitch FS‑148F a practical choice for business networks looking for scalable, manageable, and efficient switching infrastructure at the access layer. Whether deployed as a primary access switch or as part of a larger campus network, this FortiSwitch model delivers reliable performance and robust feature support for modern networking needs.
