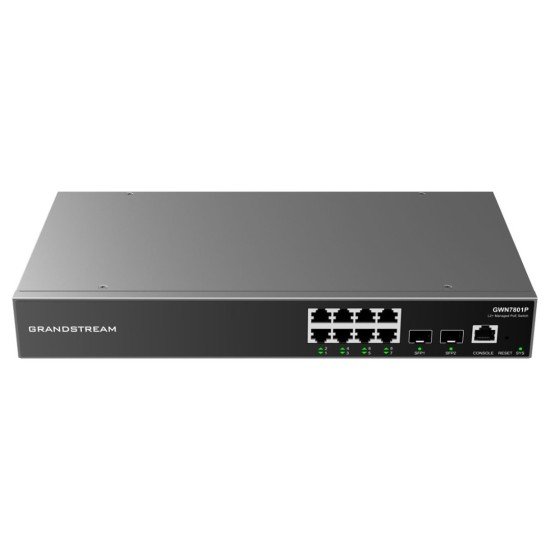

Grandstream GWN7801(P) Layer 2+ Managed Network Switch – 8-Port Gigabit, 2-Port SFP
The Grandstream GWN7801(P) is a Layer 2+ managed network switch designed for small and medium-sized businesses, enterprise branch networks, IP telephony, Wi-Fi infrastructure and other managed Ethernet deployments. It provides 8 Gigabit Ethernet RJ45 ports, 2 Gigabit SFP ports and a dedicated console interface for network management.
The GWN7801 is the standard non-PoE model, while the GWN7801P adds PoE and PoE+ capability across all 8 Gigabit Ethernet ports. The GWN7801P supports IEEE 802.3af/at with up to 30W per PoE port and up to 120W total PoE output, making it suitable for powering compatible IP phones, access points, cameras and other PoE devices.
Grandstream GWN7801(P) Layer 2+ Managed Switch Features
- Layer 2+ managed Gigabit Ethernet switch
- 8x 10/100/1000Mbps Gigabit Ethernet RJ45 ports
- 2x 1000Mbps SFP ports for fiber uplinks
- GWN7801P provides PoE/PoE+ on all 8 Ethernet ports
- IEEE 802.3af/at PoE support on the GWN7801P
- Up to 30W PoE output per port on GWN7801P
- Up to 120W total PoE output on GWN7801P
- 20Gbps switching capacity
- 10Gbps total non-blocking throughput
- 14.88Mpps forwarding rate
- Advanced VLAN and QoS functionality
- IPv4 and IPv6 network support
- Static routing and Layer 3 discovery and management features
- Management through local web interface, CLI, GDMS Networking and GWN Manager
Grandstream GWN7801(P) Technical Specifications
| Specification |
Details |
| Brand |
Grandstream |
| Model |
GWN7801 / GWN7801P |
| Product Type |
Layer 2+ Managed Network Switch |
| Gigabit Ethernet Ports |
8x 10/100/1000Mbps RJ45 |
| SFP Ports |
2x 1000Mbps SFP |
| Console Port |
1x Console |
| PoE Ports |
GWN7801: None; GWN7801P: 8 |
| PoE Standard |
GWN7801P: IEEE 802.3af/at |
| Maximum PoE Power per Port |
30W |
| Total PoE Power |
Up to 120W on GWN7801P |
| Switching Capacity |
20Gbps |
| Total Non-Blocking Throughput |
10Gbps |
| Forwarding Rate |
14.88Mpps |
| MAC Address Table |
8K |
| VLAN Support |
Up to 4K VLANs |
| Virtual Interfaces |
16 VLAN interfaces |
| Jumbo Frame |
Up to 10240 bytes |
| RAM |
128MB |
| Flash |
32MB |
| Management |
Local Web UI, CLI, GDMS Networking, GWN Manager and compatible GWN Router environments |
| Network Protocols |
IPv4, IPv6, IEEE 802.3 family, 802.1Q, 802.1p, 802.1w, 802.1d, 802.1s, 802.1x |
| Security |
802.1X, MAC authentication, RADIUS, TACACS+, DHCP Snooping, ARP Inspection, IP Source Guard, DoS protection |
| Power Supply |
GWN7801: 30W integrated PSU; GWN7801P: 150W integrated PSU |
| Power Input |
100-240V AC, 50-60Hz |
| Form Factor |
Desktop / Rack-mountable |
Grandstream GWN7801P PoE+ Switching
The GWN7801P is the PoE-enabled version of the GWN7801. Its eight Gigabit Ethernet ports support IEEE 802.3af/at PoE and PoE+ standards, with up to 30W available per port and up to 120W total PoE output. This allows compatible powered devices to receive both network connectivity and electrical power through a single Ethernet cable.
Typical PoE applications include Grandstream and third-party IP phones, Wi-Fi access points, IP surveillance cameras and other compatible PoE endpoints.
Grandstream GWN7801(P) VLAN and Network Management
The GWN7801(P) provides advanced VLAN functionality including port-based VLAN, IEEE 802.1Q VLAN tagging, MAC-based VLAN, protocol-based VLAN and QinQ. It also supports Voice VLAN features for IP telephony deployments.
Network administrators can manage the switch through its local web interface and command-line interface. The GWN7800 series can also integrate with Grandstream GDMS Networking and GWN Manager for centralized network management.
Grandstream GWN7801(P) Security Features
- IEEE 802.1X authentication
- MAC authentication
- RADIUS and TACACS+ AAA support
- DHCP and DHCPv6 Snooping
- ARP Inspection
- IP and IPv6 Source Guard
- Denial-of-Service attack prevention
- Port isolation and port security
- Sticky MAC functionality
- Storm control and loop protection
Applications
- Small and medium business networks
- Enterprise branch-office switching
- IP phone and VoIP networks
- Wi-Fi access point connectivity
- IP surveillance camera networks
- VLAN-based network segmentation
- Gigabit Ethernet access switching
- Fiber uplink connectivity through SFP ports
- Managed office and campus networks
Grandstream GWN7801(P) Compatibility
The GWN7801(P) is compatible with standard Ethernet network infrastructure and 1000Mbps SFP optical modules supported by the switch. The GWN7801P should be selected when PoE/PoE+ power delivery is required.
For optical uplinks, the two dedicated 1000Mbps SFP ports can be used with compatible Gigabit SFP modules and fiber cabling. Always verify the exact SFP module, fiber type and required transmission distance before deployment.
Grandstream GWN7801(P) Price in Bangladesh
For the latest Grandstream GWN7801(P) Layer 2+ Managed Network Switch price in Bangladesh, contact Datacom Technologies (BD). Pricing and availability may vary depending on the exact GWN7801 or GWN7801P variant, sourcing, warranty and current market conditions.
Why Choose Grandstream GWN7801(P)?
- Layer 2+ managed switching for flexible business network deployments
- 8 Gigabit Ethernet ports and 2 Gigabit SFP uplink ports
- Advanced VLAN, QoS and network security features
- GWN7801P provides up to 120W total PoE/PoE+ power
- Centralized management through Grandstream networking platforms
- Suitable for IP phones, Wi-Fi access points, cameras and enterprise Ethernet devices
Buy Grandstream GWN7801(P) in Bangladesh
To purchase the Grandstream GWN7801 or GWN7801P Layer 2+ Managed Network Switch in Bangladesh, contact Datacom Technologies (BD) for current pricing, variant confirmation and compatibility assistance.
