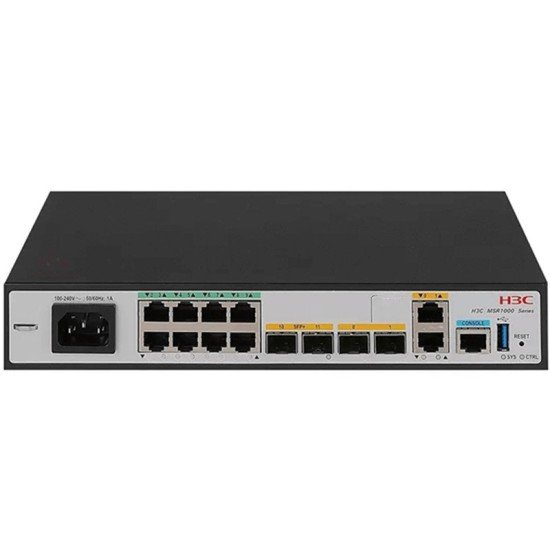

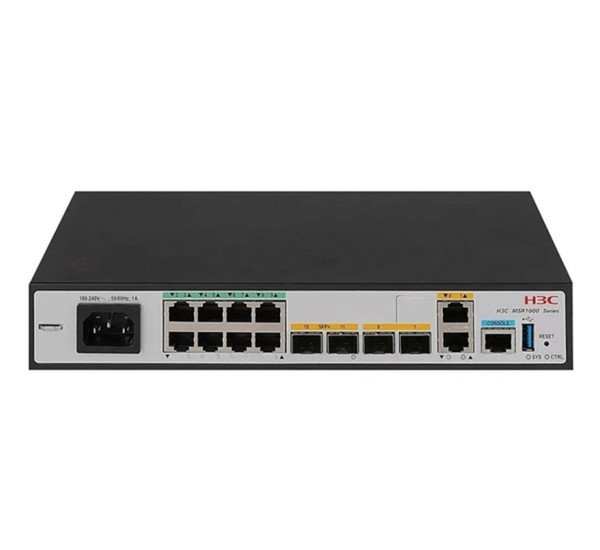

H3C MSR1008

The MSR1008 is a 1U rack-mounted, modular router that strikes a balance between fixed configuration simplicity and expansion flexibility. It's built to handle multiple services simultaneously, such as routing, security, voice, and wireless, making it a true "all-in-one" device for branch offices.

Key Specifications at a Glance

Detailed Analysis of Features

1. Fixed Port Configuration

The "1008" in the name primarily refers to its eight built-in Gigabit Ethernet ports.

• Flexible Role Assignment: These ports are not hard-coded as WAN or LAN. They can be configured in any combination, e.g., 2 WAN ports for dual internet connections and 6 LAN ports for internal devices.

• Switching Capability: The ports can be grouped into a single broadcast domain (a switch) or kept separate.

2. Modular Expansion (SIC Slots)

This is a key feature that differentiates it from simpler routers. The two SIC slots allow you to add functionality such as:

• xDSL Modems: For connecting to DSL internet services.

• E1/T1 Interfaces: For legacy digital line connections.

• Serial Ports (Async/Sync): For old-school leased lines or console access to other devices.

• SFP Fiber Slots: To add fiber uplinks (Gigabit SFP, not 10G SFP+).

• 4G/LTE Modems: For cellular backup or primary WAN connectivity.

3. Software & Feature Set

The MSR series runs H3C's Comware OS (v5 or v7, depending on the hardware generation), which is a robust, enterprise-grade operating system.

• Routing: Supports static routes, RIPv2, OSPF, BGP.

• Security: Stateful firewall, IPSec & SSL VPN, ACLs.

• Unified Threat Management (UTM): Optional license for Application Control, IPS, Web Filtering, and Anti-Virus.

• Voice Services: Can act as a VoIP gateway with the appropriate modules.

• WAN Optimization: Basic features like data compression and TCP optimization.

Strengths and Advantages

• Excellent Port Density: 8 built-in Gigabit ports is very handy for a branch office, reducing the immediate need for an external switch.

• Expansion Flexibility: The SIC slots allow the router to adapt to various WAN technologies (DSL, Fiber, Cellular, Serial).

• Enterprise Features: Runs the same Comware OS as larger H3C routers, ensuring feature parity and consistent management.

• All-in-One Capability: Can consolidate routing, security, and WAN connectivity into one device.

• Reliability: Designed for business-critical environments with high uptime requirements.

Weaknesses and Limitations

• Performance with UTM: Like all UTM devices, enabling deep packet inspection (IPS, Anti-Virus) will significantly reduce throughput.

• Subscription Costs: Advanced UTM features require ongoing subscription fees for signature updates.

• Older Hardware: Depending on the specific version, the MSR1008 may use older-generation processors that can't compete with the raw throughput of modern MikroTik CCRs.

• Complexity: Comware OS, while powerful, has a steeper learning curve than a typical consumer router.

Ideal Use Cases

1. Enterprise Branch Office: The classic use case. Provides secure, reliable connectivity back to headquarters via VPN, with flexibility for various local WAN connections.

2. Small Business Main Gateway: For a business with 20-100 users that needs multiple internet connections (e.g., fiber primary, 4G backup) and integrated security.

3. Retail Chain Store: Connects all POS systems and provides guest WiFi, often with cellular failover installed via a SIC module.

4. Voice-Enabled Site: Can be equipped with voice interface cards to connect to traditional PBX systems or provide VoIP services.
