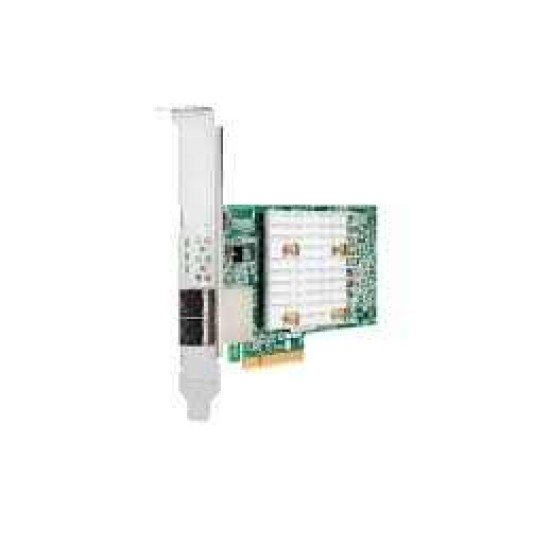

HPE Smart Array E208e-p SR Gen10 12G SAS RAID Controller – 804398-B21
The HPE Smart Array E208e-p SR Gen10 is an enterprise storage controller designed to connect HPE Gen10 servers to externally attached SAS and SATA storage. With 12Gb/s SAS connectivity, eight external SAS lanes and a PCIe 3.0 x8 host interface, it provides a cost-effective solution for external disk enclosures, JBOD storage and software-defined storage environments.
The E208e-p operates in Mixed Mode, allowing RAID and HBA operations to run simultaneously. The controller provides RAID 0, 1, 5 and 10 functionality and supports HPE Smart Array SR Secure Encryption with the appropriate optional license.
HPE Smart Array E208e-p SR Gen10 Features
- HPE Smart Array E208e-p SR Gen10 storage controller
- 12Gb/s SAS connectivity
- 6Gb/s SATA connectivity
- Eight external SAS lanes
- Two external x4 Mini-SAS HD ports
- PCI Express 3.0 x8 host interface
- No onboard cache
- RAID 0, 1, 5 and 10 support
- Mixed Mode for simultaneous RAID and HBA operation
- Support for software-defined storage environments
- Optional HPE Smart Array SR Secure Encryption
- High-profile and low-profile brackets included
HPE 804398-B21 Technical Specifications
| Specification |
Details |
| Brand |
HPE |
| Product |
Smart Array E208e-p SR Gen10 |
| Part Number |
804398-B21 |
| Controller Type |
PCIe Plug-in Storage / RAID Controller |
| Storage Protocol |
12Gb/s SAS, 6Gb/s SATA |
| External SAS Lanes |
8 |
| External Ports |
2 x4 Mini-SAS HD |
| Host Interface |
PCI Express 3.0 x8 |
| Cache |
No Cache |
| Supported RAID |
RAID 0, 1, 5, 10 |
| Operating Mode |
Mixed Mode RAID + HBA |
| Encryption |
HPE Smart Array SR Secure Encryption with optional license |
| Form Factor |
Standard PCIe Plug-in Controller |
| Bracket |
High Profile and Low Profile |
HPE E208e-p SR Gen10 Compatibility
The HPE 804398-B21 is documented for selected HPE Gen10 server platforms including ProLiant DL360 Gen10, DL380 Gen10, DL385 Gen10, DL560 Gen10, DL580 Gen10, ML110 Gen10, ML350 Gen10 and selected HPE Apollo systems.
The controller is designed for external storage environments and is compatible with supported HPE external disk enclosures such as the HPE D3610, D3710 and D6020. HPE also lists selected MSA storage systems in its supported configuration information.
Exact compatibility should be checked against the server model, firmware, storage enclosure, cabling and intended RAID configuration before installation.
Applications
- External SAS storage connectivity
- External SATA storage connectivity
- HPE disk enclosure expansion
- JBOD storage environments
- RAID 0, 1, 5 and 10 deployments
- Software-defined storage solutions
- Enterprise server storage expansion
- Mixed RAID and HBA storage configurations
HPE Smart Array E208e-p SR Gen10 Price in Bangladesh
For the latest HPE Smart Array E208e-p SR Gen10 804398-B21 price in Bangladesh, contact Datacom Technologies (BD). Pricing and availability may vary depending on sourcing, product condition, warranty and stock status.
Why Choose HPE E208e-p SR Gen10?
- 12Gb/s SAS connectivity for high-speed external storage
- Eight external SAS lanes through two Mini-SAS HD ports
- PCIe 3.0 x8 host interface for compatible Gen10 servers
- RAID and HBA operation through Mixed Mode
- Supports RAID 0, 1, 5 and 10
- Suitable for external JBOD, disk enclosure and SDS deployments
Buy HPE Smart Array E208e-p SR Gen10 in Bangladesh
To purchase the HPE Smart Array E208e-p SR Gen10 12G SAS RAID Controller in Bangladesh, contact Datacom Technologies (BD) for current pricing, compatibility confirmation and sourcing information.
