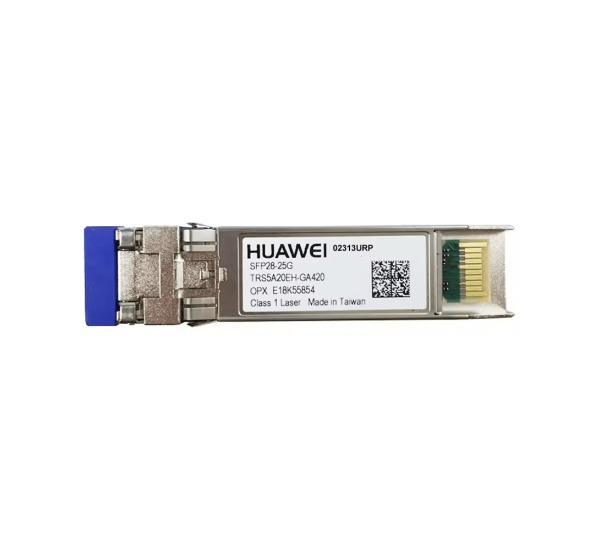

About Huawei SFP-25G-SR 02313URP 25GBASE-SR SFP28 Optical Transceiver in Bangladesh
The Huawei 02313URP is an SFP-25G-SR optical transceiver designed for 25 Gigabit Ethernet networking over multimode fiber. Using an SFP28 form factor, 850nm optical wavelength and LC connector, it provides a high-speed short-reach connectivity solution for compatible Huawei switches, routers, servers and data-center networking environments.
The official Huawei product information identifies 02313URP as the SFP-25G-SR, with a 25GBASE-SR application standard, SFP28 form factor, LC connector, multimode fiber support, 850nm wavelength and 25Gbit/s transmission rate. :contentReference[oaicite:1]{index=1}
Huawei 02313URP 25G SFP28 Optical Module Specifications & Features
| Specification | Details |
|---|
| Brand | Huawei |
| Module Name | SFP-25G-SR |
| Part Number | 02313URP |
| Form Factor | SFP28 |
| Transmission Rate | 25 Gbit/s |
| Application Standard | 25GBASE-SR |
| Wavelength | 850nm |
| Fiber Type | Multimode Fiber (MMF) |
| Connector | LC / Duplex LC |
| Maximum Reach | 100m over OM4 |
| DDM | Supported |
| Operating Temperature | 0°C to 70°C |
Overview
The Huawei 02313URP SFP-25G-SR is a 25Gbps short-range optical transceiver for high-speed data-center and enterprise networking. It uses multimode fiber and an 850nm optical wavelength, making it suitable for short-distance interconnections between compatible network switches, servers and other 25GbE equipment.
The module follows the SFP28 form factor and uses an LC optical interface. Huawei's hardware documentation specifies a target distance of up to 70m over OM3 and 100m over OM4 when operating at a BER of 5×10-5. :contentReference[oaicite:2]{index=2}
Buy Huawei 02313URP 25G SFP28 Optical Module in Bangladesh
Purchase the Huawei SFP-25G-SR 02313URP 25GBASE-SR SFP28 optical transceiver from Datacom Technologies (BD). We supply Huawei optical modules, SFP/SFP28 transceivers, network switches and data-center networking equipment in Bangladesh with competitive pricing, technical consultation and nationwide delivery.
Key Features
- 25Gbps optical networking
- SFP28 form factor
- 25GBASE-SR standard
- 850nm optical wavelength
- Multimode Fiber (MMF) support
- LC duplex connector
- Up to 100m reach over OM4 fiber
- Up to 70m reach over OM3 fiber at specified BER
- Digital Diagnostic Monitoring (DDM) supported
- 0°C to 70°C operating temperature
- Suitable for compatible Huawei networking equipment
25Gbps High-Speed Connectivity
The Huawei 02313URP provides 25Gbit/s optical connectivity using the SFP28 interface. It is designed for high-bandwidth networking environments where 25GbE connectivity is required between compatible network devices.
The module is suitable for applications such as switch-to-switch links, server connectivity, data-center network aggregation and other short-distance 25GbE connections.
25GBASE-SR Optical Standard
The 02313URP uses the 25GBASE-SR optical standard. SR, or Short Reach, is designed for short-distance transmission over multimode optical fiber.
This makes the module particularly suitable for data-center environments where network devices are located within the same rack, adjacent racks or nearby equipment rows.
850nm Multimode Optical Transmission
The transceiver operates at a nominal 850nm wavelength and uses multimode fiber. Huawei's specifications list a maximum transmit optical power of 2.4dBm and minimum transmit optical power of -8.4dBm. :contentReference[oaicite:3]{index=3}
The receiver sensitivity is specified at -10.3dBm, with an overload power of 2.4dBm. :contentReference[oaicite:4]{index=4}
OM3 and OM4 Fiber Support
The Huawei 02313URP is designed for multimode fiber infrastructure. Huawei specifies target transmission distances of up to 70m over OM3 and 100m over OM4 when the specified BER is 5×10-5. :contentReference[oaicite:5]{index=5}
For a lower BER target of 10-12, Huawei's documentation specifies 30m over OM3 and 40m over OM4. :contentReference[oaicite:6]{index=6}
LC Duplex Connector
The 02313URP uses an LC optical connector. The LC duplex interface provides separate transmit and receive optical paths for the network connection.
Always verify that the installed fiber patch cable uses the correct LC connector and multimode fiber type for the intended link.
SFP28 Form Factor
The Huawei 02313URP uses the compact SFP28 form factor. SFP28 is widely used for 25GbE network connectivity in modern data-center switches, routers and server adapters.
Its compact design allows high port density in compatible networking equipment.
Digital Diagnostic Monitoring
The 02313URP supports Digital Diagnostic Monitoring (DDM). DDM can provide optical and operational information from supported network equipment, helping administrators monitor transceiver operating conditions.
Operating Temperature
The specified operating case temperature range is 0°C to 70°C. :contentReference[oaicite:7]{index=7}
This temperature range makes the module appropriate for standard data-center and enterprise networking environments with controlled operating temperatures.
Data Center Applications
The Huawei 02313URP is well suited to short-reach 25GbE connectivity within data centers and enterprise networks.
- 25GbE switch-to-switch links
- Server-to-switch connectivity
- Data-center rack interconnects
- Network aggregation
- High-performance computing networks
- Storage networking
- Enterprise LAN infrastructure
- 25GbE uplinks
Huawei Network Equipment
The 02313URP is a Huawei optical module designed for compatible Huawei networking equipment. Huawei's S110, S220, S310, S530 and S620 hardware documentation lists the SFP-25G-SR 02313URP among the pluggable optical modules supported by the relevant platforms. :contentReference[oaicite:8]{index=8}
Compatibility should always be checked against the exact switch or router model, port type, software version and supported transceiver list before deployment.
Huawei 02313URP vs 25GBASE-LR
| Feature |
Huawei 02313URP |
Typical 25GBASE-LR |
| Standard |
25GBASE-SR |
25GBASE-LR |
| Form Factor |
SFP28 |
SFP28 |
| Wavelength |
850nm |
1310nm |
| Fiber |
Multimode |
Single-mode |
| Reach |
Up to 100m over OM4 |
Typically up to 10km |
| Primary Use |
Short-reach data-center links |
Longer-distance network links |
Compatibility Considerations
The 02313URP is a 25GBASE-SR multimode SFP28 module. It should not be substituted directly for a 25GBASE-LR single-mode module because the optical wavelength, fiber type and transmission characteristics are different.
- Verify the network port supports SFP28/25GbE
- Use compatible multimode fiber
- Use LC duplex connectivity
- Verify OM3/OM4 link distance
- Confirm Huawei equipment compatibility
- Check supported transceiver lists and firmware requirements
Why Choose Huawei 02313URP?
- 25Gbps high-speed Ethernet connectivity
- Compact SFP28 form factor
- 25GBASE-SR multimode optical transmission
- 850nm wavelength
- LC duplex connector
- Up to 100m over OM4
- DDM support
- Suitable for short-reach data-center applications
- Designed for compatible Huawei network equipment
Why Buy from Datacom Technologies (BD)?
Datacom Technologies (BD) supplies Huawei optical modules, SFP/SFP28 transceivers, enterprise switches, routers and data-center networking equipment in Bangladesh. Customers can receive competitive pricing, technical consultation, deployment assistance and nationwide delivery.
- Call/WhatsApp: +8801748173213
- Email: sales@datacom.com.bd
- Alternative Email: datacomtechnologiesbd@gmail.com
- Office: Tropical Center, 218, Dr. Kudroti Khuda Road, New Elephant Road, Dhaka-1205, Bangladesh
Frequently Asked Questions (FAQ)
Q1: What is Huawei 02313URP?
Huawei 02313URP is the part number for the SFP-25G-SR 25GBASE-SR SFP28 optical transceiver.
Q2: What speed does the 02313URP support?
It supports a transmission rate of 25Gbit/s.
Q3: What is the wavelength?
The module operates at 850nm.
Q4: Does 02313URP use single-mode or multimode fiber?
It is designed for multimode fiber (MMF).
Q5: What connector does Huawei 02313URP use?
It uses an LC optical connector, typically as a duplex LC interface.
Q6: What is the maximum transmission distance?
Huawei specifies up to 100m over OM4 multimode fiber at a BER of 5×10-5. Over OM3, the corresponding distance is up to 70m. :contentReference[oaicite:9]{index=9}
Q7: Does 02313URP support DDM?
Yes. Huawei specifies Digital Diagnostic Monitoring (DDM) support. :contentReference[oaicite:10]{index=10}
Q8: What form factor does it use?
The module uses the SFP28 form factor.
Q9: Is 02313URP suitable for 25GbE data centers?
Yes. It is designed for 25GBASE-SR short-reach optical networking and is suitable for compatible data-center and enterprise network environments.
Q10: Can 02313URP be used with OM3 fiber?
Yes. Huawei specifies up to 70m over OM3 at a BER of 5×10-5. :contentReference[oaicite:11]{index=11}
Q11: Can 02313URP be used with OM4 fiber?
Yes. Huawei specifies up to 100m over OM4 at a BER of 5×10-5. :contentReference[oaicite:12]{index=12}
Q12: Is 02313URP a 25GBASE-LR module?
No. It is a 25GBASE-SR multimode module operating at 850nm.
Q13: What is the operating temperature?
The specified operating case temperature range is 0°C to 70°C. :contentReference[oaicite:13]{index=13}
