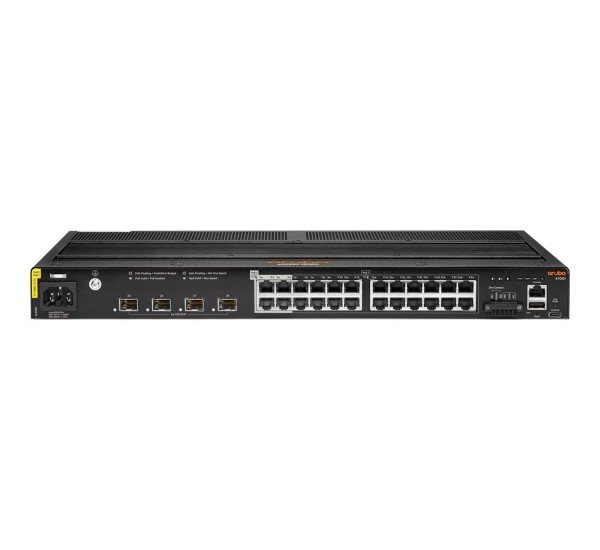

HPE Aruba Networking CX 4100i JL818A 24-Port Industrial PoE Switch
The HPE Aruba Networking CX 4100i JL818A is a ruggedized 24-port Gigabit Ethernet switch designed for industrial, enterprise edge, IoT, access point, surveillance, transportation and other demanding networking environments. It combines 100M/1G copper connectivity, high-power PoE, 1/10G SFP+ uplinks and the Aruba AOS-CX operating system in a fanless rackmount platform.
The JL818A provides 24 x 100M/1G Base-T PoE ports, including 20 Class 4 PoE ports supporting up to 30W per port and 4 Class 6 PoE ports supporting up to 60W per port. It supports IEEE 802.3af, 802.3at and 802.3bt PoE standards, making it suitable for powering compatible wireless access points, IP cameras, IoT devices, sensors and other network endpoints directly through Ethernet cabling.
For uplink connectivity, the switch provides 4 x 1/10G SFP+ ports, allowing high-speed fiber or compatible direct-attach connectivity between the industrial access layer and aggregation or core network. The switch offers up to 128 Gbps switching capacity and up to 95 Mpps throughput, depending on the applicable configuration.
Technical Specifications
| Brand | HPE Aruba Networking |
|---|
| Series | Aruba CX 4100i |
|---|
| Model / SKU | JL818A |
|---|
| Switch Type | Managed Industrial Ethernet Switch |
|---|
| Copper Ports | 24 x 100M/1G Base-T |
|---|
| Class 4 PoE Ports | 20 ports, up to 30W per port |
|---|
| Class 6 PoE Ports | 4 ports, up to 60W per port |
|---|
| PoE Standards | IEEE 802.3af, 802.3at and 802.3bt |
|---|
| Total PoE Budget | 240W, no derating |
|---|
| Uplink Ports | 4 x 1/10G SFP+ |
|---|
| Console | 1 x USB-C console and 1 x RJ45 console |
|---|
| USB Host | 1 x USB Type-A |
|---|
| Alarm | 1 x alarm socket |
|---|
| Switching Capacity | Up to 128 Gbps |
|---|
| Throughput | Up to 95 Mpps |
|---|
| Processor | Dual-Core ARM Cortex-A9 at 1016 MHz |
|---|
| Memory | 4GB DDR3 |
|---|
| Storage | 32GB eMMC |
|---|
| Packet Buffer | 12.38MB |
|---|
| Power Supply | Fixed internal 300W power supply |
|---|
| Cooling | Fanless |
|---|
| Dimensions | 44 x 444.5 x 304.4 mm |
|---|
| Weight | Approx. 6.47 kg |
|---|
| Mounting | Rackmount; 2-post rack mounting kit included, 4-post kit available separately |
|---|
| Operating Temperature | -40°C to 60°C at 0 m/s; up to 75°C under specified airflow conditions |
|---|
| Operating System | HPE Aruba Networking AOS-CX |
|---|
Advanced Networking and Management
The JL818A runs HPE Aruba Networking AOS-CX, providing a modern management platform for enterprise and industrial networks. Depending on the deployed software and licensing configuration, administrators can use features such as VLANs, Layer 2 and Layer 3 networking, ACLs, QoS, dynamic segmentation, role-based access controls and centralized network management.
The platform supports management through CLI and web-based interfaces, with integration options including HPE Aruba Networking Central and Aruba network management tools. This makes the CX 4100i suitable for organizations that require centralized visibility and consistent configuration across distributed network infrastructure.
Industrial Deployment
The fanless design helps reduce mechanical components in environments where reliability and low maintenance are important. Its ruggedized construction and wide operating-temperature capability make the JL818A suitable for industrial automation, transportation infrastructure, surveillance networks, IoT deployments, utility environments and harsh edge-network installations.
The high-power PoE ports can simplify deployment of compatible powered devices by carrying both data and electrical power over Ethernet. The 1/10G SFP+ uplinks provide additional bandwidth for connecting the switch to aggregation, core or fiber-based infrastructure.
Compatibility and Applications
The JL818A is appropriate for organizations deploying Gigabit Ethernet endpoints together with PoE-powered devices and high-speed fiber uplinks. Compatible SFP/SFP+ transceivers should be selected according to the required fiber type, wavelength, transmission distance and network architecture.
- Industrial Ethernet and factory networking
- Industrial IoT and edge connectivity
- IP surveillance and security infrastructure
- Wireless access point deployments
- Transportation and infrastructure networks
- Enterprise edge and building networks
- Utility and other demanding networking environments
HPE Aruba CX 4100i JL818A Price in Bangladesh
For the latest HPE Aruba Networking CX 4100i JL818A price in Bangladesh, contact Datacom Technologies (BD). Pricing and availability may vary depending on sourcing, product condition, warranty and stock status.
Contact: sales@datacom.com.bd
When purchasing, confirm the exact JL818A SKU, required SFP/SFP+ optics, PoE requirements, installation environment and warranty condition to ensure the switch is suitable for the intended network deployment.
