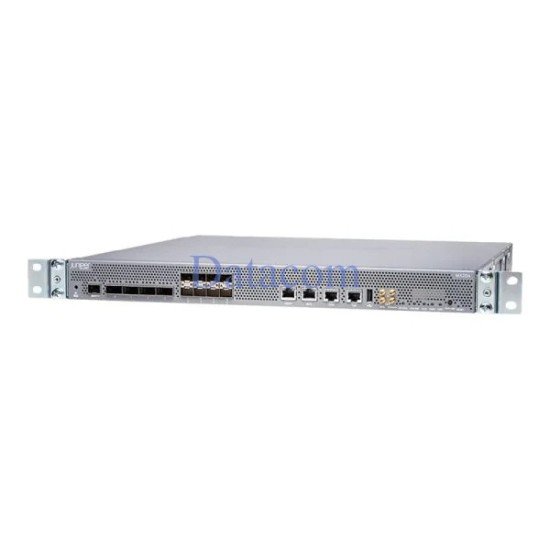

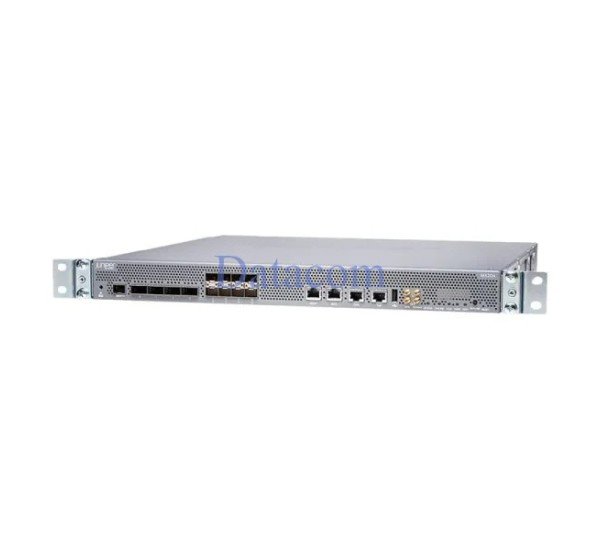

Juniper MX204-HWBASE-AC-FS 400Gbps Universal Routing Platform
The Juniper MX204-HWBASE-AC-FS is a fixed-configuration MX204 Universal Routing Platform designed for high-performance enterprise, service-provider, metro Ethernet, cloud-edge and network aggregation deployments. It combines 400Gbps routing capacity with high-density 10GbE and 40/100GbE connectivity in a compact 1U chassis.
This specific SKU is the MX204 Fixed AC System and includes the MX204 chassis, three fan trays, two AC power supplies, base hardware and standard Junos software. Juniper specifies that the feature right-to-use must be ordered separately for this configuration.
Juniper MX204-HWBASE-AC-FS Technical Specifications
| Specification |
Details |
| Brand |
Juniper Networks |
| Model |
MX204-HWBASE-AC-FS |
| Platform |
MX204 Universal Routing Platform |
| Product Type |
Fixed Universal Routing Platform |
| Routing Capacity |
400 Gbps |
| Form Factor |
1U |
| 10GbE Ports |
8 × SFP+ |
| High-Speed Ports |
4 × QSFP+ |
| QSFP+ Port Configuration |
Rate-selectable 40GbE/100GbE with supported channelization |
| Console Port |
1 × RJ-45 |
| Management Port |
1 × RJ-45 |
| USB |
1 × Type-A |
| Timing Interfaces |
10 MHz, BITS, PPS, PTP and ToD |
| Power |
AC |
| Power Supply |
2 × 650W AC power supplies |
| Power Redundancy |
1+1 |
| Cooling |
3 × hot-removable fan modules |
| Airflow |
Front-to-back |
| Processor |
1.6GHz Intel 8-core x86 |
| Memory |
32GB |
| Internal Storage |
200GB SSD (2 × 100GB) |
| Operating System |
Junos OS |
| Dimensions |
17.6 × 1.72 × 18.5 in (44.7 × 4.37 × 46.99 cm) |
| Fully Loaded Weight |
23.15 lb (10.5 kg) |
| Operating Temperature |
0°C to 40°C |
High-Density Ethernet Connectivity
The MX204-HWBASE-AC-FS provides four rate-selectable QSFP+ ports capable of 40GbE or 100GbE operation. Supported channelization allows these high-speed ports to be used for additional 10GbE connectivity where the appropriate breakout configuration is deployed. The router also includes eight dedicated 10GbE SFP+ ports.
Carrier-Grade Junos Routing Platform
Built around Juniper's Trio chipset, the MX204 is designed for scalable Layer 2 and Layer 3 packet forwarding, buffering and queuing. Junos OS provides the routing software environment for advanced IP networking, MPLS, VPN services, Ethernet services, broadband aggregation and high-volume data-center interconnection.
Redundant AC Power and Cooling
The MX204-HWBASE-AC-FS includes two 650W AC power supplies operating with 1+1 redundancy. Each power supply is hot-removable and hot-insertable, allowing maintenance while maintaining system operation when the redundant power configuration is available. Three hot-removable fan modules provide front-to-back airflow.
Enterprise, ISP and Network Aggregation Applications
The compact 1U design and 400Gbps routing capacity make the MX204 suitable for enterprise WAN, ISP edge routing, metro Ethernet, broadband aggregation, cloud connectivity, data-center interconnection and service-provider networks. Its integrated timing interfaces also support deployments requiring precise network synchronization.
Juniper MX204-HWBASE-AC-FS Configuration Note
The MX204-HWBASE-AC-FS is a specific fixed AC system SKU. Juniper lists it with base hardware and standard Junos software, while the required feature right-to-use is ordered separately. Customers should verify the required software feature licensing, optics, breakout cables and interface configuration before deployment.
Juniper MX204-HWBASE-AC-FS Price in Bangladesh
For the latest Juniper MX204-HWBASE-AC-FS price in Bangladesh, contact Datacom Technologies (BD). Pricing and availability may vary depending on sourcing, product condition, warranty and stock status.
Datacom Technologies (BD) can assist with Juniper MX Series routers, compatible optics, licensing requirements and enterprise or service-provider networking solutions.
