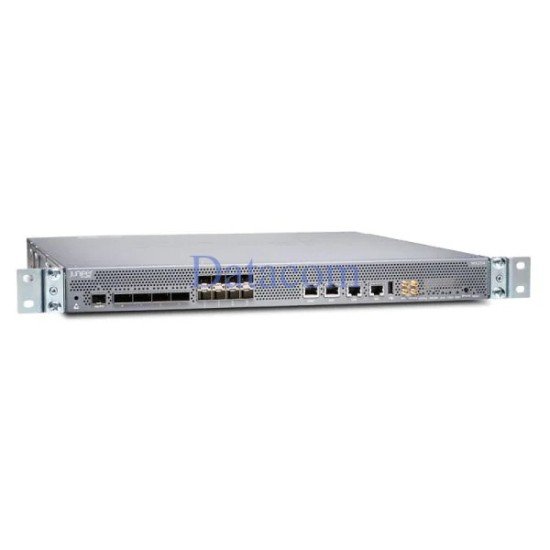

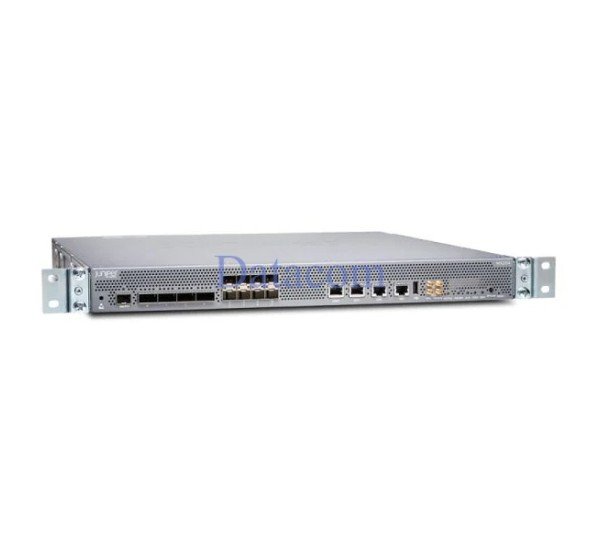

Juniper MX204-R Universal Routing Platform
The Juniper MX204-R is a compact, high-performance 1RU Universal Routing Platform designed for enterprise, service-provider, metro Ethernet, cloud-edge and high-density aggregation environments. Based on the Juniper MX204 platform, it delivers up to 400 Gbps of system throughput while combining high-density 10GbE, 40GbE and 100GbE connectivity in a space-efficient chassis.
The MX204-R is powered by the Juniper Trio programmable chipset and runs Junos OS, providing a comprehensive routing, switching, MPLS and multiservice feature set. Its compact architecture makes it suitable for deployments where high port density and throughput are required without the footprint of a larger modular MX chassis.
Juniper MX204-R Technical Specifications
| Specification |
Details |
| Brand |
Juniper Networks |
| Model |
MX204-R |
| Product Type |
Universal Routing Platform |
| Series |
Juniper MX Series |
| System Throughput |
400 Gbps |
| Form Factor |
1RU |
| High-Speed Ports |
4 rate-selectable 100GbE/40GbE ports |
| 10GbE Ports |
8 × 10GbE SFP+ |
| Breakout Capability |
Rate-selectable 40/100GbE ports can support 4 × 10GbE breakout configurations |
| Operating System |
Juniper Junos OS |
| Routing Architecture |
Programmable Juniper Trio chipset |
| Power Options |
100–240V AC or -40 to -72V DC, depending on configuration |
| Dimensions |
17.6 × 1.75 × 18.7 in (44.7 × 4.45 × 47.5 cm) |
| Maximum Weight |
23.15 lb (10.5 kg) |
| Operating Temperature |
0°C to 55°C |
High-Density Ethernet Connectivity
The MX204 platform provides four rate-selectable QSFP ports that can operate at 100GbE or 40GbE. These ports can also be configured for 10GbE connectivity using supported breakout configurations. In addition, eight dedicated 10GbE SFP+ ports provide high-speed connectivity for aggregation, uplinks and edge deployments. Juniper documentation confirms support for up to 24 × 10GbE, 4 × 40GbE or 4 × 100GbE interfaces per chassis, depending on the selected port configuration.
Routing and Network Applications
The Juniper MX204-R is suitable for enterprise WAN, ISP networks, metro Ethernet, broadband aggregation, data-center edge, cloud connectivity, mobile backhaul and service-provider edge routing. Its Junos-based architecture supports advanced IP routing, MPLS, switching, service delivery, automation and telemetry capabilities.
The platform is also designed for high-density network environments where rack space and power efficiency are important. Juniper specifies the MX204 at approximately 0.9 W/Gb, making the platform well suited to compact edge and aggregation deployments.
Compact 1RU Enterprise and Service-Provider Router
With its 1RU form factor, 400Gbps system capacity and high-speed optical interfaces, the MX204-R provides a strong option for organizations requiring carrier-grade routing capabilities in a compact chassis. The router supports redundant power and fan configurations and can be deployed in standard four-post rack environments.
Compatibility and Configuration
Optics and breakout configurations should be selected according to the required interface speed, Junos OS version and Juniper hardware compatibility requirements. The MX204 supports QSFP28/QSFP+ transceivers on its rate-selectable ports and SFP+ transceivers on its dedicated 10GbE ports. Juniper's Hardware Compatibility Tool should be consulted before purchasing specific optics or adapters.
Juniper MX204-R Price in Bangladesh
For the latest Juniper MX204-R price in Bangladesh, contact Datacom Technologies (BD). Pricing and availability may vary depending on sourcing, product condition, warranty and stock status.
Datacom Technologies (BD) can assist with Juniper MX Series routers, compatible optics and enterprise or service-provider networking requirements.
