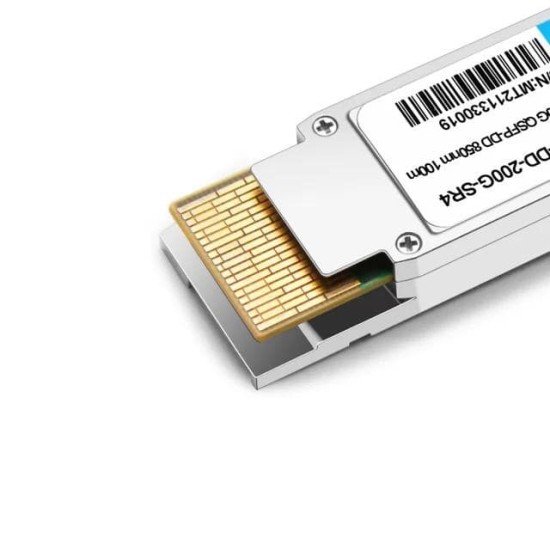

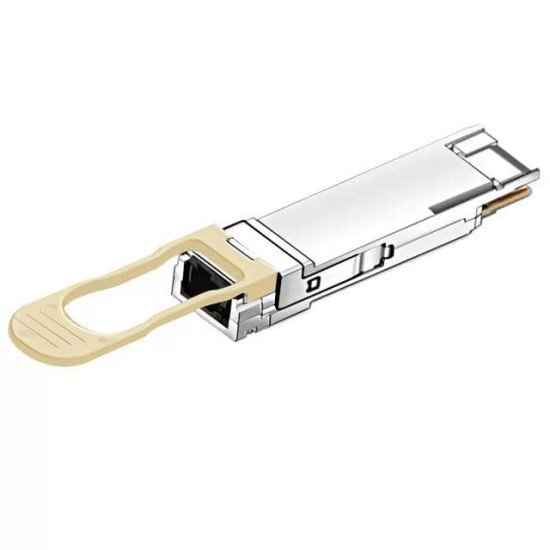

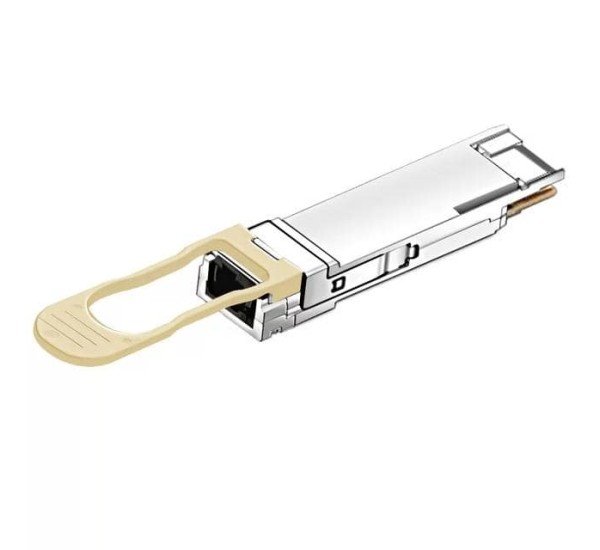

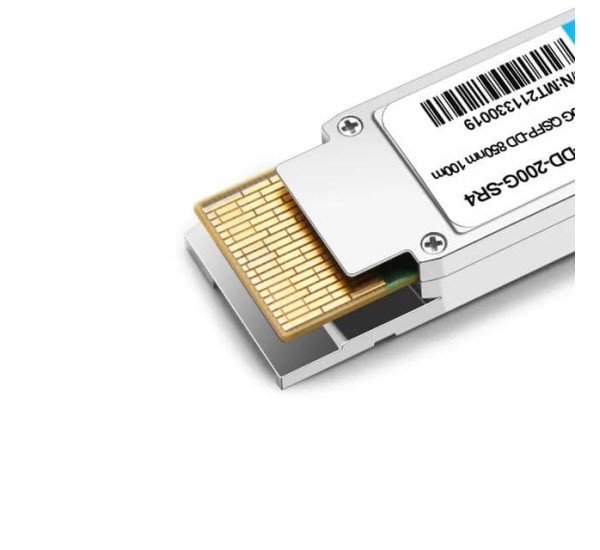

About Juniper QDD-2X100G-SR4 Optical Transceiver Module
Datacom Technologies (BD) offers the Juniper QDD-2X100G-SR4 Transceiver at the best price in Bangladesh. This high-performance module is ideal for data centers, enterprise networks, and service provider infrastructures. Experience unmatched speed and reliability with our top-quality networking solutions.
product Specification
| Parameter |
Value |
| Form Factor |
QSFP-DD |
| Data Rate |
200 Gbps (2x100G) |
| Wavelength |
850 nm |
| Distance |
70m (OM3), 100m (OM4) |
| Connector |
MTP/MPO-24 |
| Voltage Supply |
3.3V |
| Cable Type |
MMF |
| DDM Support |
Yes |
| Transmitter Type |
850nm VCSEL |
| Receiver Type |
PIN |
| TX Power (per lane) |
-8.4 dBm to 2.4 dBm |
| Receiver Sensitivity (per lane) |
< -10.3 dBm |
| Operating Temperature |
0 to 70°C |
| Maximum Power |
< 5W |
| Standards |
IEEE 802.3bm 100GBASE-SR4, QSFP-DD MSA |
| Applications |
200G Ethernet, Data Center Interconnect |
Description
The
Juniper QDD-2X100G-SR4 is a high-performance optical transceiver module designed for data center interconnects. This QSFP-DD form factor module supports a data rate of 200 Gbps, split into two 100G channels, for efficient data transmission.
Utilizing 850nm VCSEL transmitters and PIN receivers, it operates over multi-mode fiber (MMF) with a maximum distance of 70 meters for OM3 and 100 meters for OM4 fiber types.
The module incorporates advanced features like Digital Optical Monitoring (DDM) for real-time diagnostics and performance monitoring. Its hot-swappable design ensures easy installation and replacement without disrupting network operations. The QDD-2X100G-SR4 is compliant with industry standards, including IEEE 802.3bm 100GBASE-SR4 and QSFP-DD MSA, ensuring compatibility with various network equipment.
This transceiver module is ideal for high-speed data center environments requiring reliable and efficient connectivity. Its compact size and low power consumption make it suitable for dense deployments, while the high-speed data transfer capabilities meet the demands of modern data-intensive applications.
Supported/Comparable Models
Juniper QDD-2X100G-SR4 (original)
Compatible third-party QSFP-DD SR4 transceivers from various manufacturers
