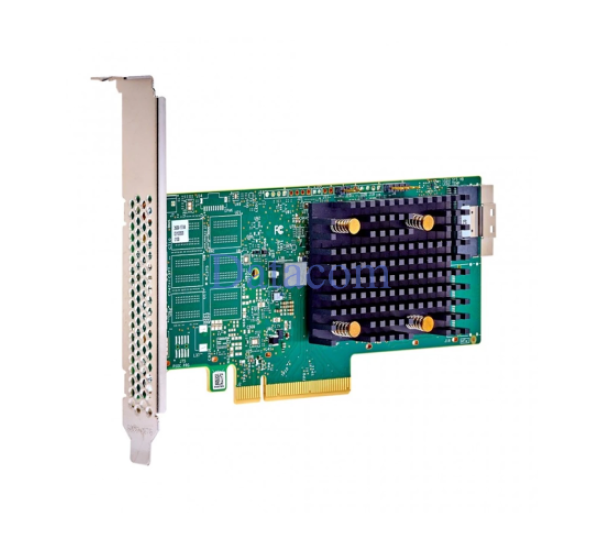

About LSI SAS Tri-Mode HBA 05-50134-01 12Gb/s NVMe SAS/SATA 8-Port in Bangladesh
The LSI SAS Tri-Mode HBA 05-50134-01 12Gb/s NVMe SAS/SATA 8-Port is an enterprise-grade Host Bus Adapter (HBA) designed for modern server and storage infrastructures that require high-speed, low-latency storage connectivity. This OEM adapter is equivalent to the Broadcom HBA 9500-8i and is powered by the Broadcom SAS3808 I/O controller. It supports Tri-Mode technology, enabling a single adapter to connect PCIe Gen4 NVMe SSDs, 12Gb/s SAS drives, and 6Gb/s SATA devices simultaneously. With its PCI Express 4.0 x8 host interface, the adapter provides high bandwidth for enterprise applications including virtualization, cloud computing, software-defined storage, database servers, and backup infrastructure.
Specifications & Overview
| Specification |
Details |
| Product Type |
Tri-Mode Host Bus Adapter (HBA) |
| Brand |
LSI / Broadcom |
| Retail Equivalent |
Broadcom HBA 9500-8i |
| OEM Part Number |
05-50134-01 |
| Controller |
Broadcom SAS3808 |
| Host Interface |
PCI Express 4.0 x8 |
| PCIe Generation |
PCIe Gen4 |
| Operating Mode |
Tri-Mode (NVMe / SAS / SATA) |
| Internal Ports |
8 Ports |
| Connector |
1 × Internal SFF-8654 SlimSAS x8 |
| SAS Speed |
12Gb/s |
| SATA Speed |
6Gb/s |
| NVMe Support |
PCIe Gen4 NVMe SSD |
| Maximum SAS/SATA Devices |
Up to 1024 Devices |
| Maximum NVMe Devices |
Up to 32 Devices |
| Security |
Hardware Secure Boot |
| Management |
LSI Storage Authority (LSA), StorCLI, UEFI HII |
| Bracket |
Low Profile and Full Height |
| Form Factor |
Low Profile PCIe Add-in Card |
| Typical Power Consumption |
5.96 Watts |
| Operating Temperature |
0°C to 55°C |
| Supported Operating Systems |
Windows Server, VMware ESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu Server, Debian, Oracle Linux, CentOS, Fedora, FreeBSD, Citrix Hypervisor |
| Standards |
SAS-4, PCIe 4.0, Tri-Mode Storage |
The LSI SAS Tri-Mode HBA 05-50134-01 12Gb/s NVMe SAS/SATA 8-Port provides direct storage connectivity without hardware RAID abstraction, making it an ideal solution for enterprise operating systems and software-defined storage platforms. Organizations deploying VMware vSAN, Microsoft Storage Spaces, TrueNAS, OpenZFS, Ceph, Proxmox VE, or Linux-based storage servers benefit from direct disk access, simplified storage management, and improved scalability. The PCIe Gen4 architecture also delivers higher throughput than previous-generation HBAs, enabling enterprise SSDs and HDDs to operate efficiently under demanding workloads.
Designed for enterprise data centers, virtualization clusters, cloud service providers, database servers, media production environments, and high-capacity storage appliances, the LSI SAS Tri-Mode HBA 05-50134-01 12Gb/s NVMe SAS/SATA 8-Port offers excellent deployment flexibility. Its support for Tri-Mode storage allows organizations to migrate gradually between SAS, SATA, and NVMe technologies while protecting infrastructure investments and reducing overall storage complexity.
Buy LSI SAS Tri-Mode HBA 05-50134-01 12Gb/s NVMe SAS/SATA 8-Port in Bangladesh
Datacom Technologies (BD) supplies genuine enterprise storage adapters for system integrators, government organizations, financial institutions, cloud providers, telecommunications companies, and enterprise data centers across Bangladesh. If you are looking for the LSI SAS Tri-Mode HBA 05-50134-01 12Gb/s NVMe SAS/SATA 8-Port, our team can help verify server compatibility, storage requirements, and deployment options before purchase. Contact us today for the latest price, product availability, and technical consultation.
Compatibility
- Broadcom HBA 9500-8i compatible enterprise servers
- Intel Xeon-based server platforms
- AMD EPYC server platforms
- PCI Express 4.0 x8 expansion slots
- 12Gb/s SAS HDDs and SSDs
- 6Gb/s SATA HDDs and SSDs
- PCIe Gen4 NVMe SSDs
- SFF-8654 SlimSAS compatible backplanes
- Windows Server, VMware ESXi, and Linux platforms
- Software-defined storage and virtualization environments
Applications
- Enterprise storage servers
- Virtualization infrastructure
- Software-defined storage deployments
- Cloud computing platforms
- High-performance database servers
- Enterprise backup and recovery systems
- Media and video storage servers
- Hyper-converged infrastructure
- High-capacity JBOD storage solutions
- Data center storage expansion
Benefits of Choosing LSI SAS Tri-Mode HBA 05-50134-01 12Gb/s NVMe SAS/SATA 8-Port
The LSI SAS Tri-Mode HBA 05-50134-01 12Gb/s NVMe SAS/SATA 8-Port provides a flexible storage interface for enterprise environments by supporting SAS, SATA, and NVMe devices through a single controller. Its PCIe Gen4 x8 interface delivers higher bandwidth for modern storage workloads, while the Tri-Mode architecture simplifies future storage upgrades without replacing the HBA. As a true Host Bus Adapter, it enables direct disk access for ZFS, VMware vSAN, Microsoft Storage Spaces, Ceph, and other software-defined storage platforms, making it an excellent choice for enterprise servers, cloud infrastructure, and business-critical storage deployments.
Why Buy LSI SAS Tri-Mode HBA 05-50134-01 12Gb/s NVMe SAS/SATA 8-Port from Datacom Technologies (BD)?
Datacom Technologies (BD) is a trusted supplier of enterprise IT hardware in Bangladesh, serving data centers, government organizations, financial institutions, cloud providers, ISPs, and system integrators. We supply genuine enterprise Host Bus Adapters, RAID controllers, Fibre Channel HBAs, SmartNICs, enterprise SSDs, networking equipment, servers, and storage solutions from leading manufacturers. Our experienced technical team provides compatibility verification, deployment guidance, competitive pricing, and nationwide delivery to help customers build reliable enterprise infrastructure.
Datacom Technologies (BD)
Tropical Center, 218 Dr Kudrat-E-Khuda Road, New Elephant Road, Dhaka-1205, Bangladesh
Call / WhatsApp: +8801748173213
Email: sales@datacom.com.bd
Alternative Email: datacomtechnologiesbd@gmail.com
Frequently Asked Questions (FAQ)
1. Is the LSI SAS Tri-Mode HBA 05-50134-01 equivalent to the Broadcom HBA 9500-8i?
Yes. OEM part number 05-50134-01 corresponds to the Broadcom HBA 9500-8i and offers the same enterprise Tri-Mode HBA functionality.
2. Does the LSI SAS Tri-Mode HBA 05-50134-01 support NVMe SSDs?
Yes. The adapter supports PCIe Gen4 NVMe SSDs in addition to 12Gb/s SAS and 6Gb/s SATA storage devices through its Tri-Mode architecture.
3. Does this adapter provide hardware RAID?
No. The LSI SAS Tri-Mode HBA 05-50134-01 is a Host Bus Adapter designed for direct storage access. It does not provide hardware RAID functionality.
4. Which operating systems are supported?
The adapter supports Windows Server, VMware ESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu Server, Debian, Oracle Linux, CentOS, Fedora, FreeBSD, and other enterprise operating systems supported by Broadcom.
5. Where can I buy the LSI SAS Tri-Mode HBA 05-50134-01 in Bangladesh?
You can purchase the genuine LSI SAS Tri-Mode HBA 05-50134-01 from Datacom Technologies (BD). Contact our sales team for pricing, compatibility assistance, and product availability.
