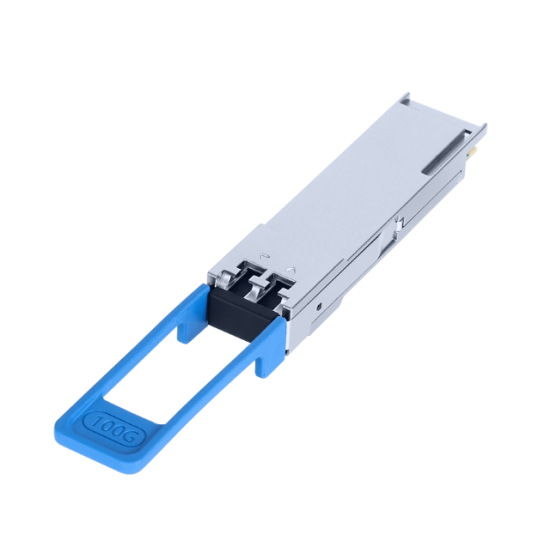

About Mellanox 100GBASE-LR4 QSFP28 10km Transceiver (QFP-LW31HG-10DC-FSZ)
Specification
| Parameter |
Value |
| Form Factor |
QSFP28 |
| Data Rate |
100Gb/s |
| Wavelength |
1295.56, 1300.05, 1304.58, 1309.14 nm |
| Transmission Distance |
Up to 10 km |
| Fiber Type |
Single Mode Fiber (SMF) |
| Connector Type |
Duplex LC |
| Power Supply |
Single +3.3V |
| Power Consumption |
< 4W |
| Operating Temperature |
0°C to 70°C |
| Storage Temperature |
-40°C to 85°C |
| Standards Compliance |
IEEE 802.3ba 100GBASE-LR4, IEEE 802.3bm CAUI-4 |
| Diagnostic Interface |
I2C |
Description
The Mellanox 100GBASE-LR4 QSFP28 10km Transceiver is a high-performance optical transceiver designed for use in 100 Gigabit Ethernet links over single-mode fiber (SMF) distances up to 10 kilometers. It complies with the QSFP28 Multi-Source Agreement (MSA) and IEEE 802.3ba 100GBASE-LR4 standards.
This transceiver utilizes four independent optical channels, each operating at 25Gb/s, to achieve an aggregate data rate of 100Gb/s. It employs Wavelength Division Multiplexing (WDM) technology to combine these four channels onto a single optical fiber. The transceiver incorporates advanced modulation and coding techniques to ensure reliable data transmission over long distances.
Key features of the Mellanox 100GBASE-LR4 QSFP28 transceiver include:
Hot-pluggable QSFP28 form factor: Enables easy installation and removal without powering down the system.
100Gb/s data rate: Supports high-speed data transmission for demanding applications.
10km transmission distance: Extends the reach of 100GbE networks over long distances.
Single-mode fiber compatibility: Allows for flexible deployment in various network environments.
Low power consumption: Reduces energy consumption and operating costs.
Digital diagnostic monitoring (DDM): Provides real-time monitoring of key operational parameters.
Compliance with industry standards: Ensures interoperability with other QSFP28-compliant devices.
The Mellanox 100GBASE-LR4 QSFP28 transceiver is ideal for a wide range of applications, including data center interconnect, high-performance computing, and long-haul network connectivity. It offers a reliable and cost-effective solution for high-speed data transmission over long distances.
Supported/Comparable Models
The Mellanox 100GBASE-LR4 QSFP28 transceiver is compatible with other 100GBASE-LR4 QSFP28 transceivers from various vendors. Some comparable models include:
FS.COM QSFP28-LR4-100G: A cost-effective and reliable 100GBASE-LR4 transceiver.
Edgecore QSFP28-LR4-100: A high-performance 100GBASE-LR4 transceiver with advanced features.
Cisco QSFP-100G-LR4: A Cisco-branded 100GBASE-LR4 transceiver.
What is the price of Mellanox 100GBASE-LR4 QSFP28 10km Transceiver (QFP-LW31HG-10DC-FSZ) in BD?
The latest price of Mellanox 100GBASE-LR4 QSFP28 10km Transceiver (QFP-LW31HG-10DC-FSZ) price in BD starts from
Taka 30,000 to Taka 50,000 depending on model, features and Warranty. To order your Transceiver Module , please contact us by call or WhatsApp (+8801748173213). You can also browse our online shop "Datacom Technologies (BD)" and order your Transceiver Module directly.
