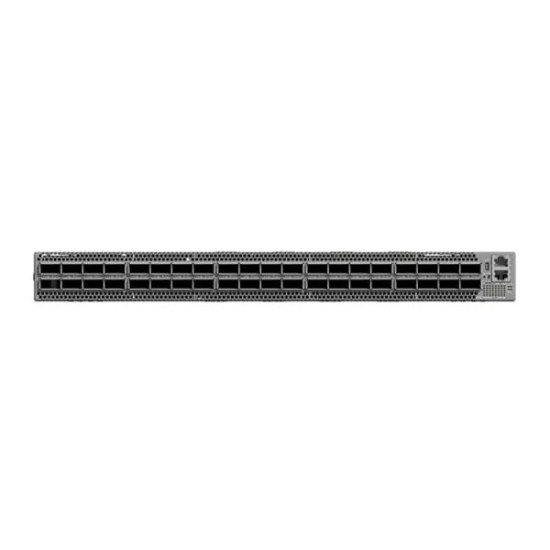

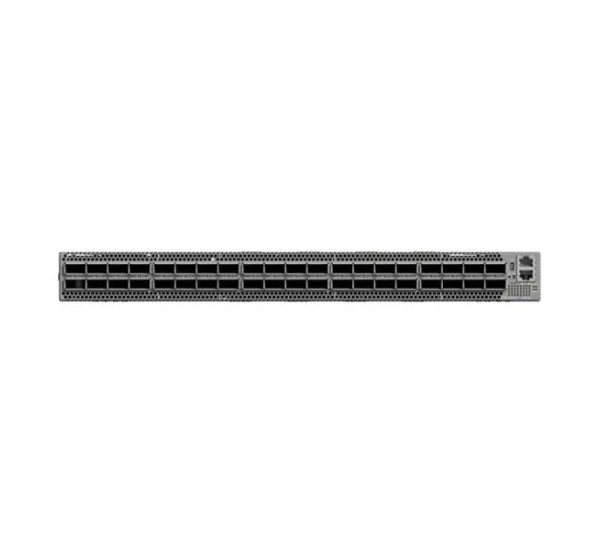

Mellanox MQM8700-HS2R Network Switch

Mellanox MQM8700-HS2R Network Switch

Specification

Specification	Details
Model	Mellanox MQM8700-HS2R
Ports	40 x HDR 200 Gbps InfiniBand QSFP56
Switching Capacity	16 Tbps non-blocking
Port-to-Port Latency	Less than 90 nanoseconds
Redundancy	- 1+1 redundant, hot-swappable power supplies - N+1 redundant, hot-swappable fans
Airflow	Power-to-Cable (P2C)
Management Ports	- 1 x Gigabit Ethernet RJ-45 - 1 x Serial RS-232 - 1 x USB
Form Factor	1U rack-mountable
Dimensions (W x D x H)	42.8 cm x 59.06 cm x 4.36 cm
Weight	12.5 kg
Operating Temperature	0°C to 40°C
Operating Humidity	Up to 85% non-condensing
Compliance	RoHS, IBTA 1.21, IBTA 1.3
Warranty	1-year limited

Description:

The Mellanox MQM8700-HS2R, part of the Quantum series, is engineered to deliver unparalleled performance in data-intensive environments. It offers 40 non-blocking HDR (High Data Rate) 200 Gbps InfiniBand ports, providing a total bidirectional bandwidth of up to 16 Tbps. This substantial bandwidth ensures that data flows seamlessly, catering to the needs of applications requiring high throughput. One of the standout features of the MQM8700-HS2R is its ultra-low port-to-port latency, clocking in at under 90 nanoseconds. Such minimal latency is crucial for HPC applications and real-time data processing tasks, where even microseconds can impact performance. The switch is designed with reliability and continuous operation in mind. It boasts 1+1 redundant, hot-swappable power supplies, ensuring that a power supply failure doesn't disrupt operations. Additionally, the N+1 redundant, hot-swappable fan design maintains optimal cooling, further enhancing system reliability. The Power-to-Cable (P2C) airflow design ensures efficient cooling by directing airflow from the power side to the cable side.

Key Features:

High Bandwidth and Low Latency: Supports 200Gb/s per port with ultra-low latency, ideal for data-intensive applications. Scalability: Up to 40 ports of 200GbE, enabling flexible configurations and network scalability. Smart Switching Capabilities: Supports advanced features like RDMA over Converged Ethernet (RoCE) and adaptive routing. Efficient Management: Comes with advanced telemetry and network monitoring tools to optimize performance. Energy Efficiency: Uses low power consumption technology to reduce operational costs. Robust Reliability: Hot-swappable power supplies and fans ensure continuous uptime and easy maintenance.

Where It Can Be Used:

Data Centers: For high-speed data transfer and efficient workload management. High-Performance Computing (HPC): Ideal for AI/ML workloads and complex computations. Cloud Environments: Supports cloud-native workloads and multi-tenant networks. Telecommunications: Ensures low latency and high throughput for communication networks. Enterprise Networks: Provides robust connectivity for large-scale enterprise operations.

Installation Steps:

Unpacking: Carefully unbox and inspect the switch for any physical damage. Rack Mounting: Secure the switch into a standard 19-inch rack using the provided mounting brackets. Power Connection: Plug in the hot-swappable power supplies and connect to a reliable power source. Cabling: Connect the Ethernet or fiber optic cables to the appropriate ports. Use compatible transceivers as needed. Configuration: Connect to the management port using a console cable. Access the CLI or web-based interface. Set up IP configurations, VLANs, and routing protocols as required. Testing and Monitoring: Run diagnostics to check connectivity and performance. Monitor the network through built-in telemetry features. Final Check: Ensure stability and performance before integrating into the live environment.

User Experience:

Users praise the Mellanox MQM8700-HS2R for its: High Performance: Exceptional throughput and low latency for data-heavy operations. Ease of Management: Simple and intuitive configuration through both CLI and web UI. Reliability: Minimal downtime with hot-swappable components. Cost Efficiency: Energy-saving features reduce operational expenses.

Why Choose Mellanox MQM8700-HS2R Network Switch:

Performance: Superior speed and low latency optimize critical applications. Flexibility: Suitable for a wide range of environments, from HPC to cloud computing. Reliability: Built for continuous operation with resilient components. Advanced Features: Supports next-gen networking protocols and intelligent routing. Industry Proven: Widely used and trusted in high-demand data environments.

Buy Mellanox MQM8700-HS2R Network Switch from Datacom BD

Get the original Mellanox MQM8700-HS2R Network Switch in Bangladesh from Datacom BD. We offer a wide range of the latest Mellanox Network Switch at competitive prices. Order online or visit our office to get yours at the best price. This Mellanox MQM8700-HS2R Network Switch comes with a 1-year warranty.

Get in Touch with Datacom Technologies (BD)

? Call/WhatsApp: 01748173213 ✉ Email: sales@datacomtechbd.com | datacomtechnologiesbd@gmail.com

What is the price of Mellanox MQM8700-HS2R Network Switch in Bangladesh?

The latest price of Mellanox MQM8700-HS2R Network Switch in Bangladesh starts from Taka 730,000 - 945,000 Taka (Estimated), depending on model, capacity and specification. you can buy the original Juniper Ethernet Switch at the best price from our website or visit our office.
