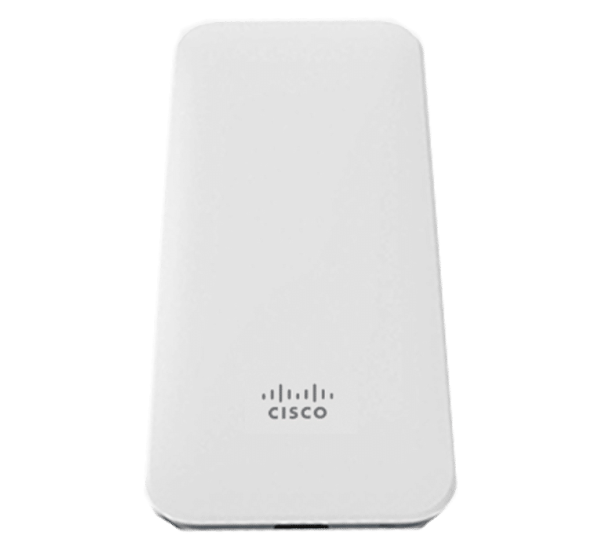

Cisco Meraki MR70 Outdoor Wi-Fi Access Point
The Cisco Meraki MR70 is a rugged outdoor wireless access point designed to provide reliable enterprise Wi-Fi connectivity in demanding outdoor environments. It supports dual-band 2.4 GHz and 5 GHz wireless networking with 2x2 MIMO and is built for weather-resistant deployments.
The MR70 combines enterprise-grade wireless performance with Cisco Meraki cloud management, integrated security monitoring and RF analytics. Its rugged enclosure makes it suitable for outdoor campuses, industrial facilities, hospitality areas, warehouses and other environments where dependable outdoor Wi-Fi is required.
Cisco Meraki MR70 Key Features
- Dual-band 802.11ac Wave 2 wireless access point
- 2x2 MIMO on 2.4 GHz and 5 GHz client-serving radios
- Up to 1.3 Gbps aggregate maximum frame rate
- Up to 400 Mbps on 2.4 GHz and 867 Mbps on 5 GHz
- Dedicated radio for wireless security and RF analytics
- Integrated Bluetooth Low Energy capabilities
- External antenna connectivity for flexible RF deployment
- Rugged outdoor enclosure designed for harsh environments
- Gigabit Ethernet connectivity
- Power over Ethernet support
- Cloud-managed through Cisco Meraki Dashboard
- Designed for enterprise outdoor wireless deployments
Cisco Meraki MR70 Technical Specifications
| Specification |
Details |
| Brand |
Cisco Meraki |
| Model |
MR70 |
| Wireless Standard |
IEEE 802.11ac Wave 2 |
| Deployment |
Outdoor Access Point |
| Client Radios |
2.4 GHz and 5 GHz |
| Radio MIMO |
2x2 MIMO |
| 2.4 GHz Maximum Rate |
Up to 400 Mbps |
| 5 GHz Maximum Rate |
Up to 867 Mbps |
| Aggregate Frame Rate |
Up to 1.3 Gbps |
| Security/RF Radio |
Dedicated wireless security and RF analytics radio |
| Bluetooth |
Integrated Bluetooth Low Energy |
| Antennas |
External antenna architecture |
| Ethernet |
1 × Gigabit Ethernet RJ45 |
| Power |
Power over Ethernet |
| Wireless Technologies |
MU-MIMO, beamforming and advanced RF management |
| Management |
Cisco Meraki Cloud Dashboard |
| Deployment Type |
Outdoor enterprise wireless |
MR70 Wireless Performance
The MR70 provides simultaneous 2.4 GHz and 5 GHz wireless connectivity using 2x2 MIMO radios. The 5 GHz radio supports up to 867 Mbps while the 2.4 GHz radio supports up to 400 Mbps, providing an aggregate maximum frame rate of approximately 1.3 Gbps.
802.11ac Wave 2 Technology
802.11ac Wave 2 technology provides improved wireless performance for compatible client devices. MU-MIMO and beamforming help improve spectrum utilization and wireless efficiency when serving multiple clients.
Rugged Outdoor Design
The Cisco Meraki MR70 is designed specifically for outdoor wireless deployments. Its rugged construction provides protection against environmental exposure, making it suitable for outdoor campuses, industrial locations, hospitality properties and other demanding installations.
External Antenna Connectivity
The MR70 uses an external antenna architecture, allowing wireless engineers to select suitable antennas according to coverage requirements, mounting location and RF design. Antenna selection should be based on Cisco Meraki compatibility and the intended deployment environment.
Wireless Security and RF Monitoring
The MR70 includes dedicated wireless security and RF monitoring capabilities. This allows the system to analyze the RF environment and identify wireless threats or interference while maintaining client-serving wireless connectivity.
Bluetooth Low Energy
Integrated Bluetooth Low Energy functionality supports beaconing and device scanning for supported location-aware and IoT applications within the Cisco Meraki ecosystem.
Cisco Meraki Cloud Management
The MR70 is centrally managed through the Cisco Meraki Dashboard. Administrators can configure, monitor and troubleshoot the access point remotely while managing wireless policies and security settings through a cloud-based interface.
MR70 Security Features
- Enterprise wireless security
- 802.1X authentication support
- Wireless intrusion detection and prevention
- Rogue access point detection
- Guest access and client isolation
- RF spectrum monitoring
- Application-aware traffic management
- Centralized cloud-based administration
Cisco Meraki MR70 Applications
- Outdoor enterprise campuses
- Industrial facilities
- Warehouses and logistics areas
- Hotels and hospitality properties
- Retail and commercial outdoor spaces
- Schools and university campuses
- Outdoor workspaces
- Public and municipal wireless networks
- Outdoor IoT and location-aware applications
Compatibility and Deployment
The MR70 should be deployed with compatible Cisco Meraki antennas, PoE infrastructure and Meraki cloud management services. Network administrators should verify antenna selection, mounting requirements, PoE specifications and Meraki licensing before installation.
Cisco Meraki MR70 Price in Bangladesh
The Cisco Meraki MR70 price in Bangladesh can vary depending on configuration, antenna requirements, licensing, warranty and supply conditions. Contact Datacom Technologies (BD) for the latest price, availability and deployment guidance.
Why Choose Cisco Meraki MR70?
- Reliable dual-band enterprise wireless connectivity
- 802.11ac Wave 2 technology
- 2x2 MIMO client-serving radios
- Up to 1.3 Gbps aggregate wireless frame rate
- Rugged design for outdoor deployment
- External antenna flexibility
- Integrated Bluetooth Low Energy capabilities
- Dedicated RF and wireless security monitoring
- Centralized Cisco Meraki cloud management
Buy Cisco Meraki MR70 in Bangladesh
Looking for the Cisco Meraki MR70 Outdoor Wi-Fi Access Point in Bangladesh? Contact Datacom Technologies (BD) for pricing, antenna selection, licensing information, configuration assistance and enterprise wireless networking solutions.
