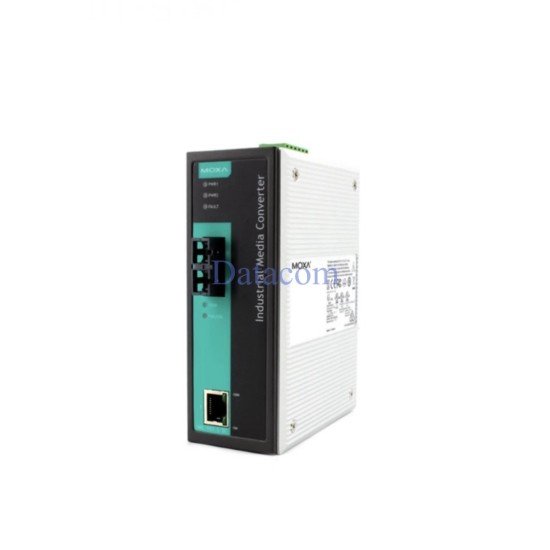

MOXA IMC-101-S-SC-T Ethernet-to-Fiber Media Converter – Industrial Grade Network Solution
The MOXA IMC-101-S-SC-T Ethernet-to-Fiber Media Converter is a rugged industrial networking device designed to convert 10/100BaseT(X) Ethernet signals into 100BaseFX fiber optic signals. It is widely used in industrial automation, surveillance systems, transportation networks, and power plants where stable long-distance communication is required.
In Bangladesh, where industrial environments often face power instability, heat, and electromagnetic interference, this media converter provides a reliable solution for extending network distance using fiber optics while maintaining strong data integrity.
Key Features of MOXA IMC-101-S-SC-T
The IMC-101-S-SC-T is built for harsh environments and continuous operation. Its main features include:
- 1 × 10/100BaseT(X) RJ45 Ethernet port
- 1 × 100BaseFX single-mode SC fiber port
- Industrial-grade metal housing for durability
- Wide operating temperature support (-40°C to 75°C)
- 1.5 kV electrical isolation protection for network safety
- Link Fault Pass-Through (LFPT) for fast fault detection
- Redundant power input support for uninterrupted operation
- Relay output alarm for power or link failure alerts
- DIN-rail mounting for easy industrial installation
These features make it highly reliable for mission-critical industrial communication systems.
Industrial Application in Bangladesh
The MOXA IMC-101-S-SC-T is highly suitable for Bangladesh’s growing industrial and infrastructure sectors. It is commonly used in:
- Factory automation and production lines
- CCTV and security surveillance systems
- Railway and transport monitoring systems
- Power plant and energy distribution networks
- Smart industrial IoT systems
- Remote building-to-building network connectivity
In environments like Dhaka EPZ, Gazipur industrial zones, and energy plants, this device ensures stable fiber connectivity where copper Ethernet cannot perform efficiently over long distances.
Why Choose MOXA IMC-101-S-SC-T?
Choosing this industrial media converter offers several advantages:
- Extends Ethernet network up to long fiber distances
- Reduces signal loss and electromagnetic interference
- Ensures stable communication in harsh environments
- Low maintenance with long operational lifespan
- Ideal for upgrading legacy copper networks to fiber
- Trusted industrial brand for mission-critical systems
This makes it a cost-effective and reliable solution for industrial networking in Bangladesh.
Performance and Reliability
Unlike standard commercial media converters, the MOXA IMC-101-S-SC-T is designed for 24/7 continuous operation. It is tested for vibration, shock, humidity, and temperature extremes. Its rugged design ensures uninterrupted performance even in unstable electrical and environmental conditions commonly found in industrial areas.
The fiber-to-Ethernet conversion ensures high-speed data transfer while maintaining signal integrity over long distances, making it ideal for secure and real-time industrial communication.
MOXA IMC-101-S-SC-T Ethernet-to-Fiber Media Converter Specifications
| Specification | Details |
|---|
| Product Model | MOXA IMC-101-S-SC-T |
| Product Series | MOXA IMC-101 Series |
| Device Type | Industrial Ethernet-to-Fiber Media Converter |
| Conversion Type | 10/100Base-TX to 100Base-FX |
| Ethernet Port | 1 × RJ45 (10/100 Mbps, Auto MDI/MDI-X) |
| Fiber Port | 1 × 100Base-FX Single-Mode SC Connector |
| Fiber Type | Single-Mode (G.652) |
| Transmission Distance | Up to 40 km (standard model) |
| Wavelength | 1310 nm |
| Isolation Protection | 1.5 kV magnetic isolation |
| Link Features | Link Fault Pass-Through (LFP) |
| Alarm Function | Relay output for power/port failure alert |
| Protocol Support | IEEE 802.3, IEEE 802.3u |
| Input Voltage | 12 to 45 VDC |
| Power Consumption | ~200 mA @ 12–45 VDC |
| Power Protection | Overload current protection supported |
| Housing Material | Metal (industrial-grade) |
| IP Rating | IP30 |
| Mounting Type | DIN-rail mounting |
| Operating Temperature | -40°C to +75°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| EMI/EMC Standards | EN 55032, FCC Class A |
| Industrial Certifications | UL, CE, FCC, DNV |
| Safety Standards | UL 508 / UL 60950-1 |
| Shock & Vibration | IEC 60068 certified |
| MTBF | ~401,000 hours |
| Use Case | Industrial networking, factory automation, power systems, railway & transport networks |
FAQ – MOXA IMC-101-S-SC-T Ethernet-to-Fiber Media Converter
Q1: What is MOXA IMC-101-S-SC-T?
A: The MOXA IMC-101-S-SC-T is an industrial Ethernet-to-fiber media converter designed to convert 10/100Base-TX copper Ethernet to 100Base-FX single-mode fiber. It is built for industrial automation, surveillance, and harsh environment networking where long-distance fiber connectivity is required.
Q2: What is the main function of this device?
A: Its main function is to:
- Convert RJ45 Ethernet signals to fiber optic signals
- Extend network distance far beyond copper limits
- Improve noise immunity and signal stability
- Enable reliable communication over long industrial distances
Q3: What type of fiber does it support?
A: The IMC-101-S-SC-T supports:
- Single-mode fiber (SC connector)
- Long-distance transmission up to 40 km (typical model support)
- Industrial-grade optical performance for stable connectivity
Q4: Is this media converter suitable for industrial environments?
A: Yes, it is specially designed for harsh industrial conditions, featuring:
- Wide operating temperature: -40°C to +75°C
- Rugged metal housing
- DIN-rail mounting
- High EMI/EMC resistance
- Industrial safety certifications
Q5: Does it support redundancy and network protection features?
A: Yes, it includes industrial protection features such as:
- Link Fault Pass-Through (LFPT)
- Power failure alarm relay output
- Dual power input support
- Network fault detection for stability
Q6: What is Link Fault Pass-Through (LFPT)?
A: LFPT ensures that if one side of the connection fails (fiber or copper), the other side automatically detects the failure, helping prevent silent network downtime and improving troubleshooting.
Q7: What are the common applications of this MOXA converter?
A: It is widely used in:
- Factory automation networks
- Industrial control systems (SCADA)
- Power stations and utilities
- CCTV surveillance systems
- Transportation and railway communication
- Oil & gas industrial networks
Q8: What makes MOXA IMC-101 better than regular media converters?
A: Compared to cheap converters, MOXA offers:
- Industrial-grade reliability (24/7 operation)
- Extended temperature support
- Better EMI protection
- Advanced diagnostics and fault detection
- Higher durability and long lifespan
Q9: Does it require configuration?
A: No complex configuration is needed. It is a plug-and-play device, meaning it automatically converts Ethernet to fiber without software setup.
Q10: What is the power system of this device?
A: It supports:
- Wide DC input range (industrial power supply support)
- Redundant power inputs for reliability
- Relay alarm output for power or link failure
Q11: Why should businesses use fiber media converters like this?
A: Because they provide:
- Long-distance connectivity (kilometers instead of 100 meters limit)
- Better immunity to electrical noise
- Stable industrial communication
- Secure and interference-free data transmission
Q12: Where can I buy MOXA IMC-101-S-SC-T in Bangladesh?
A: You can purchase it from trusted industrial networking suppliers like Datacom Technologies BD, ensuring:
- 100% original MOXA product
- Warranty & technical support
- Industrial deployment assistance
- Competitive pricing in Bangladesh
Buy MOXA IMC-101-S-SC-T Ethernet-to-Fiber Media Converter From Datacom Technologies BD
In Bangladesh, you can get original MOXA IMC-101-S-SC-T Ethernet-to-Fiber Media Converter From Datacom. We have a large collection of latest Industrial Media Converter to purchase. Order Online Or Visit Our Office to get yours at lowest price.
