Moxa NPort 5100 – 1-Port Serial Device Server Specification Table:Specification |
Details |
|---|
| Product Series | Moxa NPort 5100 Series 1‑port Serial Device Server |
| Serial Ports | 1 × DB9 male serial port (configurable) |
| Serial Standards Supported | RS‑232, RS‑422, RS‑485 |
| Ethernet Interface | 1 × 10/100BaseT(X) (RJ45 with magnetic isolation) |
| Magnetic Isolation | 1.5 kV built‑in |
| Baud Rate | 50 bps to 921.6 kbps |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS, DTR/DSR (RS‑232); XON/XOFF |
| Serial Operation Modes | Real COM, Pair Connection, TCP Server/Client, UDP, Reverse Telnet, Ethernet Modem, Disabled |
| Network Protocols | DHCP, TCP/IP, UDP, ICMP, ARP, BOOTP, DNS, HTTP, Telnet, SNMPv1 |
| Configuration Methods | Web Console, Telnet, Serial Console, Windows Utility |
| Drivers Support | Real COM (Windows), Real TTY (Linux), Fixed TTY (macOS & Unix) |
| Power Input | Typical 12–48 VDC (varies by model) |
| Operating Temp. | Standard: 0 to 55 °C (wide temp options available) |
| Dimensions | Approx. 52 × 80 × 22 mm (w/o mounting ears) |
| Weight | ~340 g |
| Housing | Rugged metal enclosure |

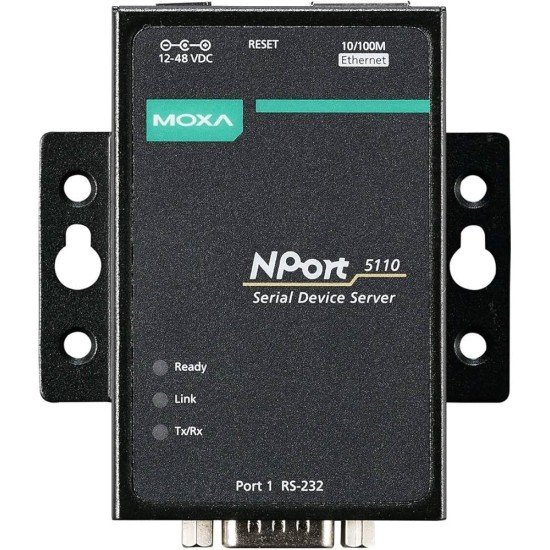

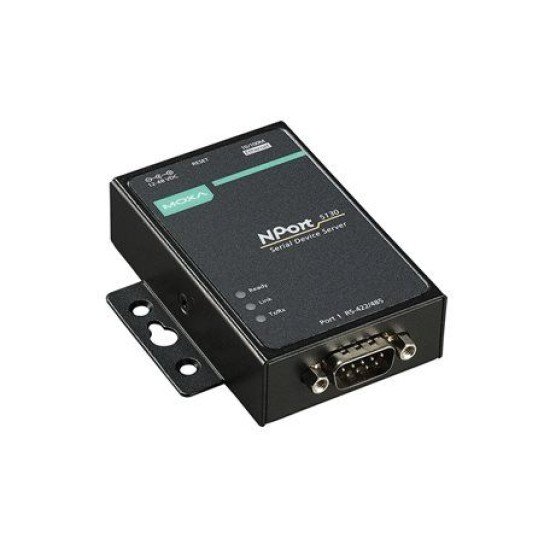

Description For Moxa NPort 5100 – 1-Port Serial Device Server
The Moxa NPort 5100 1‑Port Serial Device Server is a compact industrial communication gateway that enables traditional serial devices to be connected to modern Ethernet networks. Designed for applications requiring reliable remote access to legacy equipment, this device server supports a single serial port configurable for RS‑232, RS‑422, or RS‑485 communication standards — making it compatible with a wide range of PLCs, sensors, measurement instruments, card readers, and other industrial peripherals.
Equipped with one 10/100BaseT(X) Ethernet port featuring 1.5 kV magnetic isolation, the NPort 5100 provides robust connectivity in electrically noisy industrial environments. It supports a flexible range of serial baud rates from 50 bps up to 921.6 kbps, configurable data formats, and multiple flow control options, giving you the flexibility to match the communication settings of connected devices.
On the network side, the device supports standard TCP/IP protocols including DHCP, UDP, TCP, ICMP, BOOTP, DNS, and SNMPv1, and can be configured via Web console, Telnet, Windows utility, or serial console. Real COM/TTY drivers for Windows, Linux, and macOS allow the serial port to appear as a local virtual COM port on host systems, simplifying software integration without rewriting programs. Its rugged metal housing and optional wide‑temperature variants ensure reliable operation in industrial settings, while its small form factor and flexible mounting options make deployment easy in control cabinets or field locations.
Why Choose Moxa NPort 5100 1-Port Serial Device Server From Datacom Technologies BD
The Moxa NPort 5100 is a compact, industrial-grade 1-port serial device server that converts RS-232/422/485 serial signals to Ethernet. It is designed for industrial automation, factory control, SCADA systems, and remote device management, allowing you to integrate legacy serial devices into modern TCP/IP networks quickly and reliably.
⚡ Key Features & Benefits
- 1-Port Serial Connectivity: Supports RS-232/422/485, giving you flexible options for industrial devices.
- Serial-to-Ethernet Conversion: Easily connect legacy serial equipment to Ethernet networks without replacing devices.
- Industrial-Grade Design: Designed for 24/7 operation and harsh environmental conditions.
- Secure Remote Management: Supports Virtual COM, TCP/IP, SNMP, HTTP/HTTPS for monitoring and configuration.
- Compact and Easy Mounting: DIN-Rail or wall-mountable for control panels and cabinets.
- User-Friendly Setup: Web console and Windows utilities simplify installation and maintenance.
Industrial Applications
- Factory automation and PLC integration
- SCADA and DCS systems
- Remote serial device management
- Transportation and traffic systems
- Power and utility monitoring
Why Buy From Datacom Technologies BD
- ✔ 100% Genuine Moxa Products
- ✔ Fast Delivery Across Bangladesh
- ✔ Expert Industrial Networking Support
- ✔ Competitive Local Pricing
Datacom Technologies BD is a trusted supplier of Moxa industrial networking solutions in Bangladesh, offering authenticity, technical expertise, and professional support.
Buy Moxa NPort 5100 – 1-Port Serial Device Server at the Best Price from Datacom Technologies BD.
In Bangladesh, you can get Moxa NPort 5100 – 1-Port Serial Device Server From
Datacom Technologies BD. We have a large collection of latest
Moxa Serial Device Server to purchase. Order Online Or Visit our Office to get yours at lowest price. The Moxa NPort 5100 – 1-Port Serial Device Server comes with 1 Year warranty.
