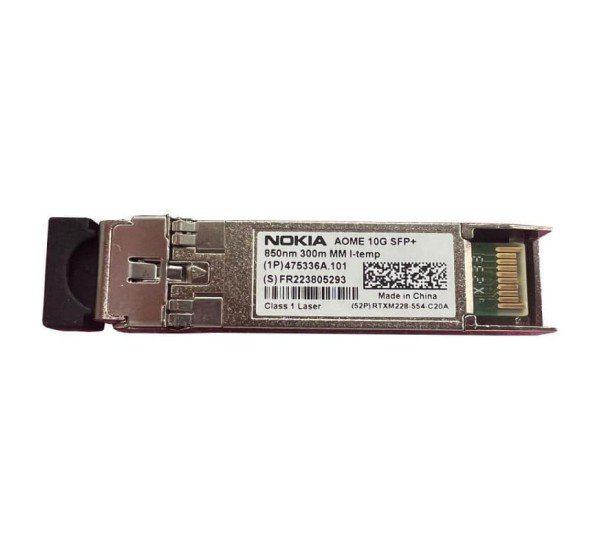

Nokia 10G SFP+ Module 850nm 300m (475336A.101)

About Nokia 475336A.101 10G SFP+ 850nm 300m Transceiver Module in Bangladesh

The Nokia 475336A.101 is a high-speed 10G SFP+ optical transceiver designed for short-distance 10 Gigabit Ethernet connectivity over multimode fiber. It operates at an 850nm wavelength and supports transmission distances of up to 300 meters using compatible multimode fiber and a duplex LC connector.

The 475336A.101 is identified as an AOME 10G SFP+ 850nm 300m MM I-temp Transceiver Module, with the associated module designation RTXM288-544-C20A. Product references specify SFP+ form factor, SR transceiver type, 10GBase speed, 300m reach, LC connector, MMF media and an operating temperature range of -40°C to +85°C. :contentReference[oaicite:1]{index=1}

Nokia 475336A.101 10G SFP+ Specifications & Features

Overview

The Nokia 475336A.101 provides 10 Gigabit Ethernet connectivity through a compact SFP+ form factor. It is designed for short-reach optical networking applications where high-speed data transmission over multimode fiber is required.

Using an 850nm optical wavelength and multimode fiber, the module supports a maximum reach of up to 300 meters according to available product specifications. :contentReference[oaicite:2]{index=2}

Buy Nokia 475336A.101 10G SFP+ Module in Bangladesh

Purchase the Nokia 475336A.101 10G SFP+ 850nm 300m transceiver module from Datacom Technologies (BD). We supply Nokia optical transceivers, SFP/SFP+ modules, enterprise networking equipment and data center connectivity products in Bangladesh with competitive pricing, technical consultation and nationwide delivery.

Key Features

• 10Gbps high-speed Ethernet connectivity
• SFP+ compact form factor
• 10GBASE-SR short-reach transceiver
• 850nm optical wavelength
• Up to 300m reach
• Multimode Fiber (MMF) support
• Duplex LC connector
• Industrial temperature range of -40°C to +85°C
• Digital Optical Monitoring (DOM)
• Hot-pluggable optical module
• Suitable for compatible Nokia networking equipment

Applications

• Nokia Networking Equipment
• 10 Gigabit Ethernet Networks
• Data Center Networks
• Enterprise Networks
• Campus Networks
• Server-to-Switch Connectivity
• Switch-to-Switch Links
• Short-Reach Fiber Links
• Telecommunication Networks
• High-Speed Network Infrastructure

10Gbps Ethernet Connectivity

The 475336A.101 provides 10 Gigabit Ethernet connectivity for network infrastructure requiring high bandwidth and low-latency optical links.

Its SFP+ form factor allows high-density deployment in compatible switches, routers and networking platforms while maintaining a compact physical footprint.

10GBASE-SR Short-Reach Optical Transmission

The module is designed for 10GBASE-SR short-reach optical applications. It operates at 850nm and is intended for multimode fiber connections.

This makes it particularly suitable for intra-building, server-room, enterprise and data center links where fiber distances are generally within the supported 300-meter range. :contentReference[oaicite:3]{index=3}

850nm Wavelength

The Nokia 475336A.101 operates at an 850nm optical wavelength. This wavelength is commonly used for short-reach multimode fiber Ethernet applications.

When deploying the module, use compatible multimode fiber and ensure that the optical infrastructure is appropriate for the required transmission distance.

300m Maximum Reach

The specified maximum reach is 300 meters. The actual supported distance depends on the multimode fiber grade, optical budget, connector quality and network equipment at both ends of the link.

For reliable deployment, both transceiver modules and the installed fiber infrastructure should be selected according to the intended distance and optical specifications.

Multimode Fiber Support

The 475336A.101 is designed for Multimode Fiber (MMF). It uses a duplex LC optical connection.

MMF is widely used for short-distance fiber links in data centers, enterprise networks, equipment rooms and campus environments.

Duplex LC Connector

The module uses a duplex LC connector, providing separate optical transmit and receive paths for the fiber link.

Ensure that the installed patch cable and fiber infrastructure use compatible LC connectors and multimode fiber.

Industrial Temperature Operation

The 475336A.101 is specified with an operating temperature range of -40°C to +85°C. The industrial-temperature designation makes it suitable for networking environments where equipment may operate outside the narrower temperature range of standard commercial modules. :contentReference[oaicite:4]{index=4}

Digital Optical Monitoring

Available specifications identify the module with DOM functionality. Digital Optical Monitoring can provide supported networking equipment with optical and operating information such as temperature, voltage and optical power parameters.

Actual monitoring availability and displayed parameters depend on the host switch, router or networking platform.

Hot-Pluggable SFP+ Design

The SFP+ form factor is designed for convenient installation and replacement in compatible networking equipment. Product references describe the 475336A.101 as a hot-pluggable optical transceiver. :contentReference[oaicite:5]{index=5}

Hot-plug operation should only be performed when supported by the specific Nokia switch, router or networking platform.

Enterprise and Data Center Networking

The Nokia 475336A.101 is suitable for short-distance 10GbE optical links within enterprise and data center environments.

• Switch-to-switch connectivity
• Server-to-switch connectivity
• Data center aggregation links
• Enterprise network uplinks
• Campus network connections
• Telecom equipment interconnection

Network Deployment

For a typical 10GbE optical link, a compatible SFP+ module is installed at each end of the connection and connected using an appropriate duplex multimode fiber cable.

Both ends should use compatible optical specifications, including wavelength, transceiver type, fiber type and supported transmission distance.

Nokia 475336A.101 vs 10GBASE-LR SFP+

Compatibility Considerations

The 475336A.101 should be installed only in networking equipment that supports the relevant Nokia SFP+ optical module and optical specifications.

• Compatible SFP+ port
• 10GbE / 10GBASE-SR support
• 850nm optical compatibility
• Multimode Fiber infrastructure
• Duplex LC connectors
• Supported 300m transmission distance
• Compatible host firmware and transceiver coding

Although SFP+ modules follow industry-standard form factors and MSA principles, host-device compatibility can still depend on vendor coding, firmware and platform support. Verify compatibility with the exact Nokia equipment before deployment. Product references describe the 475336A.101 as MSA compliant. :contentReference[oaicite:6]{index=6}

Benefits

• 10Gbps high-speed connectivity
• Compact SFP+ form factor
• 10GBASE-SR optical transmission
• 850nm wavelength
• Up to 300m reach over MMF
• Duplex LC connectivity
• Industrial -40°C to +85°C operating range
• DOM capability
• Hot-pluggable design
• Suitable for enterprise and data center networks

Why Buy from Datacom Technologies (BD)?

Datacom Technologies (BD) supplies Nokia optical transceivers, SFP/SFP+ modules, enterprise networking equipment and data center connectivity products in Bangladesh. Customers can receive competitive pricing, technical consultation, deployment assistance and nationwide delivery.

• Call/WhatsApp: +8801748173213
• Email: sales@datacom.com.bd
• Alternative Email: datacomtechnologiesbd@gmail.com
• Office: Tropical Center, 218, Dr. Kudroti Khuda Road, New Elephant Road, Dhaka-1205, Bangladesh

Frequently Asked Questions (FAQ)

Q1: What is the Nokia 475336A.101?
The Nokia 475336A.101 is an AOME 10G SFP+ 850nm 300m multimode fiber transceiver module.

Q2: What speed does 475336A.101 support?
It supports 10 Gigabit Ethernet / 10GBASE connectivity.

Q3: What optical wavelength does it use?
The module operates at 850nm.

Q4: What is the maximum reach?
The specified reach is up to 300 meters over compatible multimode fiber.

Q5: What fiber type does 475336A.101 use?
It is designed for Multimode Fiber (MMF).

Q6: What connector does it use?
The module uses a duplex LC connector.

Q7: Is Nokia 475336A.101 an SR or LR module?
It is an SR (Short Reach) transceiver designed for 10GBASE-SR applications.

Q8: What is the operating temperature?
The documented operating range is -40°C to +85°C.

Q9: Does 475336A.101 support DOM?
Available specifications identify the module as supporting DOM.

Q10: Is the module hot-pluggable?
The SFP+ module is designed for hot-plug installation in compatible networking equipment.

Q11: Is 475336A.101 suitable for single-mode fiber?
No. It is an 850nm SR module designed for multimode fiber. Use an appropriate single-mode transceiver for long-distance single-mode links.

Q12: Can it be used for 10GbE switch-to-switch links?
Yes, provided both networking devices support compatible 10GBASE-SR SFP+ modules and the fiber infrastructure meets the required specifications.

Q13: What is the associated module designation?
The 475336A.101 is identified with the AOME designation and associated module RTXM288-544-C20A. :contentReference[oaicite:7]{index=7}

Q14: Is Nokia 475336A.101 MSA compliant?
Available product documentation states that the transceiver complies with Multi-Source Agreement (MSA) standards. :contentReference[oaicite:8]{index=8}

Q15: Where can I buy Nokia 475336A.101 in Bangladesh?
You can contact Datacom Technologies (BD) for Nokia SFP/SFP+ transceivers and enterprise networking products with competitive pricing and nationwide delivery.
