| Category | Specification |
|---|
| Product Name | NVIDIA Jetson Orin NX 8GB Edge AI Embedded Computer (11F1E2-ONX8G) |
| AI Performance | Up to 70 TOPS (INT8) |
| GPU | NVIDIA Ampere architecture
1024 CUDA cores
32 Tensor Cores |
| Max GPU Frequency | ~765 MHz |
| CPU | 6-core Arm® Cortex®-A78AE v8.2 64-bit
1.5 MB L2 + 4 MB L3 |
| Max CPU Frequency | Up to 2.0 GHz |
| Deep Learning Accelerator | 1 × NVDLA v2.0 |
| Vision Accelerator | PVA v2.0 |
| Memory | 8 GB 128-bit LPDDR5 (102.4 GB/s) |
| Storage | Supports external NVMe (via PCIe) |
| Video Encode | 1× 4K60, 3× 4K30, 6× 1080p60, 12× 1080p30 (H.265) |
| Video Decode | 1× 8K30, 2× 4K60, 4× 4K30, 9× 1080p60, 18× 1080p30 (H.265, H.264, AV1*) |
| Camera Support | Up to 4 MIPI CSI-2 cameras (8 via virtual channels) |
| PCIe | PCIe Gen4: 1× x4 + 3× x1 |
| USB | USB 3.2 Gen2 & USB 2.0 ports (platform dependent) |
| Networking | Gigabit Ethernet |
| Display | DP 1.4a / eDP 1.4a / HDMI 2.1 (platform dependent) |
| Power Consumption | 10 W – 20 W |
| Connector | 260-pin SO-DIMM |
| Dimensions | ~69.6 × 45 mm |
| Typical Use | Edge AI, robotics, IoT, smart vision |
Product Description:

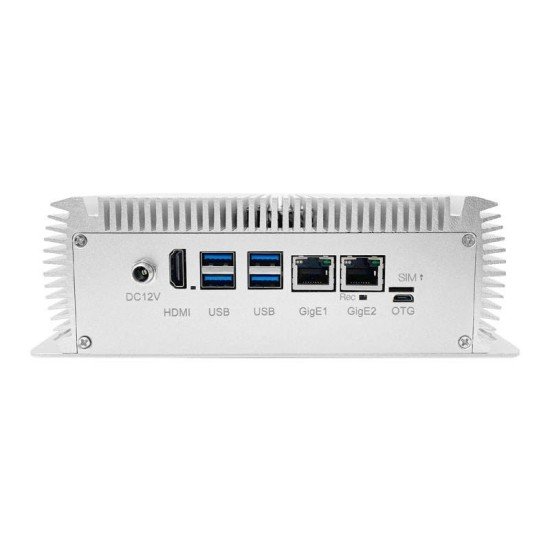

The NVIDIA Jetson Orin NX 8GB Edge AI Embedded Computer (11F1E2-ONX8G) is a high-performance AI compute module designed for advanced embedded and edge applications. At its core is NVIDIA’s Ampere-architecture GPU with 1024 CUDA cores and 32 Tensor Cores, capable of delivering up to 70 TOPS of AI inferencing performance while maintaining energy efficiency in the 10–20 W power envelope. This balance of performance and low power makes it ideal for robotics, autonomous machines, smart cameras, drones, industrial automation, and other systems that require real-time AI processing close to the data source.
The module integrates a 6-core Arm® Cortex®-A78AE CPU, 8 GB of high-speed LPDDR5 memory, and support for high-bandwidth external NVMe storage through PCIe. It also includes dedicated deep learning and vision accelerators (NVDLA v2.0 and PVA v2.0) to boost AI workloads and vision pipelines. With support for multiple video encode/decode streams and flexible camera interfaces like MIPI CSI-2, the Orin NX 8GB can handle demanding video analytics, object detection, and multimodal AI tasks.
As part of the NVIDIA Jetson ecosystem, this module benefits from rich software support via the Jetson Linux SDK, NVIDIA CUDA, TensorRT, DeepStream, and other AI frameworks, accelerating development and deployment of intelligent edge systems.
