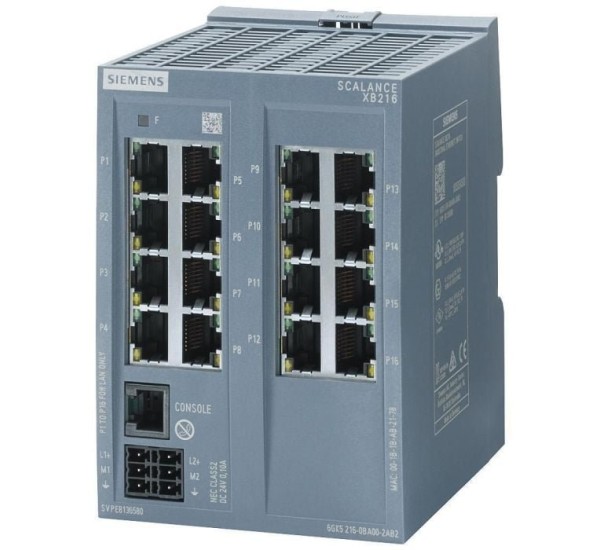

Siemens SCALANCE XB216

Key Features and Specifications

Primary Use Cases

The SCALANCE XB216 is ideally suited for:

1. PROFINET Networks: It is a very popular choice in automated manufacturing and process plants using PROFINET as the communication backbone. Its fast media redundancy (< 0.3s) ensures minimal network disruption if a cable fails.

2. Industrial Ring Topologies: The switch is frequently used to create redundant network rings, significantly increasing network availability. One switch in the ring is configured as the "redundancy manager."

3. Machine-Level Networking: Perfect for connecting all devices within a single machine or production cell, thanks to its 16 standard ports for controllers, I/O, and drives.

4. Harsh Environments: Its rugged metal housing, wide temperature range, and industrial approvals make it suitable for factories, outdoor applications, and areas with high EMI (Electromagnetic Interference).

Key Advantages

• Flexibility: The "configurable" nature means you can buy one device and set its functionality to match your needs—from a simple unmanaged switch to one with basic management and fast redundancy.

• Robustness and Reliability: Built for 24/7 operation in conditions where commercial office switches would fail.

• Seamless Siemens Integration: When used with Siemens controllers (S7-1200/1500, etc.), it can be fully configured and diagnosed within the familiar TIA Portal engineering framework. It appears as a PROFINET device, simplifying network management.

• Fast Redundancy: The SCALANCE X-IRT protocol ensures extremely fast network recovery, which is critical for real-time industrial applications.

• Future-Proof Uplinks: The two gigabit combo ports provide flexibility for high-speed fiber or copper backbone connections.

Important Considerations / What to Check When Buying

1. Exact Ordering Number: The base model is 6GK5216-0BA00-2AA3. Always verify the full order number, as there are variants (e.g., with different power connectors or for specific regions).

2. SFP Transceivers: The two gigabit combo ports have SFP slots, but the SFP modules are sold separately. You must purchase compatible SFPs (e.g., Siemens 6GK5 701-... ) for fiber optic connections.

3. Management vs. Configuration: While highly capable, it is not a "fully managed" Layer 3 switch like the SCALANCE XM-400 series. It lacks advanced routing and security features. It is best described as a "configurable" or "smart" switch, which covers 95% of industrial application needs.

4. Configuration: To change its mode from Unmanaged to Managed or to set up a ring, you need to use either the Primary Setup Tool (PST) or the integrated Web Based Management (WBM) interface.

Summary

The Siemens SCALANCE XB216 is a versatile, rugged, and highly reliable workhorse switch for industrial Ethernet networks. Its perfect blend of 16 standard ports and 2 high-speed gigabit uplinks, combined with fast redundancy and deep integration with the Siemens ecosystem, makes it a top-tier choice for machine builders and plant operators worldwide.
