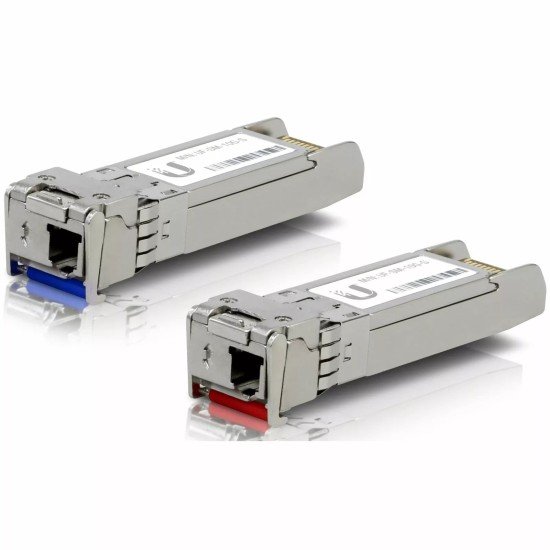

Ubiquiti UF-SM-10G Module
Specification
| Feature |
Specification |
| Model |
UF-SM-10G |
| Form Factor |
SFP+ (Small Form-Factor Pluggable Plus) |
| Connector Type |
LC Duplex |
| Wavelength |
1310 nm |
| Data Rate |
10 Gbps |
| Cable Type |
Single-Mode Fiber (SMF) |
| Maximum Distance |
Up to 10 km |
| Supported Fiber Core |
9/125 µm |
| Compatibility |
Ubiquiti EdgeSwitch, UniFi Switch, and others |
| Operating Temperature |
0°C to 70°C (32°F to 158°F) |
| DDM (Digital Monitoring) |
Yes |
| Power Consumption |
< 1.5W |
| Hot Pluggable |
Yes |
| Compliance |
MSA Compliant, RoHS |
? Description
The Ubiquiti UF-SM-10G is a high-performance, hot-pluggable SFP+ transceiver module designed for use with 10 Gigabit Ethernet applications over single-mode fiber (SMF). Tailored for Ubiquiti's own line of switches such as the EdgeSwitch and UniFi Switch, it also offers compatibility with other brands that support SFP+ modules, making it a versatile networking component.
Operating at a wavelength of 1310 nm, this transceiver provides data transmission speeds of up to 10 Gbps and supports distances of up to 10 kilometers. It utilizes an LC duplex connector and is designed to work with 9/125 µm single-mode fiber cables. The module is ideal for high-throughput, long-range networking in both enterprise and ISP environments, supporting robust and efficient data transfer across campus or metro-area networks.
One of the key features of the UF-SM-10G is its Digital Diagnostics Monitoring (DDM) capability, which enables real-time monitoring of key parameters like temperature, optical power, and voltage. Its low power consumption (less than 1.5W) ensures energy efficiency, and the module complies with MSA (Multi-Source Agreement) standards, ensuring wide compatibility. Compact, durable, and easy to install, the UF-SM-10G is an excellent solution for expanding fiber optic network infrastructure.
Key Features
- 10 Gbps Data Rate – Supports high-speed 10 Gigabit Ethernet connections.
- Single-Mode Fiber (SMF) – Designed for long-distance data transmission up to 10 km.
- LC Duplex Connector – Standard fiber connector for easy compatibility.
- Wavelength – Operates at 1310nm, optimal for single-mode use.
- Hot-Swappable – Easily plug and play without shutting down your device.
- Compatible with Ubiquiti Devices – Seamless integration with UniFi, EdgeSwitch, and other Ubiquiti hardware.
Where It Can Be Used?
- Data Centers
- Enterprise Networks
- Campus and Building Backbone Links
- ISP Infrastructure
- Point-to-Point Fiber Links
- Long-Distance Connections between Network Switches/Routers
- Essentially, it's ideal wherever high-speed, long-distance fiber connectivity is needed.
Installation Steps
- Power Off the Device (optional but recommended for safety).
- Insert the UF-SM-10G Module into the SFP+ port of your switch, router, or network card.
- Connect the LC Fiber Cable to the module.
- Connect the Other End of the fiber cable to another compatible SFP+ device.
- Power On the device and wait for link detection (LED indicator will typically light up).
- Verify Connection in your network management software (like UniFi Controller or EdgeOS).
User Experience
- Reliable and Stable Performance for demanding network environments.
- Simple Integration with Ubiquiti and third-party equipment.
- Minimal Downtime due to hot-swappability.
- Excellent Value compared to other brand-name SFP+ modules.
Why Choose the UF-SM-10G Module?
- ✅ Optimized for Ubiquiti Devices – Guaranteed compatibility and performance.
- ✅ Cost-Effective – Quality 10G solution at a lower price point.
- ✅ Long-Distance Reach – Perfect for extended fiber runs up to 10 km.
- ✅ Proven Reliability – Ubiquiti is a trusted name in networking.
- ✅ Scalable Solution – Easily upgrade networks as demands grow.
Buy Ubiquiti UF-SM-10G Module at the Best Price from Datacom BD Online
In Bangladesh, you can get original Ubiquiti UF-SM-10G Module From Datacom. We have a large collection of latest Ubiquiti Module to purchase. Order Online Or Visit our Office to get yours at lowest price. The Ubiquiti UF-SM-10G Module comes with 1-year warranty.
Get in Touch with Datacom Technologies (BD)
- ? Call/WhatsApp: 01748173213
- ✉ Email: sales@datacomtechbd.com | datacomtechnologiesbd@gmail.com
What is the price of Ubiquiti UF-SM-10G Module in Bangladesh?
The latest price of Ubiquiti UF-SM-10G Module in Bangladesh is 10,500৳. You can buy the Ubiquiti UF-SM-10G Module at best price from our website or visit our Office.
