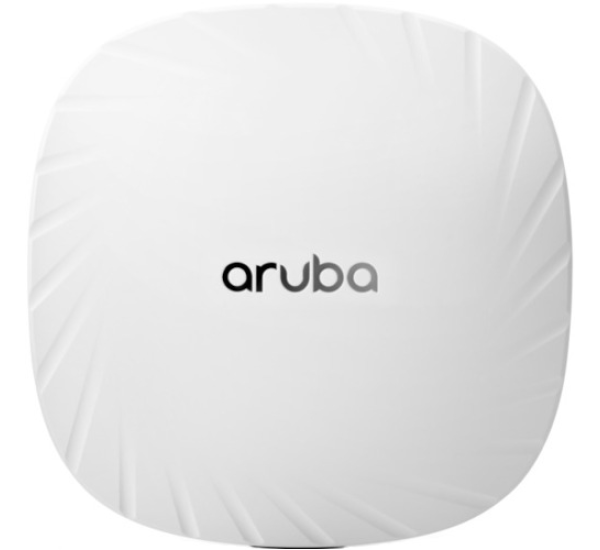

Aruba AP-505 Wi-Fi 6 Indoor Access Point
The HPE Aruba Networking AP-505 is a cost-effective enterprise Wi-Fi 6 indoor access point designed for low- and medium-density environments such as offices, schools, retail locations, and branch networks. It features dual 2x2 MIMO radios operating concurrently on the 2.4 GHz and 5 GHz bands.
The AP-505 delivers a maximum combined peak data rate of up to 1.49 Gbps, with up to 1.2 Gbps on the 5 GHz radio and up to 574 Mbps on the 2.4 GHz radio with compatible Wi-Fi 6 clients. Integrated downtilt omnidirectional antennas simplify indoor ceiling-mounted deployments.
Aruba AP-505 Wi-Fi 6 Features
- Wi-Fi 6 (IEEE 802.11ax) enterprise indoor access point
- Dual 2x2 MIMO radios for simultaneous 2.4 GHz and 5 GHz operation
- Up to 1.49 Gbps maximum combined peak data rate
- 5 GHz peak wireless data rate up to 1.2 Gbps
- 2.4 GHz peak wireless data rate up to 574 Mbps
- Two integrated dual-band downtilt omnidirectional antennas
- OFDMA for improved multi-user wireless efficiency
- Bidirectional MU-MIMO support
- Target Wake Time (TWT) for improved IoT device efficiency
- Integrated Bluetooth 5 / Zigbee IoT support
- 1GbE RJ-45 wired network interface
- USB 2.0 Type-A interface
- WPA3-Enterprise, WPA3-Personal and Enhanced Open security
Aruba AP-505 Technical Specifications
| Specification |
Details |
| Brand |
HPE Aruba Networking |
| Model |
AP-505 |
| Series |
Aruba 500 Series |
| Deployment |
Indoor |
| Wi-Fi Generation |
Wi-Fi 6 (IEEE 802.11ax) |
| Wi-Fi Radios |
Dual 2x2 MIMO |
| Frequency Bands |
2.4 GHz and 5 GHz |
| 5 GHz Data Rate |
Up to 1.2 Gbps |
| 2.4 GHz Data Rate |
Up to 574 Mbps |
| Maximum Combined Peak Data Rate |
Up to 1.49 Gbps |
| 2.4 GHz Channel Width |
20/40 MHz |
| 5 GHz Channel Width |
20/40/80 MHz |
| Wi-Fi Antennas |
2 x integrated dual-band downtilt omnidirectional antennas |
| Antenna Gain |
Up to 4.9 dBi at 2.4 GHz and 5.7 dBi at 5 GHz |
| Ethernet |
1 x 10/100/1000BASE-T RJ-45 |
| IoT Support |
IEEE 802.15.4/Zigbee or Bluetooth 5 |
| USB |
1 x USB 2.0 Type-A |
| Location Services |
802.11 FTM support |
| Wireless Technologies |
OFDMA, bidirectional MU-MIMO, TWT, beamforming, ClientMatch |
| Security |
WPA2, WPA3-Enterprise, WPA3-Personal (SAE), Enhanced Open (OWE) |
| PoE |
IEEE 802.3af/at PoE, Class 3/4 depending configuration |
| Operating System Support |
ArubaOS, Aruba Instant and supported Aruba Central deployments |
| Warranty |
Limited lifetime warranty |
Aruba AP-505 Wireless Performance
The AP-505 uses two spatial streams on both the 2.4 GHz and 5 GHz radios. With compatible Wi-Fi 6 client devices, the 5 GHz radio supports up to 1.2 Gbps, while the 2.4 GHz radio supports up to 574 Mbps. HPE specifies a maximum combined peak data rate of 1.49 Gbps.
Wi-Fi 6 technologies such as OFDMA, bidirectional MU-MIMO and Target Wake Time help the AP-505 efficiently serve multiple wireless clients while improving spectrum utilization and IoT device efficiency.
Aruba AP-505 Antenna Design
The AP-505 features two integrated dual-band downtilt omnidirectional antennas designed for 2x2 MIMO operation. The antennas are optimized for horizontal ceiling-mounted installation, making the AP-505 suitable for standard indoor office, education, retail and branch deployments.
Aruba AP-505 IoT Connectivity
The AP-505 includes an integrated IoT radio supporting Bluetooth 5 or IEEE 802.15.4/Zigbee, depending on the deployment configuration. The USB 2.0 Type-A port can also support compatible peripherals and an optional USB LTE modem.
Aruba AP-505 Applications
- Small and medium-sized enterprise offices
- Schools and educational facilities
- Retail stores
- Branch offices
- Low- and medium-density indoor deployments
- Guest wireless networks
- IoT-enabled business environments
- Aruba Central-managed wireless networks
Aruba AP-505 Compatibility
The AP-505 is part of the HPE Aruba Networking 500 Series Campus Access Points and supports ArubaOS and Aruba Instant environments with supported software versions. It can also be managed through HPE Aruba Networking Central where supported and appropriately licensed.
The AP-505 supports Wi-Fi 6 clients while maintaining interoperability with legacy 802.11a/b/g/n/ac wireless standards. The access point requires a suitable mounting kit for the intended installation, with mounting accessories sold separately.
Aruba AP-505 Price in Bangladesh
The Aruba AP-505 price in Bangladesh may vary depending on regional SKU, warranty, licensing, configuration and supply conditions. Contact Datacom Technologies (BD) for current pricing and purchasing information.
Email: sales@datacom.com.bd
Why Choose Aruba AP-505?
- Cost-effective enterprise Wi-Fi 6 solution
- Dual 2x2 MIMO for simultaneous 2.4 GHz and 5 GHz connectivity
- Up to 1.49 Gbps maximum combined peak data rate
- Integrated antennas simplify indoor installation
- OFDMA and MU-MIMO improve multi-client efficiency
- Bluetooth 5 and Zigbee support for IoT deployments
- 1GbE wired network connectivity
- WPA3 and Enhanced Open security capabilities
- Aruba Central management support
Buy Aruba AP-505 Wi-Fi 6 Indoor Access Point in Bangladesh from Datacom Technologies (BD). Contact us for current pricing, licensing, warranty and deployment assistance.
