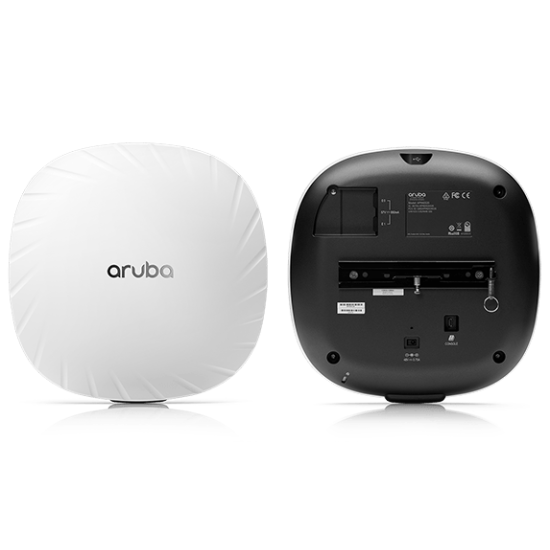

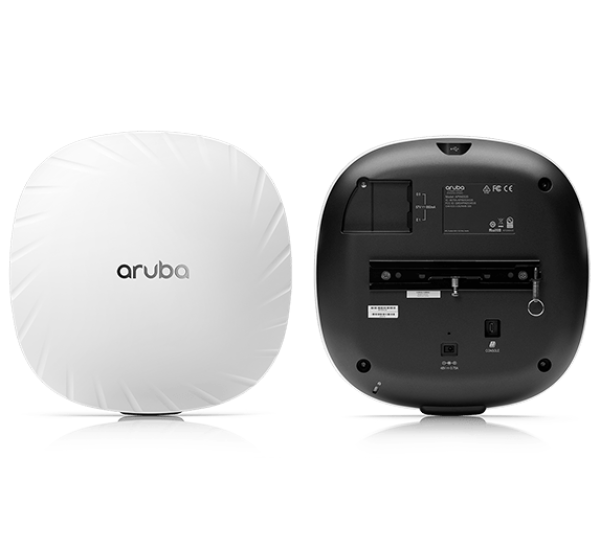

Aruba AP-535 Access Point
Aruba AP-535 Access Point provides high-performance Wi-Fi 6 connectivity for enterprise and business environments, ensuring fast and reliable network performance. Its dual-radio design with OFDMA and MU-MIMO supports multiple simultaneous users efficiently. With easy deployment and advanced security features, it delivers seamless and secure wireless access.
Aruba AP‑535 (JZ336A) — Specification Table
| Category | Specification |
|---|
| Model / SKU | Aruba AP‑535 (JZ336A) |
| Device Type | Indoor Wi‑Fi 6 Access Point |
| Wi‑Fi Standard | IEEE 802.11ax (Wi‑Fi 6), backward compatible with 802.11a/b/g/n/ac |
| Radio Configuration | Dual‑radio 4×4 MIMO on both 2.4 GHz and 5 GHz bands |
| Maximum Data Rate | Up to ~3.55 Gbps aggregate (approx. 1.15 Gbps @ 2.4 GHz + ~2.4 Gbps @ 5 GHz) |
| Frequency Bands | 2.4 GHz & 5 GHz dual‑band |
| Supported Clients | Up to ~1,024 clients per radio / ~dist 200 recommended active clients |
| BSSIDs per Radio | Up to 16 � citations |
| Ethernet Ports | 2 × HPE SmartRate RJ‑45 (100/1G/2.5G/5G) |
| PoE Support | PoE‑PD (802.3af/at/bt) with dual‑port power redundancy |
| USB | 1 × USB 2.0 Type‑A (host) |
| IoT Radios | Bluetooth 5.0 BLE & Zigbee (802.15.4) |
| Antenna | 4 integrated dual‑band downtilt omni‑directional antennas (~3.5 dBi @ 2.4 GHz, ~5.4 dBi @ 5 GHz) |
| Security | WPA3, Enhanced Open (OWE), Passpoint® Release 2 |
| Management | ArubaOS, Aruba Central, controller or cloud‑based management |
| Environmental / Mounting | Plenum rated (UL2043); ceiling or wall mountable |
| Dimensions | ~240 × 240 × 57 mm |
| Weight | ~1.27 kg |
Description for Aruba AP-535 Access Point
The Aruba AP‑535 (JZ336A) is an enterprise‑grade indoor Wi‑Fi 6 (802.11ax) access point engineered for high‑capacity, high‑performance wireless connectivity in modern office, campus, healthcare, and large‑venue environments. It features dual‑radio 4×4 MIMO on both 2.4 GHz and 5 GHz bands, delivering a combined aggregate throughput of around 3.5 Gbps, while supporting advanced Wi‑Fi 6 technologies like OFDMA, MU‑MIMO, and Target Wake Time (TWT) for improved efficiency and multi‑user performance.
Designed for dense deployments, the AP‑535 can associate up to 1,024 clients per radio with up to 16 BSSIDs per radio, making it ideal for high‑density networks. It includes dual SmartRate Ethernet ports (up to 5 Gbps) with power‑over‑Ethernet (PoE) support and link aggregation (LACP), enhancing resiliency and uplink capacity. Integrated Bluetooth 5 BLE and Zigbee radios support IoT and location‑aware services without additional hardware.
Security is robust, with WPA3, Enhanced Open (OWE), and Passpoint® support, and the AP can be centrally managed via ArubaOS, Aruba Central, or controller/cloud platforms for flexible deployment models. Built‑in features like adaptive RF management and Aruba’s ClientMatch™ optimize performance in dynamic environments. With its sleek design, plenum rating, and lifetime warranty, the Aruba AP‑535 delivers secure, scalable Wi‑Fi 6 performance for enterprise‑class wireless networks.
Why Choose Aruba AP-535 Access Point in Bangladesh
The Aruba AP-535 Access Point is designed to deliver high-performance Wi-Fi 6 connectivity for businesses and enterprises in Bangladesh. It provides fast, reliable, and secure wireless coverage, making it ideal for offices, schools, and public venues that require seamless internet access for multiple devices.
Key Benefits of Aruba AP-535
- Wi-Fi 6 Performance: Supports faster speeds, reduced latency, and increased device capacity.
- Reliable Coverage: Ensures seamless connectivity across offices, campuses, and high-density areas.
- Enterprise-Grade Security: Protects your network and connected devices from unauthorized access.
- Easy Deployment & Management: Simplified setup and centralized monitoring with Aruba management tools.
- Energy Efficient: Optimized for low power consumption without compromising performance.
Ideal Use Cases in Bangladesh
- Corporate offices and co-working spaces
- Educational institutions and campuses
- Retail stores and public Wi-Fi zones
- Hotels, restaurants, and hospitality areas
Frequently Asked Questions (FAQ) – Aruba AP‑535 Access Point
Q1: What is the Aruba AP‑535 Access Point?
A1: The Aruba AP‑535 is a high‑performance Wi‑Fi 6 (802.11ax) access point designed to deliver fast, reliable wireless connectivity for enterprise, campus, and indoor high‑density environments.
Q2: Which Wi‑Fi standard does the Aruba AP‑535 support?
A2: The Aruba AP‑535 supports the latest Wi‑Fi 6 standard (802.11ax), offering faster speeds, greater capacity, and improved efficiency compared to Wi‑Fi 5 access points.
Q3: What are the key benefits of Aruba AP‑535?
A3: Key benefits include multi‑gigabit performance, enhanced network capacity, lower latency, improved battery life for client devices, and better overall efficiency in crowded wireless environments.
Q4: Where is the Aruba AP‑535 best suited for use?
A4: It’s ideal for enterprise offices, schools, hospitals, hotels, stadiums, conference centers, and any indoor environment that demands robust Wi‑Fi coverage and performance.
Q5: Does Aruba AP‑535 support Power over Ethernet (PoE)?
A5: Yes. The Aruba AP‑535 supports PoE+ (Power over Ethernet), allowing simple installation with a single cable for both power and data.
Q6: Can the Aruba AP‑535 be centrally managed?
A6: Absolutely. You can manage the AP‑535 using Aruba Central or Aruba AirWave for centralized configuration, monitoring, troubleshooting, and analytics.
Q7: What security features does Aruba AP‑535 offer?
A7: It includes enterprise‑grade security features such as WPA3 encryption, secure guest access, rogue AP detection, and advanced intrusion protection to keep your network secure.
Q8: Is Aruba AP‑535 suitable for high‑density environments?
A8: Yes. With OFDMA, MU‑MIMO, and smart load balancing, the Aruba AP‑535 delivers consistent performance and reliability even in high‑traffic environments with many connected devices.
Q9: Is Aruba AP‑535 backward compatible with older Wi‑Fi devices?
A9: Yes. The AP‑535 is backward compatible with Wi‑Fi 5 (802.11ac) and earlier devices, ensuring a smooth transition for mixed‑device networks.
Q10: Where can I buy Aruba AP‑535 in Bangladesh?
A10: You can purchase the Aruba AP‑535 from authorized distributors like Datacom Technologies BD, with local support, warranty, and deployment services.
Why Buy from Datacom Technologies BD?
At Datacom Technologies BD, we offer genuine Aruba products with competitive pricing, nationwide delivery in Bangladesh, and expert technical support. Choosing Aruba AP-535 guarantees a secure, reliable, and future-ready Wi-Fi network.
Enhance your indoor Wi-Fi today with Aruba AP-535 from Datacom Technologies BD!
What is the price of Aruba AP-535 Access Point in Bangladesh?
The lowest price of Aruba AP-535 Access Point in Bangladesh is 65,000৳. You can buy the Aruba AP-535 AP at best price from our website or visit our Office.
