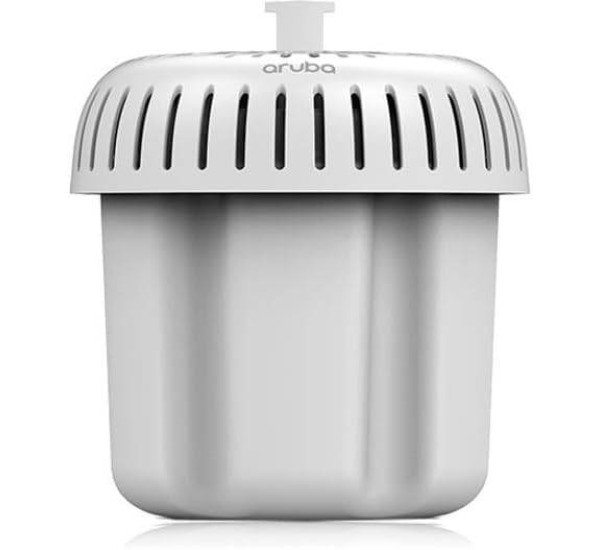

Aruba AP-575 Wi-Fi 6 Outdoor Access Point – 4x4/2x2 MIMO, 2.69 Gbps, Integrated Omni Antennas
The HPE Aruba Networking AP-575 is a rugged outdoor Wi-Fi 6 access point designed to deliver high-performance wireless connectivity in demanding outdoor environments. Part of the Aruba 570 Series, the AP-575 combines a 5 GHz 4x4 MIMO radio with a 2.4 GHz 2x2 MIMO radio and integrated omnidirectional antennas.
The AP-575 provides up to 2.69 Gbps maximum aggregate data rate and supports Wi-Fi 6 technologies including OFDMA, bidirectional MU-MIMO and Target Wake Time. Its hardened outdoor construction is designed to withstand extreme temperatures, moisture, precipitation and airborne contaminants.
With integrated Bluetooth 5 and 802.15.4/Zigbee capabilities, dual Ethernet interfaces and flexible PoE operation, the AP-575 can serve as both a high-performance wireless access point and an IoT platform for outdoor enterprise networks.
Aruba AP-575 Key Features
- Wi-Fi 6 (IEEE 802.11ax) outdoor access point
- 5 GHz 4x4 MIMO and 2.4 GHz 2x2 MIMO radios
- Up to 2.69 Gbps maximum aggregate data rate
- Integrated omnidirectional Wi-Fi antennas
- OFDMA and bidirectional MU-MIMO for improved wireless efficiency
- Target Wake Time (TWT) support for compatible devices
- Integrated Bluetooth 5 and 802.15.4/Zigbee radio
- One HPE Smart Rate Ethernet port and one Gigabit Ethernet port
- PoE-powered deployment with flexible power options
- Ruggedized enclosure for harsh outdoor environments
- Designed for temperatures from -40°C to +65°C
- Suitable for parking lots, stadiums, public venues, campuses and industrial environments
Technical Specifications
| Specification | Details |
|---|
| Brand | HPE Aruba Networking |
| Model | AP-575 |
| Series | Aruba 570 Series |
| Product Type | Outdoor Hardened Access Point |
| Wireless Standard | IEEE 802.11ax (Wi-Fi 6) |
| Radio Configuration | Dual radio: 5 GHz 4x4 MIMO + 2.4 GHz 2x2 MIMO |
| 5 GHz Radio | 4x4 MIMO |
| 2.4 GHz Radio | 2x2 MIMO |
| Maximum Aggregate Data Rate | Up to 2.69 Gbps |
| Wi-Fi Antennas | Integrated omnidirectional antennas |
| Ethernet Port E0 | HPE Smart Rate RJ-45 |
| Ethernet Port E1 | 100/1000BASE-T RJ-45 |
| Console | USB-C console interface |
| IoT Radio | Bluetooth 5 and IEEE 802.15.4/Zigbee |
| Wireless Technologies | OFDMA, bidirectional MU-MIMO, TWT |
| Power | PoE powered; dual-port or single-port operation depending on configuration |
| Maximum Power Consumption | Up to 32.0W with dual PoE; up to 26.1W with single PoE full-function operation |
| Operating Temperature | -40°C to +65°C |
| Operating Humidity | 5% to 95% non-condensing |
| Dimensions | 27 x 23 x 24 cm |
| Weight | Approximately 2.4 kg |
| Mounting | Outdoor mounting kits available |
| Warranty | Limited lifetime warranty |
High-Performance Outdoor Wi-Fi 6
The Aruba AP-575 is engineered to extend enterprise-grade Wi-Fi 6 connectivity into outdoor areas where conventional indoor access points are unsuitable. Its 5 GHz 4x4 MIMO radio and 2.4 GHz 2x2 MIMO radio provide high-capacity dual-band wireless connectivity with a maximum aggregate data rate of up to 2.69 Gbps.
4x4 and 2x2 MIMO Architecture
The AP-575 uses a 4x4 MIMO radio on 5 GHz for higher-capacity wireless environments and a 2x2 MIMO radio on 2.4 GHz for broad compatibility with legacy and IoT devices. This dual-radio architecture allows simultaneous operation across both frequency bands.
Wi-Fi 6 Efficiency
OFDMA, bidirectional MU-MIMO and Target Wake Time help improve airtime efficiency and wireless performance when multiple compatible devices share the network. Aruba ClientMatch technology can also help optimize client association and reduce sticky-client behavior.
Rugged Outdoor Design
The AP-575 is purpose-built for harsh outdoor conditions, including persistent moisture, precipitation, extreme temperatures and airborne contaminants. The platform is designed to operate from -40°C to +65°C, including full-sun deployments.
Integrated Omnidirectional Antennas
The AP-575 features integrated omnidirectional antennas, making it suitable for broad-area outdoor coverage. It is particularly useful where wireless coverage needs to extend around the access point rather than focus in a single directional sector.
Outdoor IoT Platform
Integrated Bluetooth 5 and IEEE 802.15.4/Zigbee connectivity enables the AP-575 to support compatible IoT applications without requiring a separate wireless infrastructure overlay.
Applications
- Outdoor enterprise Wi-Fi networks
- University and corporate campuses
- Parking lots and outdoor facilities
- Stadiums and public venues
- Industrial and manufacturing sites
- Warehouses and logistics environments
- Hotels and outdoor hospitality areas
- Transportation and infrastructure facilities
- Outdoor IoT deployments
Compatibility
The Aruba AP-575 is part of the HPE Aruba Networking 570 Series Outdoor Access Points and is designed for Aruba enterprise WLAN environments. Deployment can be managed through Aruba networking management platforms, including Aruba Central, subject to the applicable software release and licensing requirements.
The exact regulatory SKU, supported channels and country-specific requirements should be verified before deployment. Mounting hardware and appropriate outdoor-rated Ethernet and grounding accessories should also be selected according to the installation environment.
Aruba AP-575 Price in Bangladesh
The Aruba AP-575 price in Bangladesh may vary depending on regional SKU, warranty, mounting accessories, configuration and availability. For the latest Bangladesh price and purchasing information, contact Datacom Technologies (BD).
Contact: sales@datacom.com.bd
Why Choose Aruba AP-575?
- High-performance Wi-Fi 6 access point designed specifically for outdoor environments
- 5 GHz 4x4 MIMO combined with 2.4 GHz 2x2 MIMO
- Up to 2.69 Gbps maximum aggregate wireless data rate
- Integrated omnidirectional antennas for broad outdoor coverage
- Rugged design for extreme temperatures and harsh weather conditions
- Integrated Bluetooth 5 and Zigbee/802.15.4 IoT connectivity
- Smart Rate Ethernet connectivity for high-speed network backhaul
- Suitable for campuses, stadiums, parking areas, industrial sites and public venues
